Chain tensioners - cardinal error

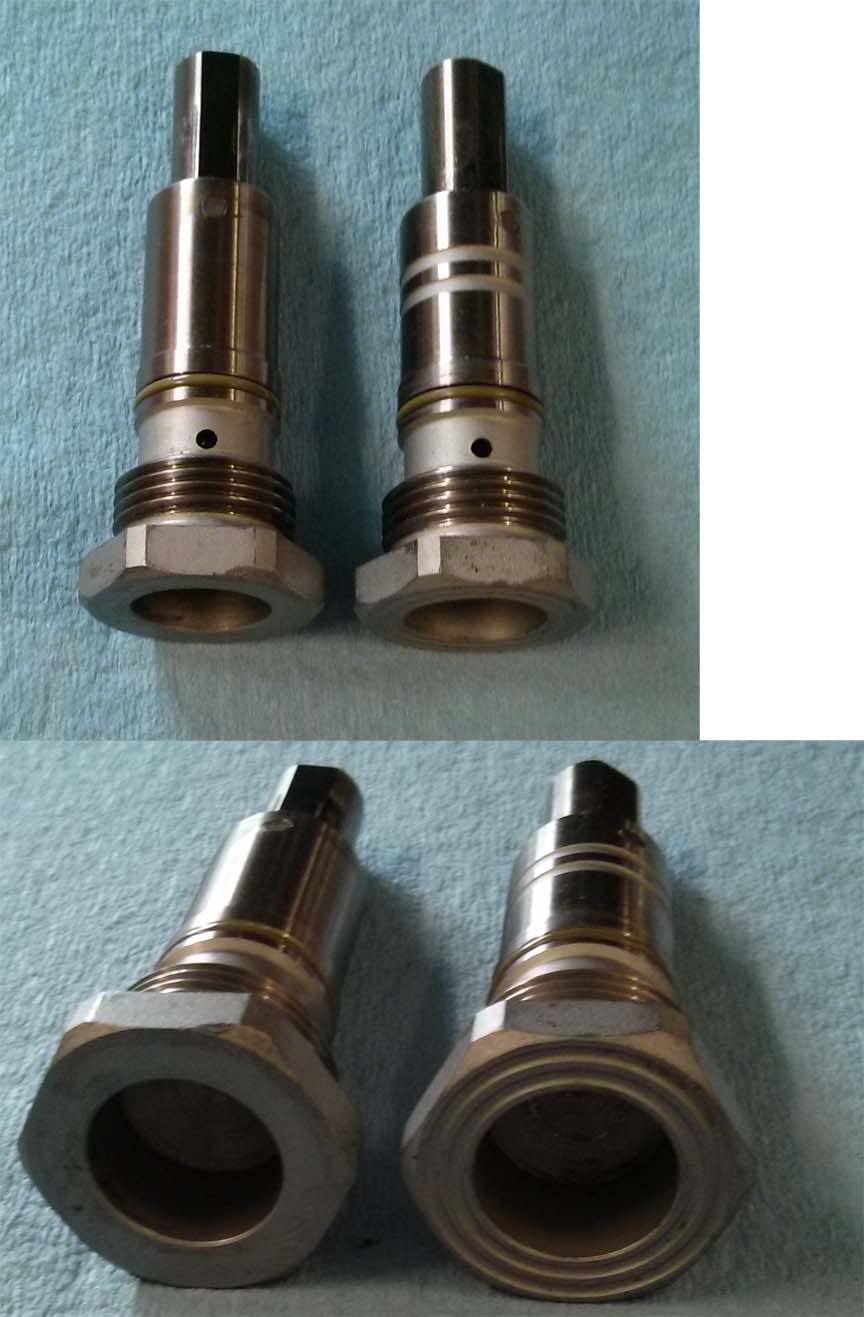

Opps, I made the cardinal error of not bagging every single part while working on the IMS bearing. I thought the chain tensioners were both the same. They are not. One of these goes on the top of the engine 2002 Boxster S 3.2L and the other goes on the bottom.

Can someone tell me which is which?

Attached Images
3_Angels is offline   Reply With Quote
Old 07-28-2014, 06:12 PM   #2
Registered User
Join Date: May 2011
Location: Miami florida
Posts: 1,591
By the way, there are 3 tensioners, not two. Each tensioner is clearly marked by the rings which are clearly visible at the end of the tensioners in you second photo. Get a manual and you can find which tensioner goes where.
Current car

2000 Boxster 2.7l red/black

Previous cars

1973 Opel Manta
1969(?) Fiat 850 Convertible
1979 Lancia Beta Coupe
1981 Alfa Romeo GTV 6
1985 Alfa Romeo Graduate
1985 Porsche 944
1989 Porsche 944
1981 Triumph TR7
1989 (?) Alfa Romeo Milano
1993 Saab 9000
san rensho is offline   Reply With Quote
Old 07-28-2014, 06:12 PM   #3
Registered User
Join Date: Feb 2014
Location: SF Bay Area
Posts: 36
It's odd that there is no ID for these, have you searched the 'install' videos?. Good luck.
mcdandc is offline   Reply With Quote
Old 07-28-2014, 07:04 PM   #4
Registered User
Join Date: May 2014
Location: S.California
Posts: 2,012
There are corresponding rings on the engine to designate which goes where.Just match the number of rings.You may have to clean up the engine a little near the hole for the tensioner.Be careful not to get any dirt in the hole.
Here is a helpful diagram:
Gelbster is offline   Reply With Quote
Old 07-28-2014, 07:57 PM   #5
Certified Boxster Addict
Join Date: Nov 2010
Location: Los Angeles
Posts: 7,616
Take a look at this thread - each one appears to be marked as to location.

Cam Pre-Tensioners for Timing
1999 996 C2 - sold - bought back - sold for more
1997 Spec Boxster BSR #254
1979 911 SC
POC Licensed DE/TT Instructor
thstone is offline   Reply With Quote
Old 07-29-2014, 07:42 AM   #6
Registered User
BYprodriver's Avatar
Join Date: Oct 2008
Location: O.C. CA
Posts: 3,413
Each of the 3 tensioners is marked with zero,1,or 2 rings & the proper location has a corresponding 1, 2, or no ring on the engine case. The tensioner with no ring goes on top for the 4-6 cylinder head, the tensioner with no ring goes on the bottom.
