Output Shaft Removal for 2002 Boxster S G86 Transmission

I was having the dreaded 2nd gear slip so my friend and I took the transmission out of the car for a closer inspection. We have the transmission out and on a bench and were able to identify the issue. The issue is in fact the synchro and possibly 2nd gear.

Now here is the question. We have been unable to get the tapered bearing out of the top of the output shaft in order to get to 2nd gear. Does anyone know how to get this tapered bearing out? I have attached a photo for your review.



AR|Groundzero is offline   Reply With Quote
Old 12-20-2011, 05:01 AM   #2
Registered User

jcb986's Avatar

Join Date: Apr 2009
Location: Orlando
Posts: 1,266
They are either pressed on are held in place by a snap ring...snap rings should be a certain points to hold assemblies in there right position. Get a diagram be fore you start disassembling it.
__________________
http://i768.photobucket.com/albums/x...6/PC120055.jpg

Old Hippie Young Heart
2000 S/3.2 Liter/Tiptronic/Boxster S Sport Package/Cruise Control/Slate Grey Metallic
Red Special Leather Interior/Red Floor Mats/Red Hand Painted Instrument Dials/Roll Bar/Windstop
Small Carbon Package/Leather Wrap Carbon Wheel/Center Console Exterior Color/Alum Carbon Shift Knob
AM/FM Radio w/CD Player & Changer/Digital Sound Package/18" Turbo Wheels/Wheel Caps w/Colored Crest
jcb986 is offline   Reply With Quote
Old 12-30-2011, 10:33 PM   #3
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
2nd Gear Fixed!

We figured it out. We had already removed the snap rings and 2 spacers. The gears needed to be pulled out using a kukko gear puller in 2 stages. In stage one, first gear and all components above the gear were removed. In stage two, second gear and all remaining components were removed. A significant amount of force was required to remove the gear puller drive screws via a pneumatic impact wrench set to 110 psi. The estimated torque required to move the bearings along the shaft is calculated at 305 foot pounds which would generate 3660 pounds of force per inch. The resultant force on the inch shaft of the gear pullers is 7,320 pounds or 3.66 tons of force.

We removed the gears and noticed that second gear was damaged. We replaced the gear and syncro and reassembled. We were sure to test the transmission on the bench before we reinstalled it. While the transmission was out we replaced the IMS, Rear Main Seal, Clutch, and CV Boots.

We are working on a complete article detailing our adventure.

In all the job took about 5 days. But my Boxster shifts like butter and has never driven better.
AR|Groundzero is offline   Reply With Quote
Old 12-30-2011, 10:52 PM   #4
Registered User

Join Date: Jul 2008
Location: San Jose, CA
Posts: 206
*thumbs up* & awaiting write-up .. not that I'll ever have the balls to attempt this myself .. but love to read about other ppl's exploits ..
nefarious986 is offline   Reply With Quote
Old 01-25-2012, 05:44 PM   #5
Registered User

Join Date: May 2006
Location: Toronto
Posts: 277
Quote:
Originally Posted by AR|Groundzero View Post

We are working on a complete article detailing our adventure.
Congrats and please do take the time to do the write-up. Where did you source the puller?
wanna986 is offline   Reply With Quote
Old 01-25-2012, 06:29 PM   #6
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Gear Puller

I got lucky and sourced the puller from an area independant mechanic shop on loan. Because of the space between the gears (see picture in the post below) you have to have a gear puller with thin feet. I used a Kukko gear puller.





Update, I have been driving the car for a month and it is absolutely perfect!

Last edited by AR|Groundzero; 01-25-2012 at 06:59 PM. Reason: Added another picture
AR|Groundzero is offline   Reply With Quote
Old 01-25-2012, 06:35 PM   #7
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Custom Tool

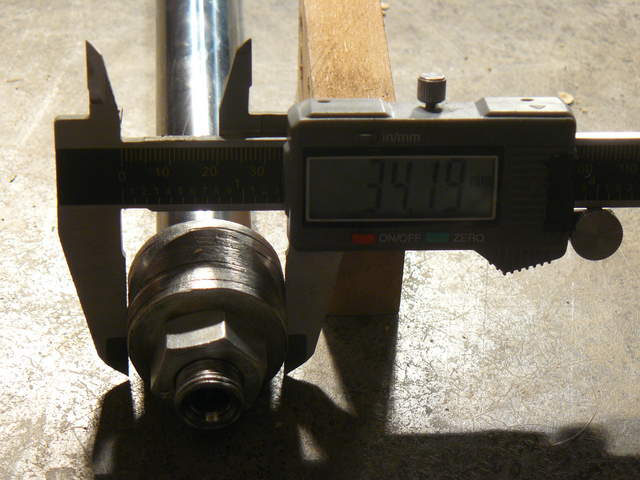

Oops, I almost forgot. Because of the hollow shaft in the Boxster S transmission, we had to create a tool to allow the puller to have somewhere to apply the downforce.







I am still working on the article. There is a lot of data so it is taking some time. In the meantime if you have any questions please ask.
AR|Groundzero is offline   Reply With Quote
Old 01-25-2012, 06:55 PM   #8
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Parts Replaced

I have had some inquiries about the parts I replaced during the project. Here is the list:

RMS
IMS
CV Boots
2nd Gear
2nd Gear Syncro
2nd Gear Selector Sleeve
Clutch
Pressure Plate
Throwout Bearing
Brake Switch
Primed and Painted the Exhaust
HID Driving Lights (Bonus)

AR|Groundzero is offline   Reply With Quote
Old 01-25-2012, 07:24 PM   #9
Registered User

Join Date: May 2006
Location: Toronto
Posts: 277
Fantastic!
wanna986 is offline   Reply With Quote
Old 01-26-2012, 04:32 PM   #10
Registered User

Join Date: May 2006
Location: Toronto
Posts: 277
Groundzero, please check your private messages.
wanna986 is offline   Reply With Quote
Old 01-26-2012, 04:49 PM   #11
Registered User

landrovered's Avatar

Join Date: Nov 2009
Location: Madison, Georgia
Posts: 1,012
Garage
Very happy to see this I am looking at doing the same on my car. If you don't mind me asking...What was the cost of the transmission parts ?
__________________
2001 Boxster S 3.6L, Zeintop
"Calling upon my years of experience, I froze at the controls." - Stirling Moss
landrovered is offline   Reply With Quote
Old 01-26-2012, 06:06 PM   #12
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Parts Cost

The transmission parts cost as follows:


Gear 996.302.942.00 $385
Shift Sleeve 996.304.061.02 $450
Syncro Sleeve 996.304.611.00 $130

Last edited by AR|Groundzero; 01-26-2012 at 06:24 PM. Reason: Forgot a Part!
AR|Groundzero is offline   Reply With Quote
Old 03-15-2012, 07:43 AM   #13
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Article Finally Done

Thank you for your patience. Here is the article. Let me know if you have any questions.

Last edited by AR|Groundzero; 03-18-2012 at 06:19 PM. Reason: Had to pull the article for now. I will keep you posted.
AR|Groundzero is offline   Reply With Quote
Old 03-15-2012, 10:47 AM   #14
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,595
Garage
Wow!

this is awesome. file saved.
my 2nd gear is fine (for now) but i'm sure some people want to know how much its going to cost them to ship their transmission to you.
Meir is offline   Reply With Quote
Old 03-15-2012, 11:47 AM   #15
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Worth the effort

lol, that is funny. It was all worth it and it is everytime I put the car in second and accelerate!

YeeHaw!
AR|Groundzero is offline   Reply With Quote
Old 03-15-2012, 06:29 PM   #16
Registered User

Join Date: May 2006
Location: Toronto
Posts: 277
Congratulations!

You've made a significant contribution to the data base!
wanna986 is offline   Reply With Quote
Old 03-15-2012, 08:13 PM   #17
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Thank you

I love to help the Boxster community. I have saved a lot of time and money from others articles.

Thanks for the encouraging words.
AR|Groundzero is offline   Reply With Quote
Old 11-13-2014, 05:13 AM   #18
Registered User

Join Date: Nov 2014
Location: dc
Posts: 1
Does anyone have a copy of the article. Rebuilding 2nd gear on a 996 and need to do the same job. Thanks!
Amille28 is offline   Reply With Quote
Old 11-13-2014, 06:33 AM   #19
Registered User

Join Date: Dec 2010
Location: Louisville
Posts: 19
Boxster Transmission Repair Documents

Thanks for reaching out. I have 20k miles on the car since the repair and it has NEVER slipped a gear and is still running as smooth as butter.

Here is a Dropbox link to all documents I used as well as an article that my friend and I put together to describe the process.

Boxster Transmission Repair Documents

Let me know if you need anything and happy repairing!
AR|Groundzero is offline   Reply With Quote
Old 11-15-2014, 11:49 AM   #20
Registered User

Join Date: May 2014
Location: S.California
Posts: 2,012
Thanks so much for putting the time and effort into publishing all this info.It was a lot of extra work for the benefit of the 996/Boxster community.As far as I know this is the only such diy guide to this important project.
Would you happen to be selling an old 944 strut part?? I need one and when I am done I'll pass it on to the next Forum member who needs it .I'll also add to your excellent write up.
I am trying the pulling with a Harbor Freight 12 ton puller.It will be interesting to see if it will fit .Certainly a little grinding will be required to fit. Yes, it was a lot cheaper than the German Kuko puller!But only if it works.
Surprised not to see the sealed bearings in your parts purchased list. I think I recall you bought the parts from Eric at Gbox?
Thanks once again for your work.
