Old 10-15-2014, 11:59 AM   #1
Registered User

Join Date: Apr 2013
Location: Springfield, Oregon
Posts: 61
LNE IMS Retrofit Sticker...where should it go?

I did the IMS Retrofit recently and I have kind of a silly question. Where should I put the serial number sticker? Door jam? Under front hood? Trunk? What is the convention on this...I don't see any recommendation on the install doc.
Polaris is offline   Reply With Quote
Old 10-15-2014, 12:13 PM   #2
Registered User

Porsche9's Avatar

Join Date: Sep 2013
Location: Chandler, AZ
Posts: 1,794

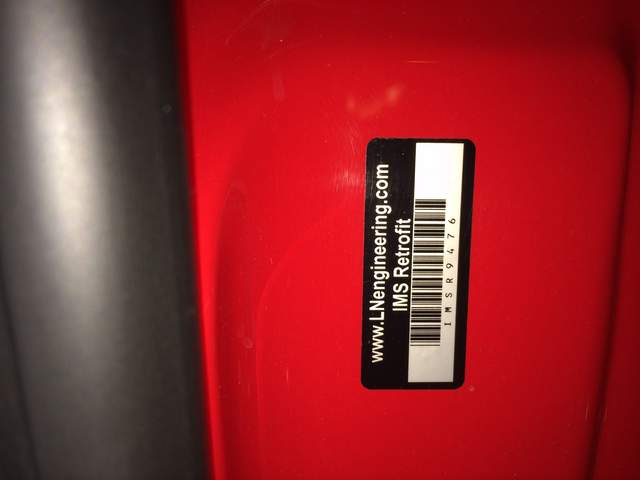

Mine was put in the driver's side door jam by the approved installer.
__________________
03 Carrera
02 Boxster S Guards Red, black interior with matching hardtop
89 Carrera 4
89 944 S2
78 911SC
Porsche9 is offline   Reply With Quote
Old 10-15-2014, 03:02 PM   #3
still plays with cars...

BoxsterSteve's Avatar

Join Date: May 2011
Location: Baden, ON, Canada
Posts: 1,069
Garage
I looked high and low...
&*#$%^, where is it? I know I had an IMSR done.
My sticker ended up on next to the emissions diagram on the underside of the rear trunk lid.
__________________
Six speed 2000 Boxster S
Arctic Silver on Metropol Blue | Arctic Silver console, spoiler frame & bumperettes | Crios mod | Technobrace | RoboTop module & modified convertible top relay for one-touch roof operation
BoxsterSteve is offline   Reply With Quote
Old 10-15-2014, 03:05 PM   #4
Registered User

BYprodriver's Avatar

Join Date: Oct 2008
Location: O.C. CA
Posts: 3,166
Garage
To avoid affixing a sticker to paint I put it on the option sticker under the front trunk lid.
__________________
2000 S Speed YellowLN 3.6L cylinders & pistons, triple row IMSB upgrade, R&R connecting rods, billet tensioner paddle,oilpump driveshaft.Heads rebuilt by F6I with new valves & springs.Cayman airbox & MAF housing, 996 intake plenum & 75mm T/B. NHP sport converters &Dansk muffler
BYprodriver is offline   Reply With Quote
Old 10-15-2014, 05:31 PM   #5
Registered User

Join Date: Apr 2013
Location: Springfield, Oregon
Posts: 61
Well crap. Three replies, three different answers.
Polaris is offline   Reply With Quote
Old 10-15-2014, 05:48 PM   #6
Registered User

Pominoz's Avatar

Join Date: Aug 2014
Location: Melbourne
Posts: 136
Quote:
Originally Posted by Polaris View Post
Well crap. Three replies, three different answers.
Make that 4.
The place that just did my IMSB stuck it in the service book, next to the stamp for the service they'd just done.
__________________
Boxster Base, 2002 Manual, Black.
LN Single Row Pro IMS retrofit.
Pominoz is offline   Reply With Quote
Old 10-15-2014, 06:01 PM   #7
Registered User

Join Date: Apr 2014
Location: DFW
Posts: 251
Remembered seeing this a while back - Jake Raby said it goes in the door jamb if done at their facility. Post 32.
http://986forum.com/forums/general-discussions/53956-close-gets-ims-save-2.html
CraigM is offline   Reply With Quote
Old 10-15-2014, 06:09 PM   #8
Registered User

Porsche9's Avatar

Join Date: Sep 2013
Location: Chandler, AZ
Posts: 1,794
As I mentioned my installer is approved and he put it in the door jam. It's also the first place he looks on any 986/996 to see if the IMSB was replace during a PPI.

__________________
03 Carrera
02 Boxster S Guards Red, black interior with matching hardtop
89 Carrera 4
89 944 S2
78 911SC
Porsche9 is offline   Reply With Quote
Old 10-16-2014, 05:26 PM   #9
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage
Well, I have replaced my IMS bearing twice… What should I do with this decal??

__________________
Jäger

300K Mile Club
Jager is offline   Reply With Quote
Old 10-16-2014, 06:43 PM   #10
Registered User

Porsche9's Avatar

Join Date: Sep 2013
Location: Chandler, AZ
Posts: 1,794
Put it on ebay.
__________________
03 Carrera
02 Boxster S Guards Red, black interior with matching hardtop
89 Carrera 4
89 944 S2
78 911SC
Porsche9 is offline   Reply With Quote
Old 10-19-2014, 07:03 AM   #11
Registered User

Allen K. Littlefield's Avatar

Join Date: Oct 2006
Location: New Paltz, NY 12561
Posts: 935
Quote:
Originally Posted by Jager View Post
Well, I have replaced my IMS bearing twice… What should I do with this decal??

Jager, was the second replacement because of failure of a LNE double row unit?
AKL
__________________
'02, Arctic Silver/Graphite Gray, 2.7, TIP, 2nd cat delete, Charlie Chan muffler,de-ambered, Braille Battery, clear tailights, painted bumperettes, clear third brake light, M030 sway bars, F shock tower braces, clear rear deck, '03 side vents. 15mm spacers fore & aft.
Allen K. Littlefield is offline   Reply With Quote
Old 10-19-2014, 11:14 AM   #12
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage
Quote:
Originally Posted by Allen K. Littlefield View Post
Jager, was the second replacement because of failure of a LNE double row unit?
AKL
No failure, just did not feel as smooth as a new bearing. I had the transmission down doing a clutch replacement and decided to check the bearing. Turned it with my fingers and it didn't feel silky smooth (as a new one), so I replaced it.

Also note that I have a single row bearing.
__________________
Jäger

300K Mile Club
Jager is offline   Reply With Quote
Old 10-21-2014, 05:32 AM   #13
Registered User

Allen K. Littlefield's Avatar

Join Date: Oct 2006
Location: New Paltz, NY 12561
Posts: 935
Quote:
Originally Posted by Jager View Post
No failure, just did not feel as smooth as a new bearing. I had the transmission down doing a clutch replacement and decided to check the bearing. Turned it with my fingers and it didn't feel silky smooth (as a new one), so I replaced it.

Also note that I have a single row bearing.
Thanks for the reply. I am going to replace with the double row in my '02 single row.


AKL
__________________
'02, Arctic Silver/Graphite Gray, 2.7, TIP, 2nd cat delete, Charlie Chan muffler,de-ambered, Braille Battery, clear tailights, painted bumperettes, clear third brake light, M030 sway bars, F shock tower braces, clear rear deck, '03 side vents. 15mm spacers fore & aft.
Allen K. Littlefield is offline   Reply With Quote
Old 10-22-2014, 05:49 AM   #14
Registered User

Join Date: Oct 2007
Location: Midwest
Posts: 1,724
When I performed the install several years back Jake told me to place the sticker on the inside of the driver's door jamb just above the striker bar.

coreseller is offline   Reply With Quote
Old 10-30-2014, 03:19 PM   #15
Registered User

rp17's Avatar

Join Date: Apr 2011
Location: DFW
Posts: 713
I kept my bearing. Whats the point? Resale value?(Sorry Jake) I kept mine and fiddle with it from time to time. Eventually I will crack it open or I put it on ebay. Until then it sits on my desk.
__________________
What we're dealing with here is a complete lack of respect for the law.
rp17 is offline   Reply With Quote
Old 10-30-2014, 06:17 PM   #16
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by coreseller View Post
When I performed the install several years back Jake told me to place the sticker on the inside of the driver's door jamb just above the striker bar.


That one was a long time ago, back when we sold IMS bearing kits to the public, not just installing them.

As far as keeping your old bearing:
Doing this means you have no warranty. The reason the old bearing is to be returned is so it can be inspected and entered into a data base reflecting the IMSR serial # that you were issued. This is so LN can ensure that your old bearing was not failing, because if it was, your retrofit bearing will also likely fail, unless extreme measures are taken.
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 10-30-2014, 08:00 PM   #17
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,276
I did mine in the early days; not sure there was a sticker.....believe it or not dual rows were not good as there was no extraction method!! I don't have a sticker and didn't return the bearing!! This must have program put in place later?

I can remember experienced porsche service personnel saying "don't worry about it unless you are super aggressive with it".
__________________
00 986 S....with a few tweaks
jaykay is offline   Reply With Quote
Old 10-31-2014, 07:07 AM   #18
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by jaykay View Post
I did mine in the early days; not sure there was a sticker.....believe it or not dual rows were not good as there was no extraction method!! I don't have a sticker and didn't return the bearing!! This must have program put in place later?
There has always been an extraction method. I released the extraction procedure BEFORE the very first IMSR kit was sold.

The bearing return policy has always been the same, its part of the return policy and has been since day #1.

Quote:
I can remember experienced porsche service personnel saying "don't worry about it unless you are super aggressive with it".
Yeah, thats back when I was told that the bearing was impossible to extract, and that it wasn't serviceable and that I was lying when I said I had developed the extractor and retrofit procedure.

Yes, those were the days...
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 10-31-2014, 08:21 AM   #19
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,276
I was speaking of dual row versus single row extraction. Early on, according my information, there wasn't a known extraction method for the dual. Yes of course there was no kit yet either
__________________
00 986 S....with a few tweaks

Last edited by jaykay; 10-31-2014 at 08:24 AM.
jaykay is offline   Reply With Quote
Old 10-31-2014, 06:34 PM   #20
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by jaykay View Post
I was speaking of dual row versus single row extraction. Early on, according my information, there wasn't a known extraction method for the dual. Yes of course there was no kit yet either
Again, my procedure was the first for the dual row, and the RIMSEXT_01 was also the first extraction tool that was developed, and from day one it was designed to extract the dual row bearing.

The procedure and RIMSEXT_01 extractor tools were both developed before the first IMSR bearings were commercially released to the market.
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
