3.4l 996 intake manifold on 3.2S motor

Gang,
looking to install a 3.4 intake manifold in my 3.2 equipped boxster.

I have the 987 airbox and maf, 996 throttle body, and customer intake tube already, so I'd like to put on the 3.4 manifolds. Also have 987 engine cover for more clearance.

I think I understand the necessary steps, but correct me if I'm wrong:

1. Aluminum lower runners required
2. Plastic upper plenums
3. Fuel rail from a 996. Is this correct?

install:

1. Drill and tap holes in heads
2. run shifter cables under plenums
3. ??????

Any other tips or parts necessary?

thanks.
Quadcammer is offline   Reply With Quote
Old 11-06-2018, 09:58 AM   #2
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,824
i looked into this and i *think* that you may have to fabricate a braze-on or somesuch out of JB weld to create a place to drill and tap for one of the spots required to attach the lower runners to the head.

and yes, fuel rail has to change - mounting points are different. you could fabricate new tabs on the rail if you are ballsy enough to weld a fuel line, but note that you have to be bang-on as it is only the two fuel rail fasteners per side that keep the injectors in.
The Radium King is offline   Reply With Quote
Old 11-06-2018, 10:25 AM   #3
Registered User

Join Date: Dec 2016
Location: Clifton, NJ
Posts: 653
thanks. I don't mind getting new fuel rails from a 996. I'm assuming they just bolt on in reverse?

never heard the jb weld sitch on one of the intake runners though.
Quadcammer is offline   Reply With Quote
Old 11-06-2018, 11:28 AM   #4
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,824
well, the fuel lines run over the transmission end in a 996, and if you put a 996 intake on a 986 you have to reverse the whole intake (to get the TB over the transmission end) so the fuel lines will be in the right place when all is said and done. you'll have to figure out how to adapt the 986 fuel lines to the 996 rails - porsche looks to use 1-time barbed fittings, but i've read that with heat you can get them off with no damage and then just hose clamp them when reinstalling (perhaps with some fuel-rated thread sealant?). you'll also have to extend your brake booster vacuum line to the other end of the engine.

you'll have to take a hard look at your head; here's a good pic of a 996 manifold; i think you'll find that there is no spot on the head to drill and tap in at least one of the required locations:


https://www.ebay.com/itm/99-05-PORSCHE-911-996-CARRERA-LOWER-INTAKE-MANIFOLD-ADAPTER-PLENUM-9961101017R-/291880861094
The Radium King is offline   Reply With Quote
Old 11-07-2018, 03:55 AM   #5
Registered User

itsnotanova's Avatar

Join Date: Jul 2013
Location: Bastrop, Tx
Posts: 2,122
I've put a 3.4 intake on a 3.2. I believe all I had to do was drill and tap the heads. I used the 3.4 fuel system but had to use the 3.2 boxster wire harness. I went over it on my build thread.
Woody's build thread
__________________
Woody
itsnotanova is offline   Reply With Quote
Old 11-07-2018, 05:49 AM   #6
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,824
i stand corrected! post 243.
The Radium King is offline   Reply With Quote
Old 11-07-2018, 10:09 AM   #7
Registered User

Join Date: Dec 2016
Location: Clifton, NJ
Posts: 653
woody, awesome, thanks. how did you run the shifter cables and were there any issues getting everything to fit?

thanks.
Quadcammer is offline   Reply With Quote
Old 11-07-2018, 12:11 PM   #8
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,249
Would Cayman 3.4 runners be more easily adapted?
__________________
00 986 S....with a few tweaks
jaykay is offline   Reply With Quote
Old 11-07-2018, 05:50 PM   #9
Registered User

itsnotanova's Avatar

Join Date: Jul 2013
Location: Bastrop, Tx
Posts: 2,122
Quote:
Originally Posted by Quadcammer View Post
woody, awesome, thanks. how did you run the shifter cables and were there any issues getting everything to fit?

thanks.
I trimmed a little bit of the upper engine cover area in the back so the intake tube wouldn't rub and a little in the front to clear the intake. Other people said they didn't have to do any trimming but did have to drop the motor an inch or so. I tried to run the cables under the intake but that didn't work for me. I can't remember why. I have them going over the top now with no real problems. I wish I had gotten the 3.2 dyno'd with that 996 intake, custom exhaust and 996 ROW tune. I bet it would be putting out the same HP as the 3.4 I have in it now.
__________________
Woody
itsnotanova is offline   Reply With Quote
Old 11-08-2018, 04:07 AM   #10
Registered User

Join Date: Jun 2018
Location: Schertz
Posts: 17
I also have the cables over the top of the intake but on a 3.4L. I currently have a hard top on but it’s coming out off soon when my suspension shows up I can grab pictures of the routing if needed. This is a 3.4 swap like woodys.
Shawn
__________________
-1999 Boxster 3.4L m96 swap/ Coilovers/ GT3 arms/ adjustable rear toe links/ Tarret rear bar, boxster s front bar/ 17 Fikse wheels- (Daily fun car)
-2002 911 Turbo -JRZ RS Pro coilovers/ GMG swaybars /Full RSS control arms and toe kit/ Billet k16s/ Markski turbo inlet pipe, tune, and intercoolers/ GT3 seats w/ red GT3 belts/ CCW classics
Sveach756 is offline   Reply With Quote
Old 11-08-2018, 04:42 AM   #11
Registered User

Join Date: Dec 2016
Location: Clifton, NJ
Posts: 653
sounds like over the top it is. If I have to lower the motor a bit, that should not be an issue when combined with the 987 engine cover.

thanks guys.
Quadcammer is offline   Reply With Quote
Old 11-08-2018, 06:04 AM   #12
Registered User

Join Date: Dec 2016
Location: Clifton, NJ
Posts: 653
Can you guys discuss what modifications were necessary to the fuel system and or 996 fuel rail to make this work?

thanks.
Quadcammer is offline   Reply With Quote
Old 11-12-2018, 04:57 PM   #13
Rennzenn

j.fro's Avatar

Join Date: Feb 2005
Location: Virginia
Posts: 1,355
Garage
Very interesting! Does anyone have power numbers or Dyno charts showing gains from using the 996 manifold on the 3.2? I'm really interested to see just how much power could be made with our 3.2. Given that the 2.0 in the 1967 911R & 904 made 220, why can't we get 350 from the 986 S motor?
__________________
Rennzenn
Jfro@rennzenn.com
j.fro is offline   Reply With Quote
Old 11-13-2018, 09:33 AM   #14
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,249
Quote:
Originally Posted by j.fro View Post
Very interesting! Does anyone have power numbers or Dyno charts showing gains from using the 996 manifold on the 3.2? I'm really interested to see just how much power could be made with our 3.2. Given that the 2.0 in the 1967 911R & 904 made 220, why can't we get 350 from the 986 S motor?
My guess is the 3.2 heads won't flow enough to get it.....so intake, exhaust and significant head work are required. Porting, camshafts, valves / springs, cam timing. This restriction was of course put in place by design. I believe one can approach 300 with bolt ons but I have not heard of any being able to break through

Woody posted some surprisingly good dyno results from bolt ons and ECU tunning. I would link it if I could find it.

If we get into the heads and start doing it, how is the 3.2's propensity for head cracking mitigated? One could asks this for a total engine build as well.

I feel your frustration ......I remember track days where I just couldn't shake old 993 on my tail...
__________________
00 986 S....with a few tweaks

Last edited by jaykay; 11-13-2018 at 09:37 AM.
jaykay is offline   Reply With Quote
Old 11-13-2018, 09:52 AM   #15
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,824
well, the size of runners on the 996 plenum doesn't seem to be bigger than that on the 3.2, i think the difference is length - the 996 units are longer, so you will see more of a venturi effect and better cylinder fill at lower rpms. they may actually reduce max hp a bit as the increased length would be seen as a restriction at wot, but raise the overall torque curve up a bit. and more area under the curve is the goal, not necessarily the max number.

if you think about it from a porsche design point of view, the only reason the boxster runners are shorter is so they could fit the engine in the car.
The Radium King is offline   Reply With Quote
Old 11-13-2018, 02:33 PM   #16
Registered User

BYprodriver's Avatar

Join Date: Oct 2008
Location: O.C. CA
Posts: 3,096
Garage
Quote:
Originally Posted by jaykay View Post
My guess is the 3.2 heads won't flow enough to get it.....so intake, exhaust and significant head work are required. Porting, camshafts, valves / springs, cam timing. This restriction was of course put in place by design. I believe one can approach 300 with bolt ons but I have not heard of any being able to break through

Woody posted some surprisingly good dyno results from bolt ons and ECU tunning. I would link it if I could find it.

If we get into the heads and start doing it, how is the 3.2's propensity for head cracking mitigated? One could asks this for a total engine build as well.

I feel your frustration ......I remember track days where I just couldn't shake old 993 on my tail...

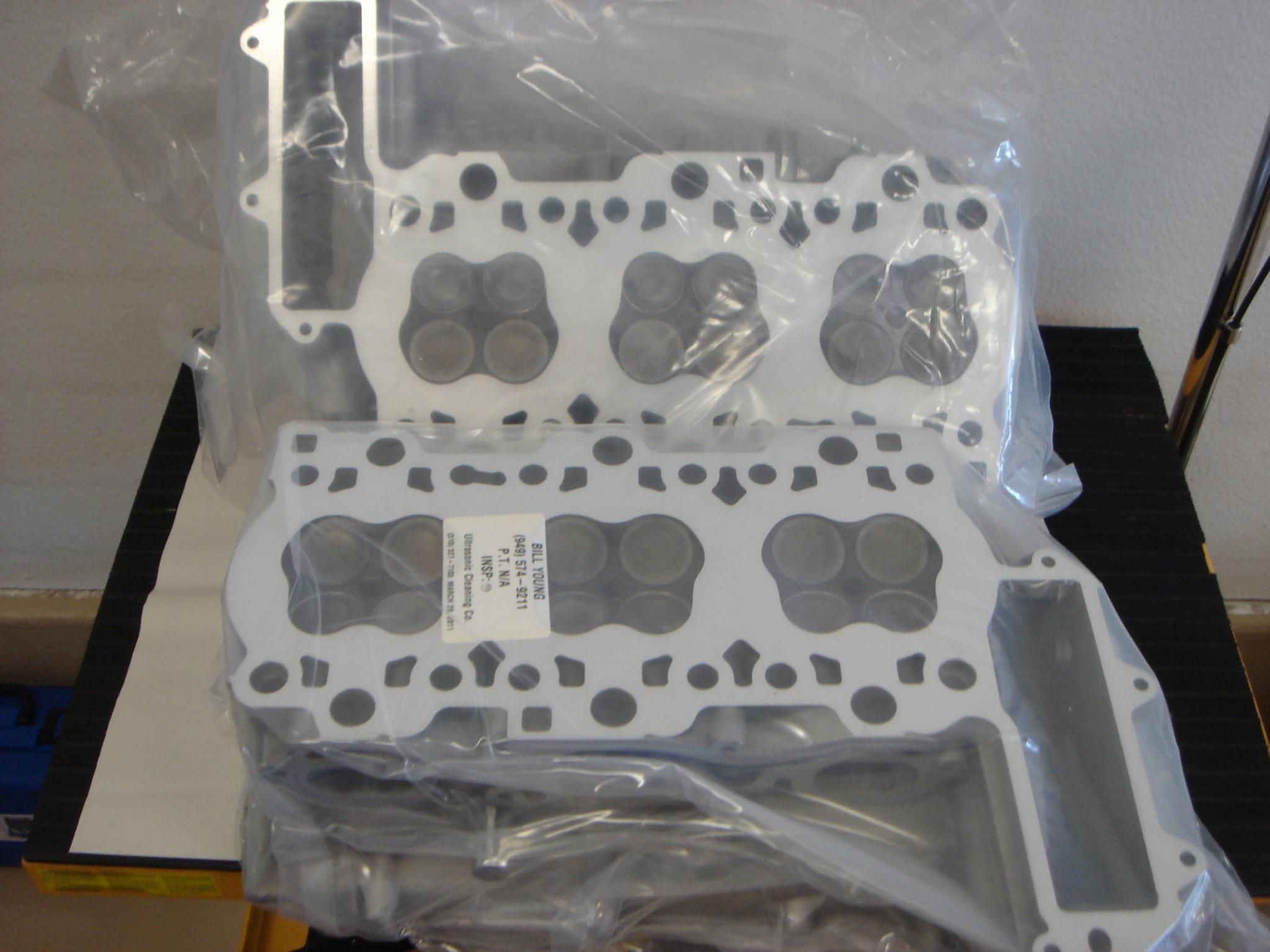

These heads do,
Attached Images

__________________
2000 S Speed YellowLN 3.6L cylinders & pistons, triple row IMSB upgrade, R&R connecting rods, billet tensioner paddle,oilpump driveshaft.Heads rebuilt by F6I with new valves & springs.Cayman airbox & MAF housing, 996 intake plenum & 75mm T/B. NHP sport converters &Dansk muffler

Last edited by BYprodriver; 11-13-2018 at 02:39 PM.
BYprodriver is offline   Reply With Quote
Old 11-13-2018, 08:31 PM   #17
Racer Boy

Racer Boy's Avatar

Join Date: Sep 2015
Location: Seattle, WA
Posts: 541
Quote:
Originally Posted by j.fro View Post
Very interesting! Does anyone have power numbers or Dyno charts showing gains from using the 996 manifold on the 3.2? I'm really interested to see just how much power could be made with our 3.2. Given that the 2.0 in the 1967 911R & 904 made 220, why can't we get 350 from the 986 S motor?
Back in 1967 the HP numbers were gross, not net. The difference is that they could measure the output with no accessories attached, open exhaust, no air cleaners, etc, in whatever temperature and conditions the maker wanted. Now the numbers are far more accurate, because the conditions of the measurement are standardized, and all the accessories are attached and functional.

Your 220 HP in 1967 would probably measure under 200 HP using the SAE net ratings.

You can read up about it here - https://ateupwithmotor.com/terms-technology-definitions/gross-versus-net-horsepower/
Racer Boy is offline   Reply With Quote
Old 11-14-2018, 03:25 AM   #18
Registered User

itsnotanova's Avatar

Join Date: Jul 2013
Location: Bastrop, Tx
Posts: 2,122
Don't quote me on this but I'm pretty positive the difference between the 3.2 and 3.4 are the case and pistons when it comes to the long block. The heads are mostly the same but the 3.2 has slightly less compression. The only real difference between the two is the intake, tune and exhaust systems. I didn't feel much of a difference when I went from a 3.4, to a 3.2 with the 996 intake, fuel, and custom exhaust made with the same diameter tubing as a 996.
The seals inside the valve adjusters were going bad in my 3.4. I put the 3.2 in while i fixed the 3.4. I almost considered leaving the 3.2 in but I had lots of $$$ invested in the 3.4, so I reinstalled the 3.4. My box made 279hp at the wheels with the 3.4 and my friend mad 249hp at the wheels with his 3.2. Here's the thread Two modified boxsters on the dyno I contribute the difference in power between us to the length of the intake runners, mileage, tune and maybe the exhaust. I have a customer who owns a shop in Dallas. He claims to have made 300hp at the wheels with a 3.2. I tend to believe him as he works on some amazing vehicles and worked for Ruf at one time.
__________________
Woody

Last edited by itsnotanova; 11-14-2018 at 03:28 AM.
itsnotanova is offline   Reply With Quote
Old 11-15-2018, 08:28 AM   #19
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,249
Quote:
Originally Posted by BYprodriver View Post
These heads do,
Nice...good flow and no cracking? Details? Fitment on which engines?
__________________
00 986 S....with a few tweaks
jaykay is offline   Reply With Quote
Old 11-15-2018, 08:54 AM   #20
Rennzenn

j.fro's Avatar

Join Date: Feb 2005
Location: Virginia
Posts: 1,355
Garage
Quote:
Originally Posted by BYprodriver View Post
These heads do,
Indeed. Care to share specs? Bigger valves? where in the heads was the porting done, and how much larger are the runners now?

I've got the 74mm TB & a splitter in the intake (Pedros Garage). the rest of my intake is 3.2, but I know the TB made a difference. I wonder what an 82mm TB (GT3) would do. I've put this out there before, but my car made 244RWHP with all of the bolt-ons.
__________________
Rennzenn
Jfro@rennzenn.com
j.fro is offline   Reply With Quote
