Converting 2004 Boxster Power Steering to 12V

Team,

As part of my EV conversion I am driving my AC compressor from the back of my DC motor however I am converting the Power Steering system to 12V and not driving it from the drive train.

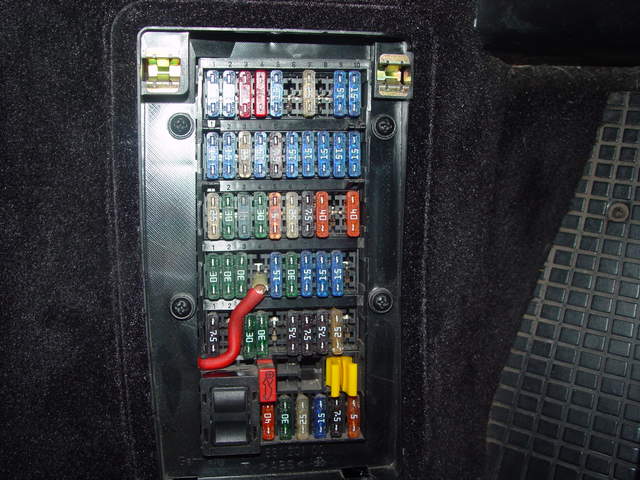

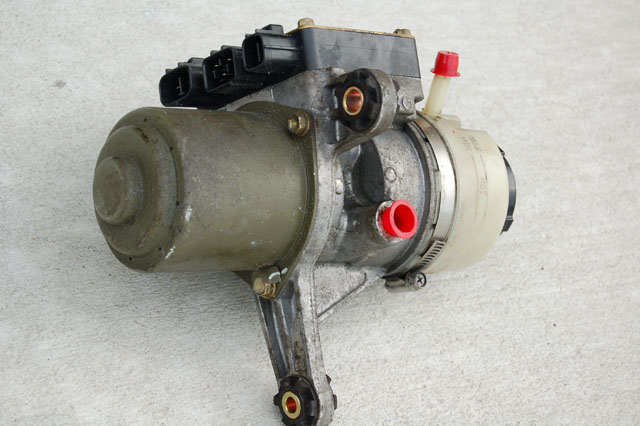

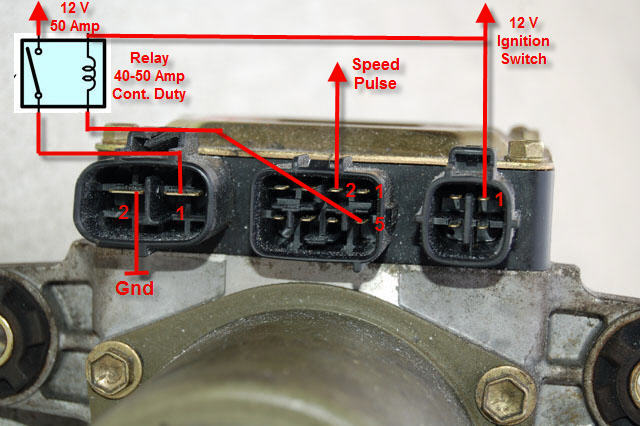

I have decided to use the MR2 Spyder Power Steering pump and cable it directly to the Power Steering rack.

I know the following fitting sizes for the MR2 pump:
  • Pressure line - 16mm x 1.5
  • Return side 3.8 mm nipple (plastic)

I need help from someone on this forum on dimensions for the following:
  • Fitting for Pressure line on the PS rack side
  • Fitting for Return line on the PS rack side

Would appreciate help from anyone who has the info. Thanks!

P.S. If you want to check out info on my build check out the link below that points to my WIP website...

EV Project: Converting my 2004 Boxster to Electric Vehicle
Attached Images


Last edited by PorscheFan5; 12-10-2015 at 01:15 PM.
PorscheFan5 is offline   Reply With Quote
Old 12-11-2015, 04:36 AM   #2
Registered User

Join Date: Oct 2014
Location: Georgia
Posts: 389
Cool project.
I just bought the conversion kit from renegade but they simply use a Toyota pump like you are doing. Check out my build thread and you will find some info in there.

The easiest thing to do with the fittings is just cut them off of the factory lines and weld new fittings on the end, I never had to worry about dimensions. Or you could just cut the factory hoses and have them crimped onto new lines etc. Either way just cut up the factory stuff, it's the easiest thing to do.
Good luck
J
__________________
John or J.J. - But I answer to most anything~
*2000 Honda Accord 4DR V6 - 220K*
http://986forum.com/forums/show-tell-gallery/54328-boxsterls376-introduction-ls3-conversion.html
BoxsterLS376 is offline   Reply With Quote
Old 12-11-2015, 04:52 AM   #3
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Hi John,
Thanks for the post. That is exactly what I am going to do, cut of the rubber lines and have a shop crimp new 'ferruls' using new lines. I am getting the Russel fittings and 6AN line from Summit racing.

How much was the kit from Renegade and what did it contain?
PorscheFan5 is offline   Reply With Quote
Old 12-14-2015, 07:12 AM   #4
Registered User

Join Date: Oct 2014
Location: Georgia
Posts: 389
It cost a lot but when I started I wanted to be able to easily replicate the project, certainly can be done for less...

Power Steering Kit

Billet custom power steering plate with mount

Electric power steering pump

Custom hose kit (customer supplied cores needed)

Plugs, harness, relays

Total
$1,295
__________________
John or J.J. - But I answer to most anything~
*2000 Honda Accord 4DR V6 - 220K*
http://986forum.com/forums/show-tell-gallery/54328-boxsterls376-introduction-ls3-conversion.html
BoxsterLS376 is offline   Reply With Quote
Old 12-14-2015, 07:44 AM   #5
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,888
go spec racing sells a kit as well, or you can buy just the parts you need, such as the two rack adaptors.
The Radium King is offline   Reply With Quote
Old 12-15-2015, 07:32 PM   #6
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Thanks John.

Radium king,

I have everything I need except for the fittings on the rack side. I will check out go spec racing. BTW, is that same as GSR racing?
PorscheFan5 is offline   Reply With Quote
Old 12-16-2015, 12:09 PM   #7
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Go spec auto racing --> GSR --> Trinity Auto sport don't work on Porsche's now so they cannot help. I will have to figure some ways of using the existing Porsche line, cut it and have a shop crimp a 6AN line on it...
PorscheFan5 is offline   Reply With Quote
Old 12-20-2015, 10:44 AM   #8
Registered User

Join Date: Mar 2015
Location: Santa Clara ca
Posts: 363
ele ps pump....what year are you using?

Just looking into this, what year pump are you sourcing??

thanks.

p.s. are you re-using the mounting bracket, upper resivior, is wiring an issue (i.e. do you need the controller module?), did you resue the oem fittings on the pump?

thx
Sassmatt72 is offline   Reply With Quote
Old 12-21-2015, 10:31 AM   #9
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Quote:
Originally Posted by Sassmatt72 View Post
Just looking into this, what year pump are you sourcing??

thanks.

p.s. are you re-using the mounting bracket, upper resivior, is wiring an issue (i.e. do you need the controller module?), did you resue the oem fittings on the pump?

thx
Hi Matt,

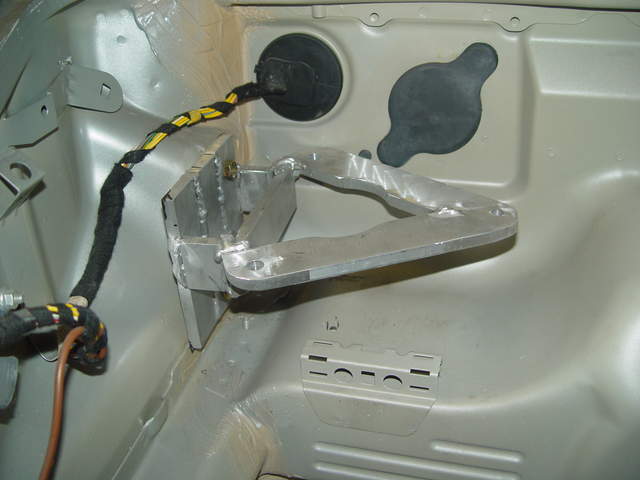

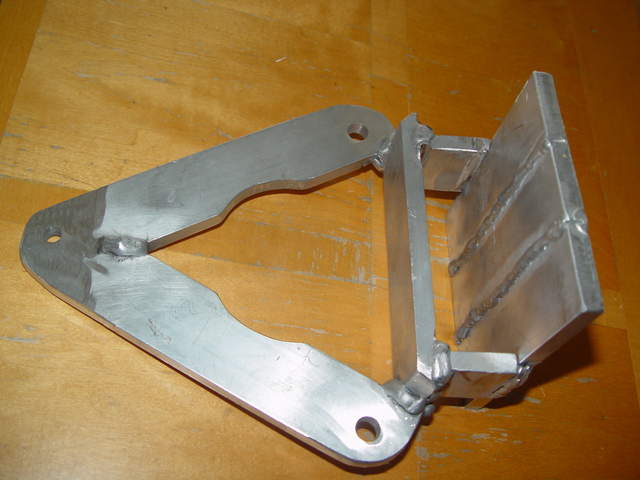

I got the PS pump from 2001 MR2 Spyder. I am fabricating the mounting bracker myself, as you saw yesterday...:-). The pump has its own reservoir and I don't think I need another one. There are good articles on the wiring, in fact there is a sticky article. The controller is part of the pump assy. I got the fittings and high pressure hose from Summit racing. Mostly I am using Fragola fittings and hoses. I am getting the rack end fitting from Woody and will see if I can get 6AN tips welded to the ends. Will post pictures on my website's Power Steering section once done. You can check it out here:

boxsterev
PorscheFan5 is offline   Reply With Quote
Old 01-04-2016, 08:57 AM   #10
Registered User

Join Date: Dec 2014
Location: California
Posts: 244

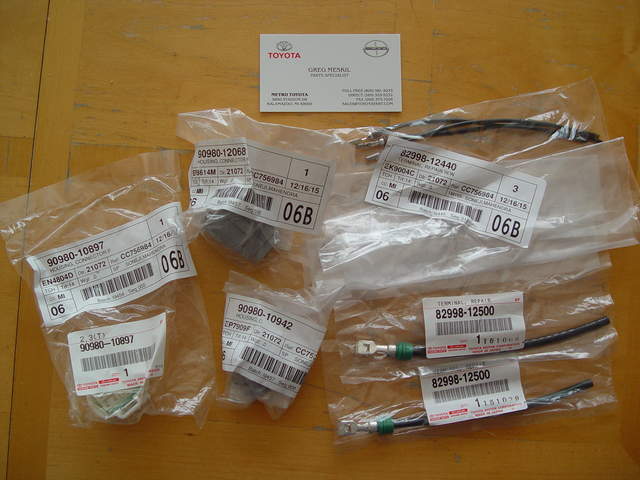

Update: Was able to source the parts and fittings needed and am almost done with the PS setup. Still need to finish up the lines and connection on the rack side...

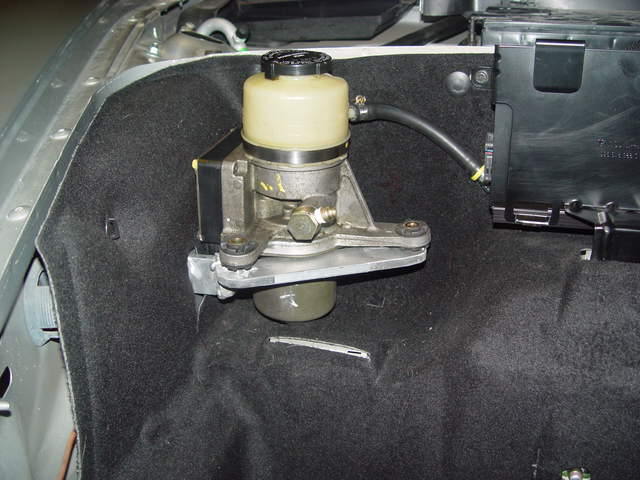

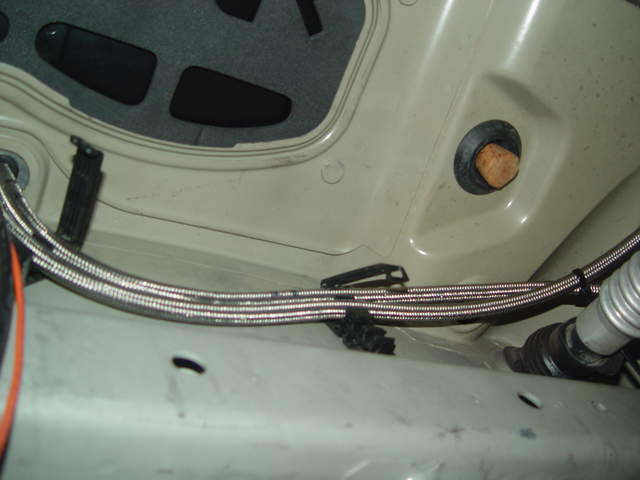

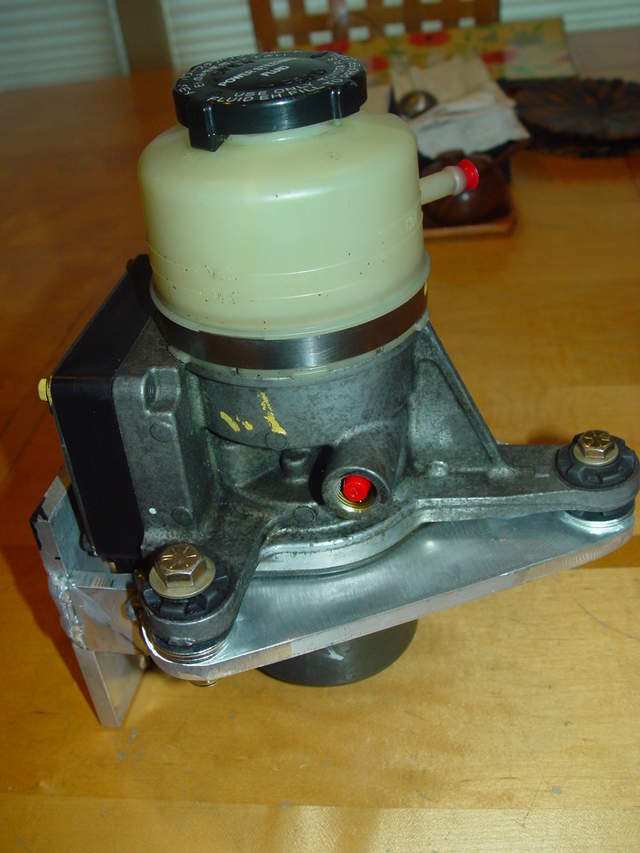

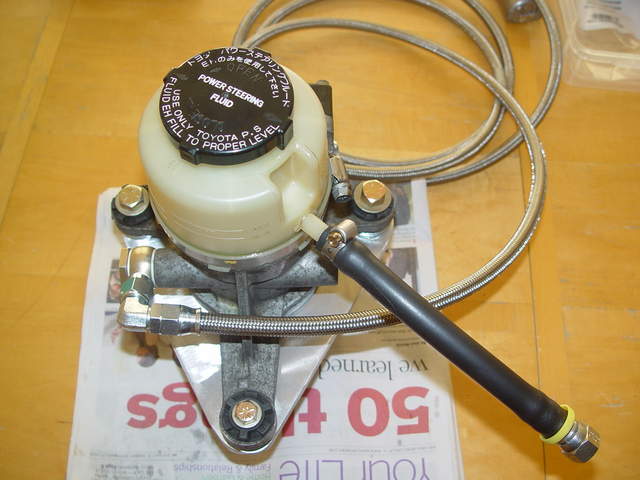

Some pics attached of the progress so far for those who are interested. If you want to see more pics check out the Power Steering Pump section on my build website (WIP)... boxsterev

Thanks to all for their responses and help.






PorscheFan5 is offline   Reply With Quote
Old 01-04-2016, 09:11 AM   #11
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Have a question for those who may have dis-assembled the PS lines on the rack side in the Boxster.

See attached pic. One of my options is to have someone TIG weld the fitting on the High pressure side line on the rack side. Can do the same on the Low pressure side if I want. (Interesting info is that the metal tube on high pressure side is steel and the LP side is AL).

Question: Other than the O-ring on the fitting that goes into the rack (that can be seen in the pic), is there another O-ring inside the assembly that allows the metal tube to swivel in the fitting? If there is, the heat from the welding may destroy that o-ring. I would then have to go another route and avoid welding. Also need to think of the heat will destroy the one-way valve on the HP side fitting...

Need to know if there is an o-ring inside the fittings at the place marked by arrows. Appreciate if anyone knows...

Last edited by PorscheFan5; 01-04-2016 at 09:36 AM.
PorscheFan5 is offline   Reply With Quote
Old 01-04-2016, 07:18 PM   #12
Registered User

Join Date: Dec 2009
Location: Orange County, CA
Posts: 1,227
Quote:
Originally Posted by PorscheFan5 View Post
Have a question for those who may have dis-assembled the PS lines on the rack side in the Boxster.

See attached pic. One of my options is to have someone TIG weld the fitting on the High pressure side line on the rack side. Can do the same on the Low pressure side if I want. (Interesting info is that the metal tube on high pressure side is steel and the LP side is AL).

Question: Other than the O-ring on the fitting that goes into the rack (that can be seen in the pic), is there another O-ring inside the assembly that allows the metal tube to swivel in the fitting? If there is, the heat from the welding may destroy that o-ring. I would then have to go another route and avoid welding. Also need to think of the heat will destroy the one-way valve on the HP side fitting...

Need to know if there is an o-ring inside the fittings at the place marked by arrows. Appreciate if anyone knows...
PorscheFan,

No, there are not any O-rings where your arrows are pointing, actually the thin aluminum tubes are press fitted into the connector and this is a weak point…

On my car, this is the place were started leaking, and what I ended doing, was to weld (ok, took it to someone that knew how..) an AN fitting directly to the coupling that attaches into the rack.

Basically the same idea you have but eliminating the thin 90 degree aluminum tube and used new O-rings on the fitting that goes into the rack.

On my car, I used the return (low pressure side) of the rack to connect an Setrag (..?) oil cooler and after 4 or 5 years I have not got any more leaks or fried PS pumps…

Good luck!
Gilles is offline   Reply With Quote
Old 01-04-2016, 08:20 PM   #13
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Good idea, Gilles. Thanks for your response. I will look into it.
PorscheFan5 is offline   Reply With Quote
Old 01-04-2016, 08:30 PM   #14
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Gilles,

Do you have any pics of the welded tips? It would help to see what worked for you and exactly where the cut and weld was made...

Thanks.
PorscheFan5 is offline   Reply With Quote
Old 01-05-2016, 07:39 AM   #15
Registered User

Join Date: Dec 2009
Location: Orange County, CA
Posts: 1,227
Quote:
Originally Posted by PorscheFan5 View Post
Gilles,

Do you have any pics of the welded tips? It would help to see what worked for you and exactly where the cut and weld was made...

Thanks.
PorscheFan,

I am currently on a business trip (OH, with 17F…!) and I am not sure that I have pictures with me, otherwise I will have to wait until my return to OC Saturday afternoon.

Where in CA are you located? If close you are welcome to stop by and see my setup, or I can take some pics for you on the weekend.

Regards, Gilles
Gilles is offline   Reply With Quote
Old 01-05-2016, 09:28 AM   #16
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Hi Gilles,

Weekend for the pics will be just fine. I am located in San Francisco Bay Area. Not driving distance for me to come by and check out your setup... However some pics will help before I tear apart the rack end fittings...

I am thinking it will probably be better to use a 45deg fittings or 90deg fittings to weld to the stock tips?

Thanks!
PorscheFan5 is offline   Reply With Quote
Old 01-05-2016, 06:11 PM   #17
Registered User

Join Date: Dec 2009
Location: Orange County, CA
Posts: 1,227
Quote:
Originally Posted by PorscheFan5 View Post
Hi Gilles,

Weekend for the pics will be just fine. I am located in San Francisco Bay Area. Not driving distance for me to come by and check out your setup... However some pics will help before I tear apart the rack end fittings...

I am thinking it will probably be better to use a 45deg fittings or 90deg fittings to weld to the stock tips?

Thanks!
PorscheFan,

Yes, you will be welding the AN fittings (45 or 90 degrees) directly to the OEM fittings that are attached to the steering rack, the OEM fittings are held to the rack by a metal plate and single bolt.

You will be cutting off the thin (pressed) aluminum 90 degree tubes.

The factory O-rings keep the OEM fittings from leaking…
Gilles is offline   Reply With Quote
Old 01-06-2016, 09:38 AM   #18
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
Gilles,

Thanks. You are correct, I cut off the thin 'crimped portion' of the fitting using a rotary tool with a flat disc carefully. The black tubes came out and sure enough there was an o-ring inside. Took the o-ring out as I won't be needing it.

I realized that both the fittings on the rack side are made of Brass! So I have to now get 2 6AN Male to 1/4 NPT Male 90 degree fittings in Brass (Google CTX-B). I plan to cutoff the NPT side and have the fitting welded to the fittings from the Boxster. Have to find someone that can TIG weld Brass. The pressure side is going to take pressures of 1000+ psi so I am not going to try and weld it myself... Also I don't have a TIG gun and don't know how to TIG weld yet..

Will attach pics once I am done.

Thanks for your help! Cheers.
PorscheFan5 is offline   Reply With Quote
Old 01-06-2016, 07:02 PM   #19
Registered User

Join Date: Dec 2009
Location: Orange County, CA
Posts: 1,227
Quote:
Originally Posted by PorscheFan5 View Post
I realized that both the fittings on the rack side are made of Brass!
.
PorscheFan,

The fittings on my car (Cayman), were made of a light color steel (Stainless..?) I also remember clearly that right after finishing the instalation of the cooler on my car, I saw here in the forum a post from Eric (Eric323..?) offering the fittings for sale in case someone wanted to install an oil cooler.

Actually, I copied this design from one of the BSR cars on his shop, maybe Eric can set you up with the steel fittings that will be easy to weld to a standard AN fitting....

Last edited by Gilles; 01-06-2016 at 07:04 PM.
Gilles is offline   Reply With Quote
Old 01-07-2016, 10:36 PM   #20
Registered User

Join Date: Dec 2014
Location: California
Posts: 244
I already has talked with Eric523. They do have a few pairs of the fittings left, however their fittings do not have the one-way valve at the end of the high-pressure fitting. Not knowing if I could discount the valve I decided against going with those fittings.

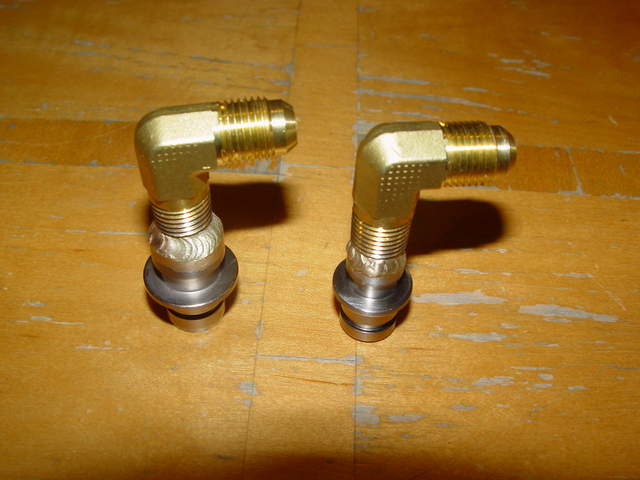

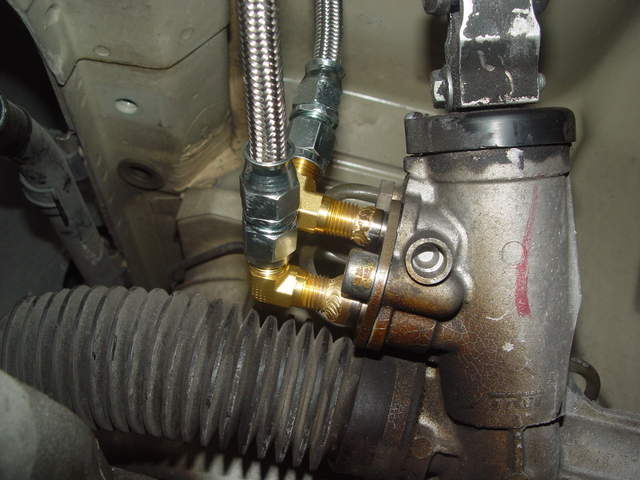

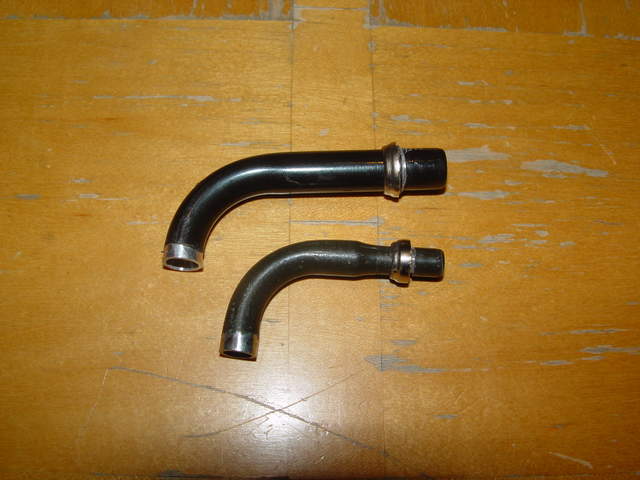

Good news, my fittings are ready! See attached pics
  • My Porsche rackside fittiings are Brass
  • I got two Brass fittings - 6AN Male to 1/4 NPT Male
  • Found a welder who Brass welded the fittings on the Porsche fittings that I cut and took the black tubes out of

These are Tig welded using Silicon Bronze. I think they turned out real good and will do the job just fine. This weekend I will fit these...


Attached Images
