Camshaft Timing Question

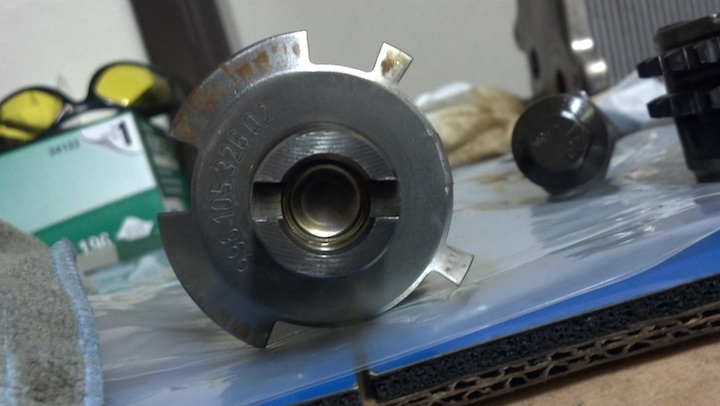

Had custom camshafts done, and the builder popped these timing wheels off the end of the camshaft, but didn't mark how they go back. I have one picture of the 4,5,6 side. Can anyone either provide a picture of the 1,2,3 side, or confirm it is a mirror opposite in orientation. This is off a 2003 2.7 Boxster. I'll take any other year models that utilize this same wheel for the Variocam-Plus feature.

Thanks,
Erik
3RotorRx7 is offline   Reply With Quote
Old 08-13-2013, 05:48 PM   #2
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
WOW!
That cam grinder needs to be taken out back and whooped! The reluctor wheel must be positioned within a few tenths of a degree. I'd not even want to try to reallocate those reluctor wheels.

You'll have to try to use another cam thats untouched to create a jig to carry out this procedure. Its bad enough when the teeth are bent or twisted.
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 08-13-2013, 06:10 PM   #3
Registered User

Join Date: Mar 2011
Location: Texas
Posts: 22
Jake,
I agree with your assessment.
Using the photo, and the head as test jig, when I position the reluctor wheel at the point that looks correct and place it back in the head and put the cam locking tool on it, it appears that the edge opposite the number "0" is dead parallel with the top of the head. Can you, or anyone else, confirm this if you have a cam and head sitting around?

Thanks,
Erik

Last edited by 3RotorRx7; 08-13-2013 at 07:05 PM.
