Go Back   986 Forum - for Porsche Boxster & Cayman Owners > Porsche Boxster & Cayman Forums > Performance and Technical chat

Reply

LinkBack Thread Tools Display Modes
Old 11-19-2012, 12:31 PM   #1
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
LED bulbs and DEPO lights.

Like a lot of other guys here, I replaced my taillights with the DEPO aftermarket ones.
The LED brake light, and the smoked top, verses the yellow OEM, really makes the car look more updated.
So why not go all the way (I asked myself)? I wanted to replace the running light, blinker and reverse bulbs to LED as well.
Got some cheep LED bulbs from eBay, installed them, and they didn’t work.
Got the expensive ones, with no different results.
OK.
I read in some places, a load resistor is needed.
Got some high quality resistors, still, the lights don’t work (bulbs do not turn on at all).
I even got the “special” relay for the blinkers without any different in results.
This weekend, I decided to go to the bottom of it.
Started cutting some wires, adding resistors, adding relays, changing ground points…..nothing makes the bulb light up.
To make a long story short, this is what I found.
To make the bulb work, I need to provide positive current to the bottom contact of the bulb, and negative to the side contact.




LED bulb, (unlike regular bulb), must be connected with the proper polarity in order for it to work.

Now, this is how the “circuit board” of the taillights looks like:




You can clearly see that the positive line (red) is going to the side contact of the bulb, and the negative (orange) to the bottom one.
There is no way, a standard LED bulb will work in my car. the polarity is reversed.
So I have 2 options.
1. Getting LED bulbs with reverse polarity (dose it exist?).
2. Building an alternative lighting system, that will be separated from the original one. (including Independent relays and fuses)
Any thoughts?

Last edited by Meir; 11-19-2012 at 12:34 PM.
Meir is offline   Reply With Quote
Old 11-19-2012, 01:18 PM   #2
Homeboy981

Homeboy981's Avatar

Join Date: Jan 2012
Location: Sherman, TX
Posts: 663
Garage
Yeah to @Meir!

You did not solve it…but explaining it is HALF the battle. This is EXACTLY what I have run into as well. Been pulling my hair out!!! Load resistors will NOT work either! Don't want to do a 'hatchet job' on the lights!

You can use the turn signals (with a EP-35 flasher from Autozone). The side markers and rear cruising lights use standard 2825s (or T10s) but replacing the others has not worked. It has been a nightmare!

@Tony_Fury spent some time with me diagnosing the circuits. They work in his car but he has aftermarket head and tail lights.

Welcome to the party @Meir…I have been banging my head with this for months.

Psst! You wouldn't happen to want to buy any LED lights in white and Amber, would you? Got a bunch of them! The LEDs are VERIFIED to work - just NOT in our cars!
__________________
2002 Porsche Boxtser S - Silver & Chrome - Died from IMS failure AFTER IMS was replaced!
Homeboy981 is offline   Reply With Quote
Old 11-19-2012, 02:12 PM   #3
2001 Arctic Silver 2.7

tony_fury's Avatar

Join Date: Jun 2012
Location: Huntington Beach,CA
Posts: 310
Garage
Meir:
You cannot just reverse the wiring into the stock light housing.
It would require modifying and cutting the metal traces, then soldering jumpers around to reverse engineer the light wiring.
Can be done, would be time consuming and would still work with bulbs if wanted to later.
Bulbs care less about polarity, whereas LED's do.

My aftermarket tail lights already corrected the polarity issue with their own circuit board that just plugs into the factory harness.

I paid $195.00 for the pair of tail lights. (Tuning Import)
97 98 99 00 01 02 03 04 Porsche Boxster 986 Euro Red LED Tail Light Lights Lamp | eBay

__________________
2001 Boxster - Arctic Silver Metallic
RMS, IMS, 87.5K
tony_fury is offline   Reply With Quote
Old 11-19-2012, 03:20 PM   #4
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
LOL!
I was trying to call both of you guys this weekend.
Mark, don't worry. I'll figure out how to nail that sucker.
As you mentioned half the job is done. In my mind even mor then that.
Finding the problem is the difficult part, solving it, will require a little bit of innovation.
I'm always up for a challenge.
Tony. Now I understand what you are talking about. Your tail lights are not DEPO.
it's another brand (better build in my opinion)
with the DEPO, you have to use the OEM plate.
So I have two options:
1. Just like Tony side. Cut the conducting lines, solder wires to them, and revers the polarity on each bulb.
2. find a way to mount the bulbs on the taillight assembly using bulb sockets with wires, and plug it the OEM socket. (in revers polarity)
Just like the LED brake lights connects to the OEM plate.
In fact, I already have it in mind. Not only that, I think I will be able to fit 3 bulbs to the running light position. Just need to confirm it will not be too bright.
It will be funny if because this issue it will come out nicer then I expected.
Meir is offline   Reply With Quote
Old 11-19-2012, 03:24 PM   #5
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
BTW Tony.
How is the fit on your lights?
The DEPO doesn't seat flash with the rear fender.
Not big deal, but was wondering how is the fitment on yours.
Meir is offline   Reply With Quote
Old 11-19-2012, 03:48 PM   #6
2001 Arctic Silver 2.7

tony_fury's Avatar

Join Date: Jun 2012
Location: Huntington Beach,CA
Posts: 310
Garage
Quote:
Originally Posted by Meir View Post
BTW Tony.
How is the fit on your lights?
The DEPO doesn't seat flash with the rear fender.
Not big deal, but was wondering how is the fitment on yours.
I guess I should of said Euro instead of DEPO
They fit flush to the body, I'll take a few pic's for you.
These lights are plug and play. Literally.. They only use the black wire plugin connector from the car. (See pic below)

The round plastic things are the stud bolt covers for shipping..
__________________
2001 Boxster - Arctic Silver Metallic
RMS, IMS, 87.5K
tony_fury is offline   Reply With Quote
Old 11-19-2012, 04:55 PM   #7
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
Thanks Tony. I appreciate that.
In the link you posted, they call it red and "smoked", but it looks red and "clear" to me.
Would love to see it on your car.
This is the ones I have.
Depo 97 04 Porsche Boxster s 986 Euro Red Smoked Lens LED Rear Lamps Tail Lights | eBay
They smoke and red looks great on my black car.
(oops, now I remember I primmest mark to post some pics in my garage .)
Meir is offline   Reply With Quote
Old 11-19-2012, 06:46 PM   #8
Registered User

mcomet's Avatar

Join Date: May 2012
Location: Concord, CA
Posts: 271
Wow nice tail lights....i agree I would love to see pictures of them installed... Might be my next mod...
__________________
Michael Comet - www.comet-cartoons.com
2014 Guards Red Cayman S - PSE - PASM - 20"CC - INFTMT - CONV - etc..etc...
SOLD - 2003 Speed Yellow Porsche Boxster S - LNE IMS - Klisstle Rollbar Cover
mcomet is offline   Reply With Quote
Old 11-19-2012, 06:53 PM   #9
2001 Arctic Silver 2.7

tony_fury's Avatar

Join Date: Jun 2012
Location: Huntington Beach,CA
Posts: 310
Garage

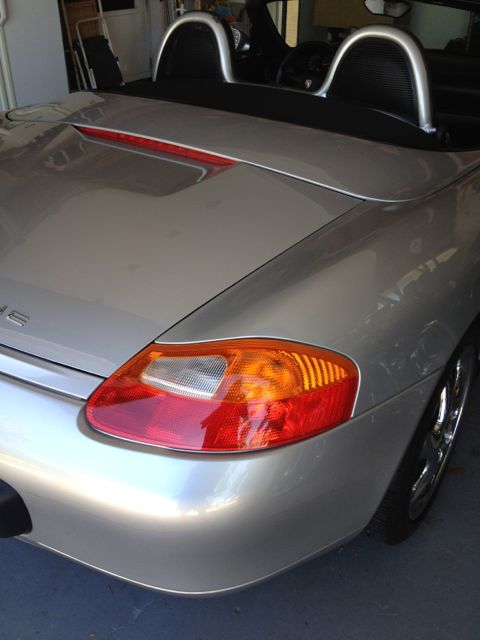

Here is the right side before & after
Name:  IMG_0395.jpg
Views: 3317
Size:  39.7 KB
Name:  IMG_0399.jpg
Views: 8094
Size:  69.9 KB

Rear both
Name:  IMG_0398.jpg
Views: 10955
Size:  50.0 KB
__________________
2001 Boxster - Arctic Silver Metallic
RMS, IMS, 87.5K

Last edited by tony_fury; 11-19-2012 at 06:59 PM.
tony_fury is offline   Reply With Quote
Old 11-19-2012, 07:10 PM   #10
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
Thanks Tony.
They look grate on your car.
However, the top lens Is clear ( again looks great on silver) I prefer the smoke one on my black car.
I'll post some pics soon.
HomeBoy, stay tuned. I will document the conversion to LED, and post it as soon as I'm done. Might take some time tough. Got some visitors this weekend.
Happy thanksgiving everyone.

Last edited by Meir; 11-19-2012 at 07:13 PM.
Meir is offline   Reply With Quote
Old 11-19-2012, 08:02 PM   #11
Registered User

mcomet's Avatar

Join Date: May 2012
Location: Concord, CA
Posts: 271
Thanks for posting. Definitely way better than the older triple color lights. I am not sure about the red ring all around... My stock 2003 s has the silver top and red bottom.... Hmmm....
__________________
Michael Comet - www.comet-cartoons.com
2014 Guards Red Cayman S - PSE - PASM - 20"CC - INFTMT - CONV - etc..etc...
SOLD - 2003 Speed Yellow Porsche Boxster S - LNE IMS - Klisstle Rollbar Cover
mcomet is offline   Reply With Quote
Old 11-19-2012, 08:29 PM   #12
Registered User

mcomet's Avatar

Join Date: May 2012
Location: Concord, CA
Posts: 271
Yeah... I used your pic to photoshop on my car... I definitely think my stock is better without the red border all around...but it looks really really good on your car...

Stock:


Photoshop:
__________________
Michael Comet - www.comet-cartoons.com
2014 Guards Red Cayman S - PSE - PASM - 20"CC - INFTMT - CONV - etc..etc...
SOLD - 2003 Speed Yellow Porsche Boxster S - LNE IMS - Klisstle Rollbar Cover
mcomet is offline   Reply With Quote
Old 11-19-2012, 08:38 PM   #13
2001 Arctic Silver 2.7

tony_fury's Avatar

Join Date: Jun 2012
Location: Huntington Beach,CA
Posts: 310
Garage
mcomet:
Nice phot0shop job..

@Meir:
Smoke would look better on a dark car..
__________________
2001 Boxster - Arctic Silver Metallic
RMS, IMS, 87.5K
tony_fury is offline   Reply With Quote
Old 11-23-2012, 07:41 AM   #14
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
Have an idea how to complete the conversion.
Anyone have a set of the socket for sale?

Meir is offline   Reply With Quote
Old 03-04-2013, 08:38 AM   #15
Registered User

Join Date: Mar 2013
Posts: 2
Does anyone know where to get these lights? I cant find them on ebay at all!
lindvere is offline   Reply With Quote
Old 03-04-2013, 02:32 PM   #16
Custom User Title Here

particlewave's Avatar

Join Date: Mar 2012
Location: KC
Posts: 5,888
Garage
http://jdmautolights.com/porsche-boxster-tail-lights-emark-streert-legal-p-274.html

Last edited by particlewave; 03-04-2013 at 02:41 PM.
particlewave is online now   Reply With Quote
Old 03-12-2015, 01:14 PM   #17
Registered User

Join Date: Feb 2015
Location: Valencia, CA
Posts: 4
Did anyone figure out how to make LED bulbs work on our tail lights??
staust5 is offline   Reply With Quote
Old 03-12-2015, 01:54 PM   #18
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
Quote:
Originally Posted by staust5 View Post
Did anyone figure out how to make LED bulbs work on our tail lights??
replayed to your Pm.
but just so others will know, i saw a post when the bulb itself was taken apart, and the polarity was reversed in the bulb.
maybe ill give it a try this weekend, as i picked another set of depos for the silver car.
Meir is offline   Reply With Quote
Old 03-13-2015, 06:40 AM   #19
Registered User

Join Date: Feb 2015
Location: Valencia, CA
Posts: 4
I tried reversing the polarity of the bulb by taking it apart and switching positive and negative contacts but still did not work.
staust5 is offline   Reply With Quote
Old 03-13-2015, 06:59 AM   #20
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,579
Garage
Quote:
Originally Posted by staust5 View Post
I tried reversing the polarity of the bulb by taking it apart and switching positive and negative contacts but still did not work.
did you tested the bulb before installing it on the vehicle?
picture of the bulb will help, as you might have a diode in line.
Meir is offline   Reply With Quote
Reply


Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -8. The time now is 11:41 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2019, vBulletin Solutions, Inc.
Content Relevant URLs by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Pelican Parts Website -    DMCA Registered Agent Contact Page
