Cam Lock Tool for IMS update...Dimensions?

Does anybody have the dimensions for the "Cam Lock" tool for when I do my IMS bearing?

All I need is for someone to do a 1:1 scan of it on a scanner, and then send me a file with the dimensions. A CAD drawing would be awesome, but not expected. I also need to know the thickness of the part.

I have the car torn apart, but the engine is not removed (986 3.2). My back is shot, so R&D'ing the part to make a new one from scratch is not looked forward to with enthusiasm, as it would require under-the-car gymnastics. No, well, not if someone could help me in this thread. lol

Before anybody says "You can't make those!", yes I can. I have a lathe and a mill in my basement, and a LOT of clean scrap steel plate.

I tried searching for such a subject, but failed.

BTW...That part is a $10 part if made in quantity.

FauxDiablo is offline   Reply With Quote
Old 07-13-2016, 03:16 PM   #2
Registered User

Join Date: Jul 2016
Location: Minnesnowta
Posts: 90
I believe it's these...

FauxDiablo is offline   Reply With Quote
Old 07-14-2016, 09:21 PM   #3
Registered User

Pdwight's Avatar

Join Date: May 2013
Location: North Alabama
Posts: 2,077
Make me a set and I will pay you $20
Pdwight is offline   Reply With Quote
Old 07-14-2016, 09:37 PM   #4
Registered User

BirdDog's Avatar

Join Date: Oct 2013
Location: Atlanta, GA
Posts: 417
Oops, never mind.
__________________
2001 Boxster S - Speed Yellow, Black Leather, Tiptronic, Jake Raby rebuilt 3.2 with IMS Solution

Last edited by BirdDog; 07-15-2016 at 11:51 AM.
BirdDog is offline   Reply With Quote
Old 07-14-2016, 11:26 PM   #5
Registered User

Nine8Six's Avatar

Join Date: Sep 2013
Location: Montreal, QC. (currently expat to Shanghai)
Posts: 3,085
My understanding is you don't need spec drawings at all. Make your own. Owning the M96 engine is all you need. Apparently;

Our porsche indy/specialist here regularly drop by my place to profile & machine parts off my manual mill so I can't imagine it as being that difficult using the basic engine measurements (which you already have). Hand written notes on a greasy piece of paper and off he goes.

All I know is his parts are all similar looking to those you posted. All for diff engines... he does it all himself mate, he's fun to watch also
__________________
______________________________
'97 Boxster base model 2.5L, Guards Red/Tan leather, with a new but old Alpine am/fm radio.
Nine8Six is offline   Reply With Quote
Old 07-15-2016, 04:31 AM   #6
Registered User

husker boxster's Avatar

Join Date: Sep 2006
Location: Omaha
Posts: 2,238
If I understand his post correctly, he wants to build the parts before he tears the engine apart. Hence the request for dimensions.
__________________
PCA National HPDE Instructor
2008 Boxster S Limited Edition #005
2007 Cayman S - SOLD on Valentine's Day 2013
2008 Cayman S Sport - Signal Green
husker boxster is offline   Reply With Quote
Old 07-15-2016, 04:44 AM   #7
Registered User

Nine8Six's Avatar

Join Date: Sep 2013
Location: Montreal, QC. (currently expat to Shanghai)
Posts: 3,085
Quote:
Originally Posted by husker boxster View Post
If I understand his post correctly, he wants to build the parts before he tears the engine apart. Hence the request for dimensions.
Noticed the "back hurt" part just now also :/ I read faster than my little brain can follow. Too technical to explain, don't ask!

Just txt'ed my indy for pics, got "busy" as reply. Hopefully someone else can snap a high resolution pics with a ruler as reference. Think that'd be enough to get those 2D parts drawn quickly
__________________
______________________________
'97 Boxster base model 2.5L, Guards Red/Tan leather, with a new but old Alpine am/fm radio.
Nine8Six is offline   Reply With Quote
Old 07-15-2016, 05:01 AM   #8
Beginner

Jamesp's Avatar

Join Date: Mar 2013
Location: Houston
Posts: 1,659
Garage
The year matters. The tool is different for 2003 and later.
__________________
2003 S manual
Jamesp is offline   Reply With Quote
Old 07-15-2016, 09:08 AM   #9
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,582
Garage
these are the measurements for the 5 chains locking tool.


Last edited by Meir; 07-15-2016 at 09:19 AM.
Meir is offline   Reply With Quote
Old 07-15-2016, 12:34 PM   #10
Registered User

flaps10's Avatar

Join Date: Jul 2014
Location: Tacoma
Posts: 430
^ 3 chain. The five chain is the long one with two locking tabs.
flaps10 is offline   Reply With Quote
Old 07-15-2016, 03:01 PM   #11
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,582
Garage
Quote:
Originally Posted by flaps10 View Post
^ 3 chain. The five chain is the long one with two locking tabs.

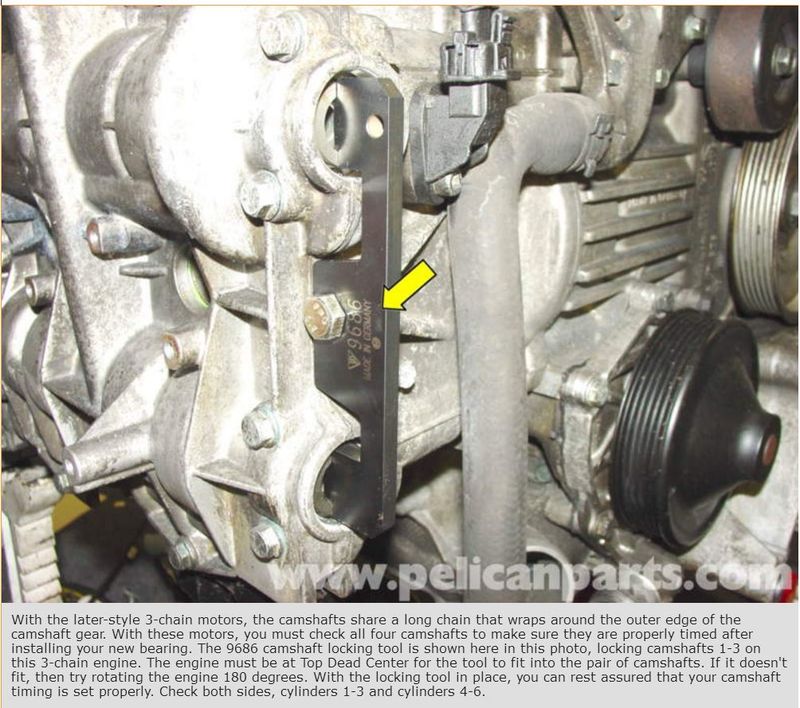

the short tool is for the 5 chains as the the grooves in the camshafts do not line up.
you can lock only the lower camshaft. (which is fine as the 2 camshafts are connected via another chaine)



on the 3 chains they will line up, so you can tie them against each other with the long tool.



Last edited by Meir; 07-15-2016 at 03:05 PM.
Meir is offline   Reply With Quote
Old 07-15-2016, 09:39 PM   #12
Registered User

Join Date: Jul 2016
Location: Minnesnowta
Posts: 90
OMG... I knew I should have checked this earlier!

I ended-up tweaking my back out to just make my own three-chain cam locks. Yes, they turned-out almost exactly like the one pictured above, but instead of a hole for bolt, I made an open-ended slot.

The one for the front, banks 1-3 is flat, The one for the back, banks 4-6 I made offset. Worked fine so far,

Thanks again!

PS...This is now a dead-end thread, as I am going to go post a new thread about what I found inside my IMS...
FauxDiablo is offline   Reply With Quote
Old 07-16-2016, 01:56 AM   #13
Registered User

Join Date: Jan 2016
Location: Western Australia
Posts: 91
800mm length, that's nearly a metre long, pretty bi tool, is it supposed to be 80mm?

Quote:
Originally Posted by Meir View Post
these are the measurements for the 5 chains locking tool.

rusty69911 is offline   Reply With Quote
Old 07-16-2016, 07:37 AM   #14
1999 base

Meir's Avatar

Join Date: Dec 2011
Location: Coral Springs FL
Posts: 1,582
Garage
Quote:
Originally Posted by rusty69911 View Post
800mm length, that's nearly a metre long, pretty bi tool, is it supposed to be 80mm?
LOL!
Yes. It is 80.
