Redirect airflow from center radiator

I have searched but not really found an answer so I go ahead and start a new thread..

Im switching the front bumper cover to the OEM Aerokit-2, aka 996 GT3. In my quest to improve front end stability I thought Ill go ahead and redirect the airflow from the center rad upwards.. So I have cut the 996GTR RS-slots and will close of the OEM slots at the underside.

Now comes the tricky par where Id love some advice..
Since Im not just after the cosmetics, I strive for a proper aero improvement however I do not want to "butcher" the car, I want a clean install, as OEM looking as possible. My first attempt was to go "Full GT2", I got the GT-2 chimney, however discovered since the GT2 approach pushes the front rad forward too much to fit the 986/986 narrow front, the moved center rad interferes with the ducts for the side radiators. My next attempt is to simply tilt the front radiator upwards which involves flipping it and DIY some simplified air duct behind the radiator.

Questions:
1) If I flip the radiator the inlet/outlet will be in the bottom, will this work or will there be air bubbles trapped in the radiator? If so can this radiator (996.106.037.51) be vented? It looks like it has some sealed outlets for venting, but I have no clue how to use them.

2) I know that I have seen pics of someone using the GT-2 chimney in a blue 986 and it looked really neat. I believe it can be used if trimmed so that the center rad don't need to be pushed too far forward. Anyone tried this?


The spring is around the corner and Im about to panic!!!



EDIT: Found the Blue 986 with GT2-chimney, but its on another forum, not sure if its ok to link to other forums.


Last edited by Robert986; 04-02-2018 at 03:05 AM.
Robert986 is offline   Reply With Quote
Old 04-02-2018, 02:46 AM   #2
"50 Years of 550 Spyder"

10/10ths's Avatar

Join Date: Jun 2015
Location: The Road
Posts: 815
Does your wind tunnel have a moving floor?
__________________
550 SE #310---"It's more fun to drive a slow car fast, than a fast car slow."
10/10ths is offline   Reply With Quote
Old 04-02-2018, 03:05 AM   #3
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
Quote:
Originally Posted by 10/10ths View Post
Does your wind tunnel have a moving floor?
Was that a serious question? If so please explain.

EDIT: Sorry Im slow.. I guess you question the aerodynamic idea? If so, Im no expert but as I understand it this is a pretty common mod that mimics the proven functionality of eg GT2. Anyway, Im already into it, getting all dirty so its not a question of IF, just how to.
-Very jealous of your FVD exhaust btw... :-)

Last edited by Robert986; 04-02-2018 at 03:55 AM.
Robert986 is offline   Reply With Quote
Old 04-02-2018, 04:23 AM   #4
Registered User

truegearhead's Avatar

Join Date: Jul 2011
Location: Richmond, VA (The Fan)
Posts: 821
Im surprised youre struggling with front end stability, do you have a wing in the rear that is compromising the balance? If you want to improve front end stability a simple 4 splitter will do far more than playing with airflow in and out of the radiators. Keep in mind to that as you block air from passing underneath the car you will be reducing air that makes it to your brake ducts.
__________________
1997 2.5 Boxster NASA Time Trial track car
2003 911 C2
NASA HPDE Instructor
truegearhead is offline   Reply With Quote
Old 04-02-2018, 05:31 AM   #5
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
Quote:
Originally Posted by truegearhead View Post
Im surprised youre struggling with front end stability, do you have a wing in the rear that is compromising the balance? If you want to improve front end stability a simple 4 splitter will do far more than playing with airflow in and out of the radiators. Keep in mind to that as you block air from passing underneath the car you will be reducing air that makes it to your brake ducts.
I drive really really really fast... And I never brake.
Robert986 is offline   Reply With Quote
Old 04-02-2018, 05:49 AM   #6
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
I shorten my question: Will it work to keep the center rad flipped? Or will I get a problem with air bubbles?
Robert986 is offline   Reply With Quote
Old 04-02-2018, 07:26 AM   #7
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,987
um, i think you folks fail to recall that the base 986 came without a centre rad and spec racers have no issues with brake cooling.

and that when the centre rad was introduced on the 's' model, no additional aero was added. so, from an aero perspective, the addition of the centre rad on the 's' model provided front end lift on a car that previously did not have it - you are taking air approaching the car at a high velocity and redirecting it downwards. this will lift the front. worse, you are introducing air under the car which will lift the entire car.

assuming the 986 spent lots of time in the wind tunnel and was the epitome of porsche aero engineering, the hack addition of the third rad was an aero compromise to address heat management of a large engine in a confined space.

regardless, what is the worst that could happen from redirecting the air upwards? more front traction. worst case - the rear will feel lighter as a result. it will not be lighter, but will feel so comparetively. what to do? change how you drive, get wider rear rubber, whatever. if you are on a quest for performance, it is foolish to compromise one aspect of your car to accomodate inadequacies of another.

otherwise, there will be less air under the car = less lift overall. not a bad thing.

to the op - i think you can use the gt2 duct but would have to trim your side rad ducts a bit. otherwise, you can keep the centre rad in it's oem orientation and just push forward and tilt using threaded rod and spacers. i would like to see the link you are referencing; the one i am aware of is on the 6 speed forum and includes the install of the gt2 front bumper cover which has the taller/narrower side rad openings. and it is hard to copy the gt3 rs install as they didn't use the gt2 duct iirc.
The Radium King is offline   Reply With Quote
Old 04-02-2018, 11:05 AM   #8
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
You are absolutely correct TRK!

When it comes to actual aero performance, I can say that at 150Mph it becomes REALLY light in the front, not very planted Id say. Besides the top vents Im also adding a decent splitter, I think it will be just about right. Pics will come when Im done! :-)

Regarding the other thread Im referring to, I hope Im allowed to share links to other forums, if not please let me know. Here is that thread anyway, there is a guy (jimk04) who has made a really neat installation, however I believe that its a bit too tight behind the rad, so I doubt its optimum from a aero perspective. http://www.planet-9.com/987-cayman-and-boxster-competition/208657-center-radiator-venting-holes-question.html#post2011233


TRK, you are correct, the GT2 duct can be fitted as intended if the side ducts are trimmed, to rough for my taste, wanna keep the side ducts neat and tidy.

Anybody with opinions on the tilted rad? Air bubbles or not?

Last edited by Robert986; 04-02-2018 at 11:12 AM.
Robert986 is offline   Reply With Quote
Old 04-02-2018, 11:30 AM   #9
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,987
a couple of things from the planet 9 thread ...

he is using a 997 gt2 part; might get better fitment from the 996 gt2 part?

you also need the duct that mounts between the bumper cover and the centre rad (it is shorter and angled compared to ours); this may improve fitment also?

i actually have the parts but have yet to install them.
The Radium King is offline   Reply With Quote
Old 04-02-2018, 12:36 PM   #10
Registered User

steved0x's Avatar

Join Date: Dec 2012
Location: FL
Posts: 4,073
Search for threads by j.fro, he has done what you are doing and explains it in a thread. I think he flipped and tilted the front rad, no issues with air bubbles from what I understand. Pics please!!
steved0x is offline   Reply With Quote
Old 04-02-2018, 03:39 PM   #11
Rennzenn

j.fro's Avatar

Join Date: Feb 2005
Location: Virginia
Posts: 1,359
Garage
I can report that at 140 my car is steady as a rock.
I did not turn the radiator upside down; I did flip the top radiator bracket around, and I added a section to make each hose longer to compensate for the extension. This effectively angled the center radiator forward. I put a piece of sheet metal behind the radiator to "chimney" the air through the top vents. I also sealed off the bottom of the bumper, forcing all of the air over the hood. The 986 rubber radiator-to-bumper seal would not work with my GT3 front bumper no matter whatI tried so i just left it out. All of the air isn't going through the radiator, but it's certainly going through the top vents. Cooling is fine, and the nose is pressed to the pavement.
__________________
Rennzenn
Jfro@rennzenn.com
j.fro is offline   Reply With Quote
Old 04-02-2018, 03:52 PM   #12
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,987
also, perhaps you can 'punch out' the side rad ducts with a heat gun? also note that, if you do use the gt2 part, you may need a spacer on the bumper mounts to move the bumper forward a bit to fit it all in. there is a gt2 part # for the spacer, but i am sure something could easily be fabricated.
The Radium King is offline   Reply With Quote
Old 04-03-2018, 01:51 PM   #13
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,487
Re light front.....what is your ride height? Stock ride height and damping will feel very light and nervous at 150. Lowered on coil overs should help
__________________
00 986 S....with a few tweaks
jaykay is online now   Reply With Quote
Old 04-04-2018, 06:24 AM   #14
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
Wow, great inputs guys!

I like the J.fro approach to extend the hoses, I feel that a flipped radiator is asking for problems with trapped air in the radiator.

Btw. I Think that the 996 and 997 chimneys are the same parts: 996.575.325.30.
The splitter Im adding is the 99650598691, actually intended for the 996 Mk2, but I hope I can make it work.

Ill sure let you know how it turns out, right now Im busy replacing a side radiator that had a leak. The bumper cover is at the paint shop so soon I hope to have it all put together.

Last edited by Robert986; 04-04-2018 at 06:29 AM.
Robert986 is offline   Reply With Quote
Old 04-04-2018, 06:27 AM   #15
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
Quote:
Originally Posted by jaykay View Post
Re light front.....what is your ride height? Stock ride height and damping will feel very light and nervous at 150. Lowered on coil overs should help
Good point, Its on my list, however I try to do one thing at a time to trick myself to forget the cost for each step.. ;-) Also want to verify front clearence with the new splitter Before I decide on lowering.

Last edited by Robert986; 04-04-2018 at 06:33 AM.
Robert986 is offline   Reply With Quote
Old 04-04-2018, 06:31 AM   #16
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
Quote:
Originally Posted by The Radium King View Post
"you also need the duct that mounts between the bumper cover and the centre rad (it is shorter and angled compared to ours); this may improve fitment also?".
Good Point, I dont have that part, may I ask for the Part no if you have it?
Robert986 is offline   Reply With Quote
Old 04-04-2018, 06:37 AM   #17
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,987
99657514130
The Radium King is offline   Reply With Quote
Old 04-05-2018, 12:35 AM   #18
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage
Quote:
Originally Posted by The Radium King View Post
99657514130
Perfect, thanks!

Man, thats a pretty expensive piece of plastic..
Robert986 is offline   Reply With Quote
Old 05-26-2018, 05:40 AM   #19
Registered User

Join Date: Feb 2017
Location: Stockholm
Posts: 221
Garage

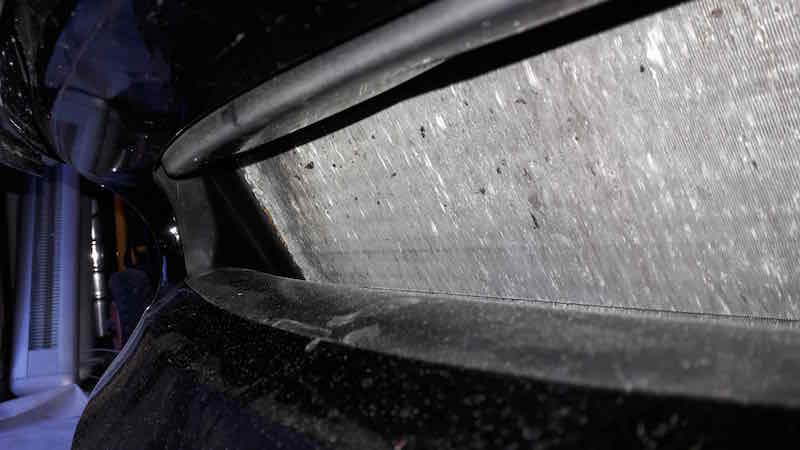

Ok boys, Im done and quite happy with there result..

I gave up on the GT2-duct, just could not make it fit the way I wanted. Instead I flipped the radiator, grinded a bit om the metal frame holding the radiator so it wont interfere with the side rad ducts. I found a "perfect" angle so I could reuse the original front duct.
I closed the outlet on the bottom with aluminium sheets. Well, here are the pics..

When flipping the radiator the OEM hoses do reach so no need to make it complicated and change hoses, I also learned that there is a valve for venting out the air after it is flipped (The blue one on pic-4).
Attached Images
