2nd Gear Slip-out CMS Shift Arrester

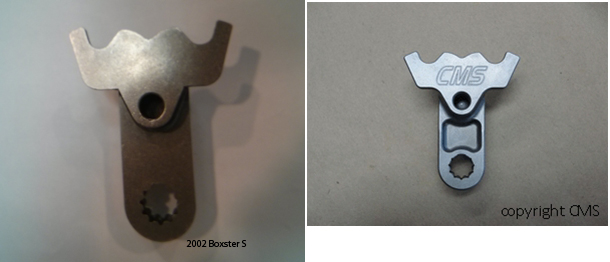

So does anyone have experience with the Shift Arrester from CMS? California Motorsports - Porsche Boxster 986 transmission section

Attached Images

3_Angels is offline   Reply With Quote
Old 06-29-2014, 10:17 AM   #2
Registered User

BYprodriver's Avatar

Join Date: Oct 2008
Location: O.C. CA
Posts: 3,413
Garage
I love mine, it gives a noticable improvement in shifting especially 2nd gear. (6-speed)

Install requires removing tail housing, which is easy, reinstalling tail housing is very difficult. It includes a new detent like the G-box 2nd gear popout fix.

Call CMS & they will answer any questions you have about these transmissions.
__________________
Jerk that is constantly criticzing new forum members and overly advertising my rebuilt engine for sale for a highly inflating price along with other miscellaneous parts accumulated over my 20 years of ownership.
BYprodriver is offline   Reply With Quote
Old 07-02-2014, 08:31 PM   #3
Registered User

Brad Roberts's Avatar

Join Date: Aug 2004
Location: Alta Loma, CA
Posts: 1,334
You will be upset when you find out: the shift arrester didn't solve the problem

To properly fix your issue? You'll need a new second gear and slider, you'll need to repair or replace the tail housing
__________________
Engine Builds, Transmission Builds, Engine Conversions, Suspension Installs, Suspension Tuning, Driver Coaching, Data Acquisition, Video, SCCA/PCA/POC/NASA/GRAND AM/ALMS.
We have worked with amateur and professional drivers for over 26 years. In house machinist, In house fabrication. Our cars, our parts, our engines, our transmission's run nationwide at events every weekend. We work side by side with industry names developing parts.
Brad Roberts is offline   Reply With Quote
Old 07-03-2014, 09:33 PM   #4
Registered User

3_Angels's Avatar

Join Date: Mar 2014
Location: Albuquerque
Posts: 46
Quote:
Originally Posted by Brad Roberts View Post
You will be upset when you find out: the shift arrester didn't solve the problem

To properly fix your issue? You'll need a new second gear and slider, you'll need to repair or replace the tail housing
Thanks gentlmen: Based on comments, I replaced second gear, slider, and synchronizer rings for second gear. I repaired the tail housing. All back together tonight. 2002BoxsterSTransmissionRebuildDecember2011Revisio n3.pdf
Attached Images

3_Angels is offline   Reply With Quote
Old 07-04-2014, 08:27 PM   #5
Registered User

jaykay's Avatar

Join Date: Sep 2009
Location: toronto
Posts: 2,365
dude! does your woman allow 6-speeds on the coffee table? if so I bow before your greatness
__________________
00 986 S....with a few tweaks
jaykay is offline   Reply With Quote
Old 07-04-2014, 10:49 PM   #6
Registered User

3_Angels's Avatar

Join Date: Mar 2014
Location: Albuquerque
Posts: 46
Quote:
Originally Posted by jaykay View Post
dude! does your woman allow 6-speeds on the coffee table? if so I bow before your greatness

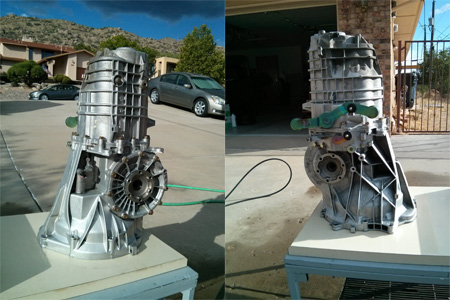

Wouldn't that be nice. No such luck. My Gold Crown is in the living room, the transmission is finished and back in the garage. I'm doing a DOF IMS along with DMF clutch job when parts arrive. I'm adding 600 sq ft pool room along with a lap pool attached to the house. When all that entertainment is completed, maybe we can be fortunate enough to attract a vibrant 65 year old female companion. (I'm retired)
Attached Images

3_Angels is offline   Reply With Quote
Old 08-27-2014, 02:34 PM   #7
Registered User

3_Angels's Avatar

Join Date: Mar 2014
Location: Albuquerque
Posts: 46
Car reassembled last night. Transmission shifting smoothly and confidently. Second gear seems rock solid on both max acceleration and deceleration. My fingers are crossed, but there seems to be no evidence of any transmission issues!
3_Angels is offline   Reply With Quote
Old 09-22-2014, 12:50 PM   #8
Registered User

Join Date: Sep 2014
Posts: 4
Quote:
Originally Posted by Brad Roberts View Post
You will be upset when you find out: the shift arrester didn't solve the problem

To properly fix your issue? You'll need a new second gear and slider, you'll need to repair or replace the tail housing
We don't claim our shift arrester will fix a pop out problem. It will help prevent future ones from happening provided the 2nd gear synchro teeth and slider are in good shape.
CaliforniaMotorsport is offline   Reply With Quote
Old 09-22-2014, 01:25 PM   #9
Registered User

Join Date: May 2014
Location: S.California
Posts: 2,012
Thanks for the clarification.It is a great solution to the #1 reason(??) for a gearbox rebuild.
Here is the part that CMS were too modest to link:
CMS 996 SHIFT ARRESTER – California Motorsports Inc
Yes it is expensive($200) but until someone comes up with a better/much cheaper part it is the best solution?
Gelbster is offline   Reply With Quote
Old 09-22-2014, 03:08 PM   #10
Registered User

Join Date: Sep 2014
Location: Holy city, sc
Posts: 265
Gbox also offers a second gear popout solution. I have one in my 996. Works wonders but, inthink it's a little more than 200.
Trendy996 is offline   Reply With Quote
Old 09-22-2014, 03:15 PM   #11
Registered User

Join Date: May 2014
Location: S.California
Posts: 2,012
Hey Trendy - yes, I read about the gbox item . Curious why you chose theirs rather than CMS or why not both???
Thanks for any insight.
Gelbster is offline   Reply With Quote
Old 09-22-2014, 06:05 PM   #12
Registered User

Join Date: Sep 2014
Location: Holy city, sc
Posts: 265
An educated guess would tell me that the cms is only good for non worn trans and I've seen the gbox cure peoples trans that is starting to see the problem. Now if the problem is left unattended then there really is no cure other than rebuilding that area. As for using both I think that would be over kill but it also wouldn't hurt. All the cms does is fully engage the gear.

This opinion is just my observation from the designs.
Trendy996 is offline   Reply With Quote
Old 09-22-2014, 08:55 PM   #13
Registered User

BYprodriver's Avatar

Join Date: Oct 2008
Location: O.C. CA
Posts: 3,413
Garage
Quote:
Originally Posted by Gelbster View Post
Hey Trendy - yes, I read about the gbox item . Curious why you chose theirs rather than CMS or why not both???
Thanks for any insight.
The CMS shift arrester is a billett replacement for the oem part & includes a modified detent similar to the G-box, so no need to buy both.
__________________
Jerk that is constantly criticzing new forum members and overly advertising my rebuilt engine for sale for a highly inflating price along with other miscellaneous parts accumulated over my 20 years of ownership.
BYprodriver is offline   Reply With Quote
Old 09-23-2014, 06:56 AM   #14
Registered User

Join Date: May 2014
Location: S.California
Posts: 2,012
Kudos to Byprodriver -the first and only Forum member to explain this.
Thank you for the education!
Gelbster is offline   Reply With Quote
Old 09-29-2014, 10:49 AM   #15
Registered User

Join Date: Sep 2014
Posts: 4
Quote:
Originally Posted by Gelbster View Post
Hey Trendy - yes, I read about the gbox item . Curious why you chose theirs rather than CMS or why not both???
Thanks for any insight.
Both cannot be used in conjunction as it will exacerbate the problem.

CaliforniaMotorsport is offline   Reply With Quote
