Old 11-01-2010, 12:35 PM   #1
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Name this bolt! Multi-part, bazaar mode of failure!

Ok...

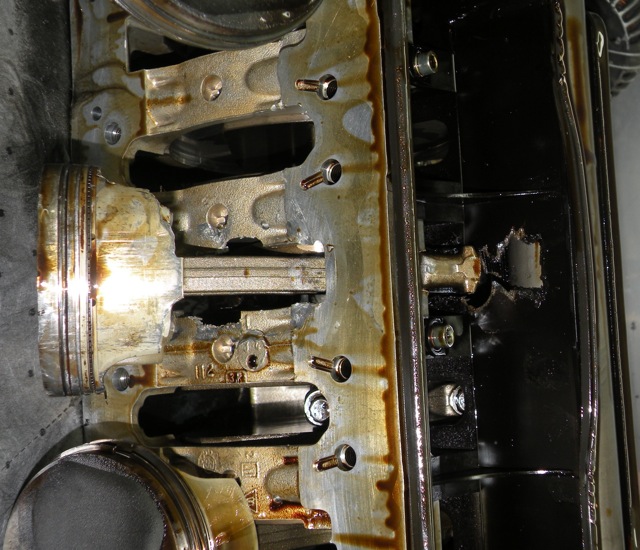

Who wants to guess what happened first?? I have more pics to share, but they'll give away the mode of failure completely..

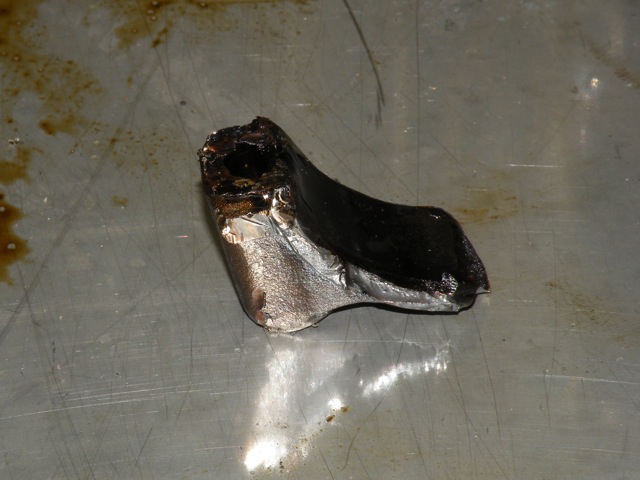

See that bolt? what is it? where is it from? It was in perfect condition before it's ride up the "conveyor belt" (timing chain) where it met the exhaust cam and thats finished the engine off.

This happened at 60 MPH, the car wasn't on the track.. Bazaar!
Attached Images

__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-01-2010, 01:44 PM   #2
Registered User

Join Date: Jul 2005
Location: MA
Posts: 769
OUCH! Looks like a rod bolt.
My guess is that the bolt somehow worked its way loose, gnashed the timing, and the material in the cylinder is from valve contact.
__________________
98 Arena Red 986

2010 e61 535 "TTWAGON"
Stroked & Blown is offline   Reply With Quote
Old 11-01-2010, 01:50 PM   #3
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424

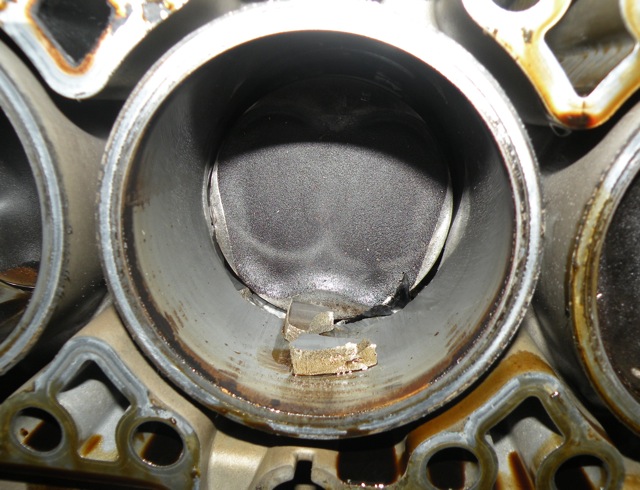

The material in the cylinder, is the cylinder... After the rod bolt stretched, worked its way loose and fell into the sump where it was picked up by the timing chain..

The remaining single rod bolt wasn't enough to tie the mass together, so it broke and shot the cap through the top of the block. When the rod became disconnected it acted much like an axe and chopped through the bottom of the cylinder.

.......and some people are REUSING the stock rod bolts!
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-01-2010, 02:08 PM   #4
Registered User

Join Date: Apr 2010
Location: trenton nj
Posts: 449
are you saying this motor ran for a time [it would take some time for the bolt to back out] with one con rod bolt
extanker is offline   Reply With Quote
Old 11-01-2010, 02:29 PM   #5
Registered User

Join Date: Mar 2008
Location: NH
Posts: 110
I have seen rod bolts break (not on a Porsche) mostly on Toyota 4 cylinders and once a 2.3 Pontiac quad 4. Toyota had a run on them at one time.

they tend to break on the shank midway between the head and threads.

once the bolt breaks the bearing usually come out of position, slips under its mate then breaks the opposite rod bolt.

usually catastrophic damage ensues.
__________________
NH
Frank M is offline   Reply With Quote
Old 11-01-2010, 02:35 PM   #6
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by extanker
are you saying this motor ran for a time [it would take some time for the bolt to back out] with one con rod bolt
Yes... And its not the first time we have seen this.. I have seen an engine run fine with one rod bolt shot through the top of the case! It was taken to a dealership and they didn't know what the bolt was or where it was from!

The engine ran like this for a good while, until the remaining bolt snapped from seeing double the normal load as it was trying to retain the rod cap all by it's self.

Look closely, the bolt in the picture never broke. Its also not stripped.. It literally fell out during engine operation.

.....and people wonder why the only engines I'll warranty are ours with full upgrades!
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-01-2010, 04:14 PM   #7
Registered User

Join Date: Aug 2005
Location: Sanford NC
Posts: 2,319
I think Porsche should charge Jake

for the entertainment value they provide ... so many puzzles and weird failure modes for him to marvel over.
mikefocke is offline   Reply With Quote
Old 11-01-2010, 04:20 PM   #8
Registered User

Join Date: Jun 2008
Location: Illinois
Posts: 143
Send a message via AIM to cnavarro
Quote:
Originally Posted by Jake Raby
Yes... And its not the first time we have seen this.. I have seen an engine run fine with one rod bolt shot through the top of the case! It was taken to a dealership and they didn't know what the bolt was or where it was from!

The engine ran like this for a good while, until the remaining bolt snapped from seeing double the normal load as it was trying to retain the rod cap all by it's self.

Look closely, the bolt in the picture never broke. Its also not stripped.. It literally fell out during engine operation.

.....and people wonder why the only engines I'll warranty are ours with full upgrades!
Just like the '06 Cayman the local dealership dived into. The rod bolts were finger tight! Probably would have suffered the same fate if driven any longer.
__________________
Charles Navarro
LN Engineering
http://www.LNengineering.com
President and Founder
cnavarro is offline   Reply With Quote
Old 11-01-2010, 04:55 PM   #9
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by mikefocke
for the entertainment value they provide ... so many puzzles and weird failure modes for him to marvel over.
My trophy shelf of blown up parts sure does grow quick! What took me 20 years to accumulate with aircooled failures I'll have far exceeded with the M96 in less than half that time!

I've never seen so much carnage from driving the speed limit!
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-02-2010, 07:14 AM   #10
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424

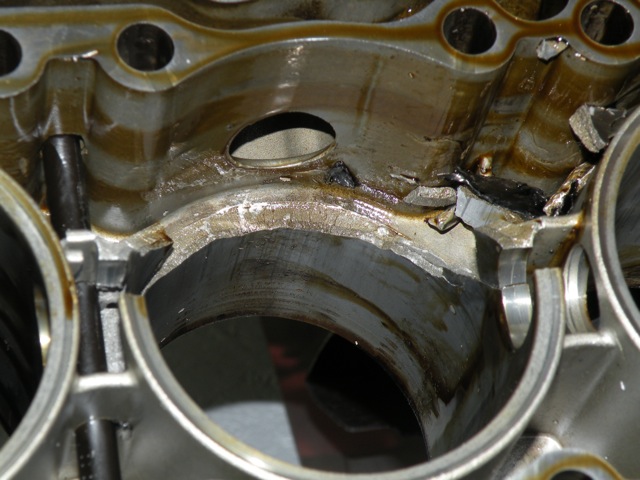

We finished the autopsy.. The entire bottom end of the engine was garbage..
AWESOME! Now to induct these onto the trophy shelf as offerings to the Gods of speed!
Attached Images

__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-02-2010, 08:03 AM   #11
Registered User

Join Date: Nov 2008
Location: S'toon SK. Canada
Posts: 116
Unhappy the view..

from an engineering POV it is awesome to see these things scattered about, but as a customer driving the same thing I cringe...

what a condemnation of Porsche business management over quality
__________________
claus

03.r1100s, 06.boxster - black sheep, 05 B5.5Tdi, auf adlers fluegeln getragen
litteng is offline   Reply With Quote
Old 11-02-2010, 08:12 AM   #12
Registered User

Join Date: Mar 2008
Location: NH
Posts: 110
Unhappy

With that blackening on the big end, it looks like the rod bearing had been spinning prior to snapping the other bolt.
__________________
NH
Frank M is offline   Reply With Quote
Old 11-02-2010, 08:30 AM   #13
Registered User

Join Date: Apr 2010
Location: Wichita; KS
Posts: 144
Any idea if this engine been opened up before or was it a factory built motor?
__________________
2000 New Beetle / in search of 03 986S triple black
Caractere kit seam sealed, Caractere rear wing, 1 3/4" drop on coilovers, 235/40/18 Kuhmo XS on 18x8 Millie Miglia Spider II's, H2sport spindles, H&R front Sway bar, O-bar rear torsion, VF Eng. motor mounts, G60 12# flywheel, Nuespeed P-flow intake, Forge DV, Samco IP, Custom K04 turbo and Upsolute chip, 4 bar fpr, TT 2 1/2" SS DP, 2 1/2" custom stainless exhaust no muffler, Peleguin LSD, B&M SS, Momo 14" wheel, R32 steering rack.
yelojkt is offline   Reply With Quote
Old 11-02-2010, 08:44 AM   #14
Registered User

BYprodriver's Avatar

Join Date: Oct 2008
Location: O.C. CA
Posts: 3,188
Garage
Quote:
Originally Posted by litteng
from an engineering POV it is awesome to see these things scattered about, but as a customer driving the same thing I cringe...

what a condemnation of Porsche business management over quality
Maybe Porsche is outsourceing engine assembly or remanufacturing.

Excellent example of why critical bolts don't get installed without final torqueing.
BYprodriver is offline   Reply With Quote
Old 11-02-2010, 09:19 AM   #15
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by Frank M
With that blackening on the big end, it looks like the rod bearing had been spinning prior to snapping the other bolt.
That happened when just one bolt remained to fasten the rod cap..

The engine still had the factory case half sealant, it had never been torn down.

The bolt wasn't installed loose, the material it is made of and the torque to yield nature of it allowed the bolt to loosen over time and operation.
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-02-2010, 10:22 AM   #16
Registered User

seningen's Avatar

Join Date: Jul 2008
Location: austin
Posts: 730
Quote:
Originally Posted by Jake Raby
Ok...
Who wants to guess what happened first?? I have more pics to share, but they'll give away the mode of failure completely..

See that bolt? what is it? where is it from? It was in perfect condition before it's ride up the "conveyor belt" (timing chain) where it met the exhaust cam and thats finished the engine off.

This happened at 60 MPH, the car wasn't on the track.. Bazaar!
Nice rod bolt where did you find the nut?

as hard as those damn things are to break loose (I must be a whuss, I need a breaker bar to move them), hard to believe they will come loose on their own and back out.

Bummer.

We've switched to ARP rod bolts on our builds, hope they fair a little better.

M
__________________
Drivers: '08 Cayenne Turbo, 96 993 Çab/Tip (wife's) & '92 964 Cab
Race Cars: '75 911 RSR Clone & '99 Spec Boxster
mike@lonestarrpm.com
seningen is offline   Reply With Quote
Old 11-02-2010, 09:36 PM   #17
Registered User

Join Date: Jan 2007
Location: Depends on the day of the week....
Posts: 1,400
Quote:
Originally Posted by seningen
Nice rod bolt where did you find the nut?

as hard as those damn things are to break loose (I must be a whuss, I need a breaker bar to move them), hard to believe they will come loose on their own and back out.

Bummer.

We've switched to ARP rod bolts on our builds, hope they fair a little better.

M
The stock rods are cracked cap design and do not use a rod nut- the bolt threads into the rod itself.
__________________
Boxster S
Cloudsurfer is offline   Reply With Quote
Old 11-03-2010, 08:45 AM   #18
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
The ARP rod bolts are still in development here.. I approach these things that will be included on our engines with extreme care. We'll be running a set in our ITR car next season, I plan on a tear down at 20 hours to measure stretch and etc compared to the stock units.

The main reason for this is to find the optimum torque values and procedures, things that the MFR normally can't dictate absolutely and only practical application will quantify.

Until then the billet rods are the only proven solution as they use an ARP custom aged bolt that I have 13 years of experience with at outputs over 650HP.
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
Old 11-03-2010, 03:05 PM   #19
Porsche Purist

Paul's Avatar

Join Date: Aug 2003
Location: Wisconsin
Posts: 2,038
Garage
Nice description of yet another failure mode. You're having way too much fun at work, makes my day seem boring!
__________________
1998 Boxster with 7.8 DME, 2005 3.6 liter/325 hp, Variocam Plus, 996 Instrument panel
2001 Boxster bought new. Installed used motor at 89k.
1987 924S 2002 996TT PST2
Owned and repaired Porsches since 1974. Have driven them all the way the Dr intended...
Paul is offline   Reply With Quote
Old 11-03-2010, 03:43 PM   #20
Engine Surgeon

Join Date: Aug 2008
Location: Cleveland GA USA
Posts: 2,424
Quote:
Originally Posted by Paul
Nice description of yet another failure mode. You're having way too much fun at work, makes my day seem boring!

Thats just it...
This isn't work When it becomes work I'll sell the whole place and go find a job. I promise.
__________________
Jake Raby/www.flat6innovations.com
IMS Solution/ Faultless Tool Inventor
US Patent 8,992,089 &
US Patent 9,416,697
Developer of The IMS Retrofit Procedure- M96/ M97 Specialist
Jake Raby is offline   Reply With Quote
