Pic of removed airbox?

Hi guys,

I am planning on making my own airbox and would like to know if anyone has any pictures of the stock unit after its been removed?

Failing that, are there any hints/tips on how to remove it? I have heard that you have break it to remove it?

Thanks,
Sam
sparker is offline   Reply With Quote
Old 10-27-2010, 03:48 AM   #2
Registered User

Jaxonalden's Avatar

Join Date: Mar 2008
Location: Oklahoma City
Posts: 1,209
Garage
I can get you a picture of mine tonight (27 Oct) when I get back from work.
__________________
Sadly on the outside looking in.
"Drive it like the Doctor ordered"
Jaxonalden is offline   Reply With Quote
Old 10-27-2010, 02:13 PM   #3
Registered User

Join Date: Apr 2009
Location: Australia
Posts: 328
That'd be great - cheers!
Sam
sparker is offline   Reply With Quote
Old 10-27-2010, 05:38 PM   #4
Registered User

Jaxonalden's Avatar

Join Date: Mar 2008
Location: Oklahoma City
Posts: 1,209
Garage

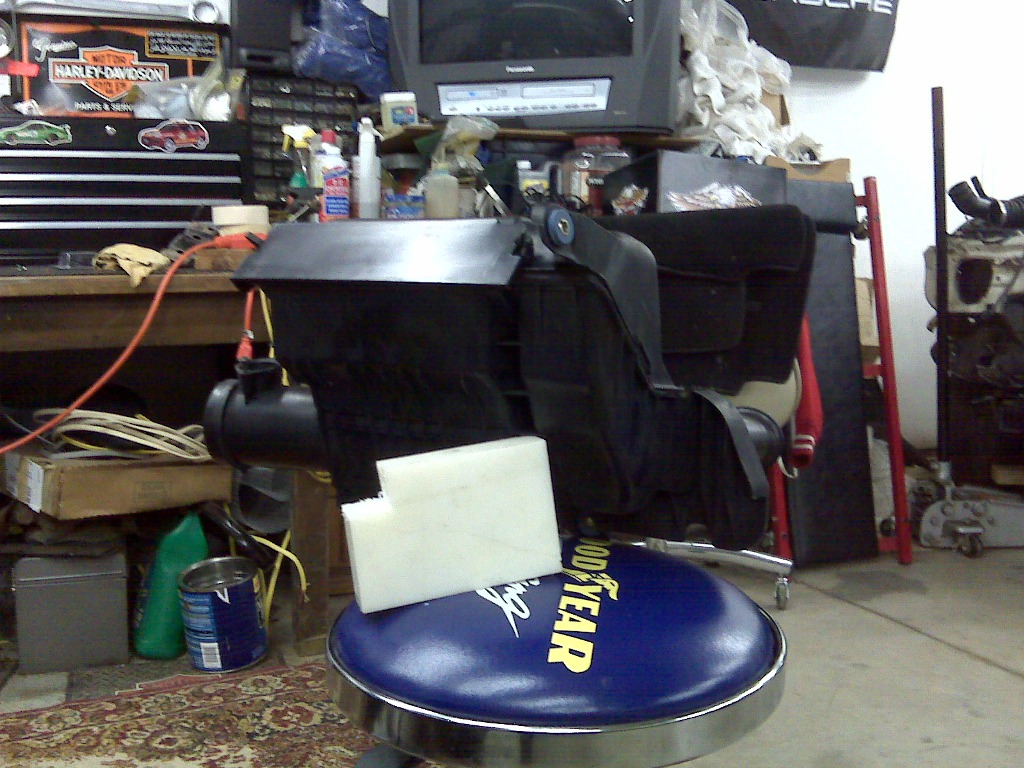

Here you go Sparker, I have a couple more to go.
