Spark Plug Tube Removal Tool

Saw this on another site

Attached Images


Last edited by fanguy; 12-03-2016 at 07:56 PM.
fanguy is offline   Reply With Quote
Old 12-04-2016, 02:38 AM   #2
Registered User

kjc2050's Avatar

Join Date: Oct 2012
Location: Wake Forest, NC
Posts: 867
Garage
Has been discussed/debated at length.
__________________
2000 Boxster S, 6 speed, Sport Package, Litronics, LED tail lights, LNE IMS-B, OBC, Skybreaker wind deflector, Arctic Silver/Graphite Grey
kjc2050 is offline   Reply With Quote
Old 12-04-2016, 05:15 AM   #3
Registered User

Join Date: Aug 2016
Location: USA
Posts: 149
Good to know
fanguy is offline   Reply With Quote
Old 12-04-2016, 08:22 AM   #4
Registered User

Join Date: May 2011
Location: Miami florida
Posts: 1,591
Yes. That tool works very well. Clean the tube thoughly then wrap the plug with sandpaper. The secret is not to tighten the plug too much. Tighten it a bit and pull on it. The plug should pull out. Repeat and eventually the tube will pop out.
__________________
Current car

2000 Boxster 2.7l red/black

Previous cars

1973 Opel Manta
1969(?) Fiat 850 Convertible
1979 Lancia Beta Coupe
1981 Alfa Romeo GTV 6
1985 Alfa Romeo Graduate
1985 Porsche 944
1989 Porsche 944
1981 Triumph TR7
1989 (?) Alfa Romeo Milano
1993 Saab 9000
san rensho is offline   Reply With Quote
Old 12-04-2016, 03:50 PM   #5
Motorist & Coffee Drinker

78F350's Avatar

Join Date: Jul 2014
Location: Oklahoma
Posts: 3,663
Garage
~4.5" bolt, 2 nuts, 2 washers, and optional scrap of rubber tubing.


I built one after seeing this thread: Spark plug tubes

healthservices even made an animation of it in use. For me it has worked flawlessly.
__________________
I am not an attorney, mechanic, or member of the clergy. Following any advice given in my posts is done at your own peril.
78F350 is offline   Reply With Quote
Old 12-09-2016, 12:42 PM   #6
Registered User

Join Date: May 2014
Location: S.California
Posts: 2,027
78F350 has the best practical suggestion- again !
#5 is way better than the bung in my experience.
Just be gentle
Gelbster is offline   Reply With Quote
Old 12-19-2016, 08:19 AM   #7
Santa Barbara, CA

Join Date: Mar 2016
Posts: 38

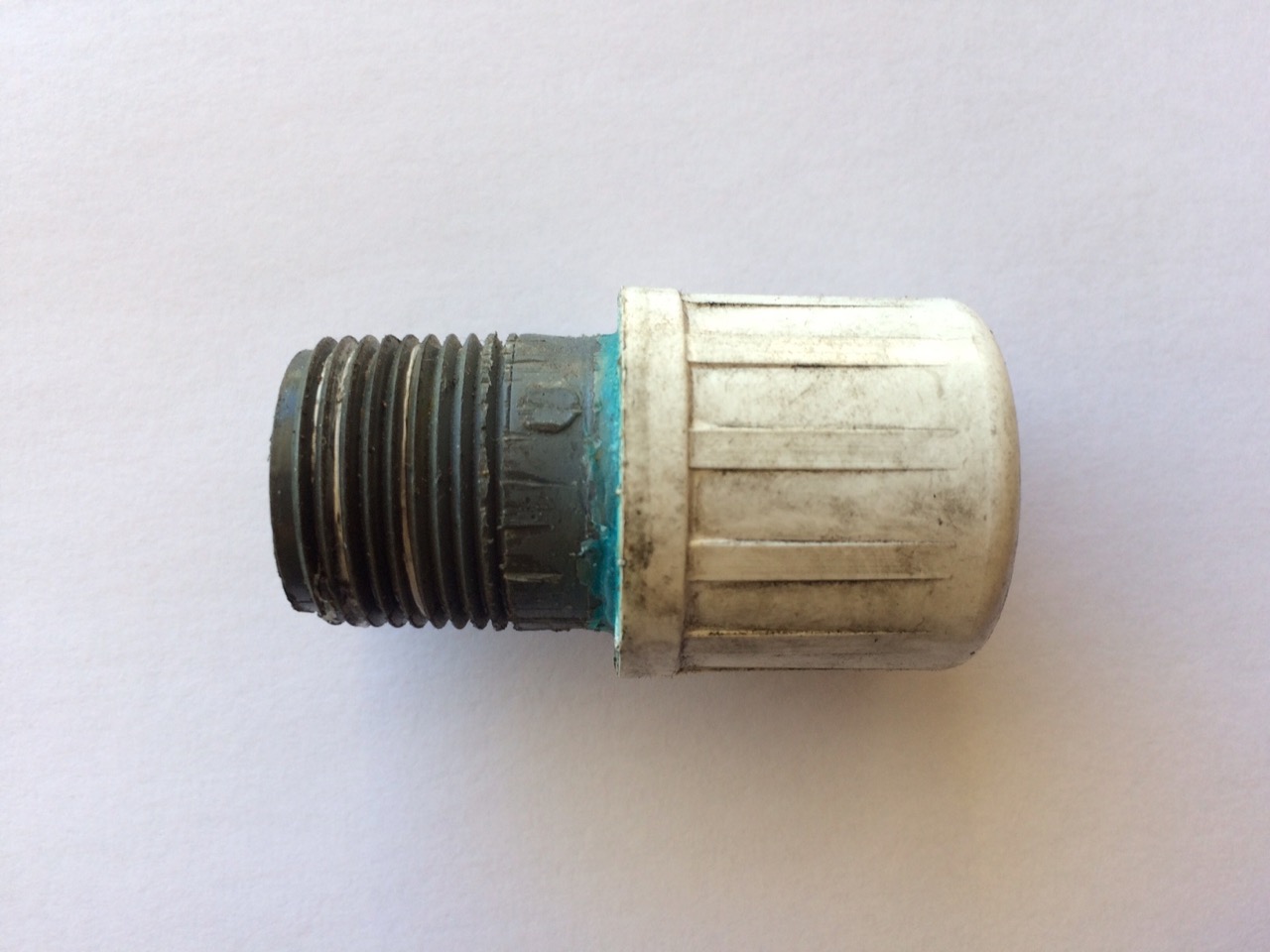

Yet another DIY Spark Tube tool.

This worked for me, just a short threaded 3/4"x 2" PVC nipple with an end cap.

I threaded it slightly into the spark tube and with a bit of wiggling out they came without removing the spark plugs first.


http://986forum.com/forums/attachments/diy-project-guides/20616d1482167501-spark-plug-tube-removal-tool-spark-tupe-tool-1.jpg
Attached Images

jvfante is offline   Reply With Quote
Old 05-26-2021, 07:09 PM   #8
Registered User

Join Date: Aug 2017
Location: Tucson,az
Posts: 690
So with the # 5 process does the washer fit the groove that the O-ring is in or does it try and catch the very back of the tube it self.? Thanks
flmont is offline   Reply With Quote
Old 05-26-2021, 07:14 PM   #9
Registered User

Join Date: Aug 2017
Location: Tucson,az
Posts: 690
Thanks jvfante..I will also try that process,.Maybe I was tightening the boat plug to tight but not sure how that would result in it always pulling out. Thanks !
flmont is offline   Reply With Quote
Old 05-26-2021, 07:42 PM   #10
Registered User

Join Date: Aug 2018
Location: Woodland Wa
Posts: 1,291
Quote:
Originally Posted by flmont View Post
So with the # 5 process does the washer fit the groove that the O-ring is in or does it try and catch the very back of the tube it self.? Thanks
Very back of the tube.
blue62 is offline   Reply With Quote
Old 08-27-2023, 01:48 PM   #11
Registered User

Join Date: Aug 2023
Location: COLORADO
Posts: 1
I've used all three. In order of effectiveness:
3/4" pipe with 3/4" handle
Lag bolt and washers
Boat plug
Poudre1999 is offline   Reply With Quote
Old 08-28-2023, 04:55 AM   #12
Registered User

Join Date: Feb 2005
Location: It's a kind of magic.....
Posts: 6,273
__________________
Anything really new is invented only in one’s youth. Later, one becomes more experienced, more famous – and more stupid.” - Albert Einstein
JFP in PA is offline   Reply With Quote
Old 12-09-2023, 02:50 PM   #13
Registered User

lkchris's Avatar

Join Date: Jan 2014
Location: Albuquerque, NM, USA
Posts: 730
Which is ...

https://www.rauchandspiegel.com/product/ultimate-porsche-986-996-spark-plug-removal-tool/
__________________
Kent Christensen
Albuquerque
2001 Boxster
2007 GL320 CDI, 2010 CL550
2 BMW motorcycles
lkchris is offline   Reply With Quote
Old 12-16-2023, 01:52 PM   #14
Registered User

Join Date: May 2023
Location: Oakland, CA
Posts: 135
I just did mine using a 5” bolt, two washers and two nuts. I used one of the washers at the end to tug on (similar to what many here have done). They popped right out and the new tubes and o rings fit a little more snug.

Of note, all of my coil packs and tubes looked great, but I put new ones in anyway bc I don’t want to go back in there for a long time. Fitting my torque wrench for the spark plugs was challenging in some areas. Removing the engine cover helped a lot on the passenger side.

__________________
2001 Boxster S | Triple Black | Stock 17s | Bilstein PSS9s | 9x7 Shift Console

"Sixty percent of the time, it works every time!"
Danimal is offline   Reply With Quote
