Triple Square Clearance Issues on 6 Speed

I bought the Pelican 10mm triple square tool in anticipation of using it to remove my 2000S 6 speed trans, but the tool is way too long and hits the trans case so there is no real way to seat it properly or turn it. Anyone have any ideas on an alternate tool that works? I have thought about cutting this one down and using a 13mm socket and a swivel. I'm open to any other methods.

Benjamin
__________________
2000 986 S - "The Black Widow"
Benjamin is offline   Reply With Quote
Old 04-04-2014, 04:17 PM   #2
Registered User

DennisAN's Avatar

Join Date: Mar 2014
Location: Boise, ID
Posts: 111
Some get the raw bit, cut it down, then slip a 10mm box wrench over it.

Snap-on makes a very short stubby version for their triple squares, under the budget "Blue Point" label. I got one for the 16mm 5 speed drain plug. Try their website - shipping is free. Price for the 10mm is $8.50. Socket Driver, Metric, Triple Square, Stubby XZN, Blue-Point, 10mm
__________________
Base 2000 986, beater 1996 Miata, 2011 Suzuki SX4 AWD
Feline mechanics Condoleezza and Dukie
DennisAN is offline   Reply With Quote
Old 04-04-2014, 04:19 PM   #3
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage

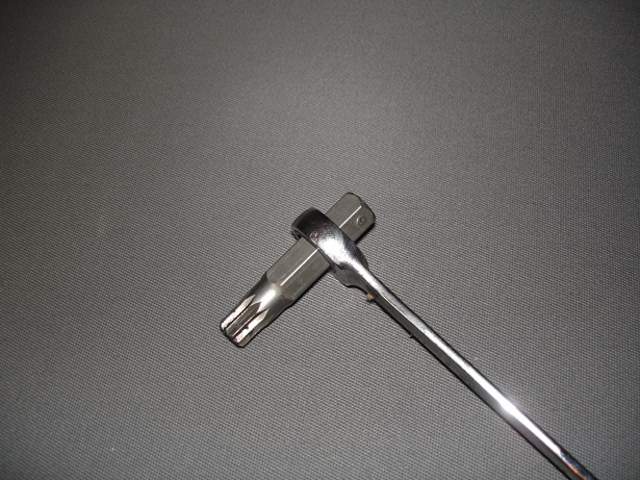

Yes, cut the bit and do this:
__________________
Jäger

300K Mile Club
Jager is offline   Reply With Quote
Old 04-04-2014, 04:23 PM   #4
Registered User

Benjamin's Avatar

Join Date: May 2012
Location: Kalamazoo, MI
Posts: 149
Garage
Ok, I can do the cut and box end wrench routine, but how do you torque it properly when you go to reinstall?
__________________
2000 986 S - "The Black Widow"
Benjamin is offline   Reply With Quote
Old 04-04-2014, 04:27 PM   #5
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage
That particular bolt does not have to be too tight. I have read where some members replaced with a regular bolt… Just a thought.
__________________
Jäger

300K Mile Club
Jager is offline   Reply With Quote
Old 04-04-2014, 04:29 PM   #6
Beginner

Jamesp's Avatar

Join Date: Mar 2013
Location: Houston
Posts: 1,659
Garage
Pull on the wrench really hard. Sometimes you just gotta do what you gotta.do.
__________________
2003 S manual
Jamesp is offline   Reply With Quote
Old 04-04-2014, 04:37 PM   #7
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage
And if I remember correctly it was a 11mm wrench on that bit... Make sure you have that size.
__________________
Jäger

300K Mile Club
Jager is offline   Reply With Quote
Old 04-04-2014, 04:54 PM   #8
Registered User

DennisAN's Avatar

Join Date: Mar 2014
Location: Boise, ID
Posts: 111
Quote:
Originally Posted by Benjamin View Post
Ok, I can do the cut and box end wrench routine, but how do you torque it properly when you go to reinstall?
Well....you could slip a crowfoot onto it with your torque wrench, and lower the setting a bit. Torque is only 33 ft. lbs. IIRC.
__________________
Base 2000 986, beater 1996 Miata, 2011 Suzuki SX4 AWD
Feline mechanics Condoleezza and Dukie
DennisAN is offline   Reply With Quote
Old 04-04-2014, 05:49 PM   #9
Rennzenn

j.fro's Avatar

Join Date: Feb 2005
Location: Virginia
Posts: 1,355
Garage
Quote:
Originally Posted by Jamesp View Post
Pull on the wrench really hard. Sometimes you just gotta do what you gotta.do.
das is de procedure un der factorie
__________________
Rennzenn
Jfro@rennzenn.com
j.fro is offline   Reply With Quote
Old 04-04-2014, 06:13 PM   #10
Registered User

Join Date: Dec 2009
Location: Orange County, CA
Posts: 1,228
Quote:
Originally Posted by Jager View Post
That particular bolt does not have to be too tight. I have read where some members replaced with a regular bolt… Just a thought.
Two weeks ago I removed my gearbox and after a searching for the proper tool, cutting it to size so would fit properly and everything, just to find out that the dealer that had replaced the crank seal (under warranty) had left this bolt finger tight... LOL

I will replace it with a bolt with the same head as the all the ones...

.
Gilles is offline   Reply With Quote
Old 04-04-2014, 07:01 PM   #11
Registered User

jb92563's Avatar

Join Date: Apr 2012
Location: Riverside, CA
Posts: 1,664
You could do the math and use a fish scale for the pull.

Say your wrench was 12 inches long, then pull on it to 33 lbs at the end, and you will have torqued it to 33 ft/lbs.

easy peasey!

Ie 8" wrench would be 12/8 x 33= 49.5lbs of pull at the end of the wrench and agin you have 33ft/lbs of torque
__________________
"It broke because it wants to be Upgraded "
2012 Porsche Performance Driving School - SanDiego region
2001 Boxster S, Top Speed muffler, (Fred's) Mini Morimotto Projectors, Tarret UDP,
Short Shifter, Touch Screen Dual Din Radio, 03 4 Bow glass Top (DD & Auto-X since May 17,2012)

Last edited by jb92563; 04-04-2014 at 07:04 PM.
jb92563 is offline   Reply With Quote
Old 04-05-2014, 05:14 AM   #12
Registered User

Join Date: Sep 2009
Location: The City
Posts: 1,084
Garage
omg... science. it is too much. Gut n tight for me. but thanks for the knowledge!
Lobo1186 is offline   Reply With Quote
Old 04-05-2014, 06:46 AM   #13
Registered User

Join Date: Nov 2009
Location: Winnipeg MB
Posts: 2,486
Quote:
Originally Posted by jb92563 View Post
You could do the math and use a fish scale for the pull.

Say your wrench was 12 inches long, then pull on it to 33 lbs at the end, and you will have torqued it to 33 ft/lbs.

easy peasey!

Ie 8" wrench would be 12/8 x 33= 49.5lbs of pull at the end of the wrench and agin you have 33ft/lbs of torque
this goes in my handy tips book!
__________________
'99 black 986
Mark_T is offline   Reply With Quote
Old 04-05-2014, 07:24 AM   #14
Registered User

Benjamin's Avatar

Join Date: May 2012
Location: Kalamazoo, MI
Posts: 149
Garage
Quote:
Originally Posted by Jager View Post
And if I remember correctly it was a 11mm wrench on that bit... Make sure you have that size.

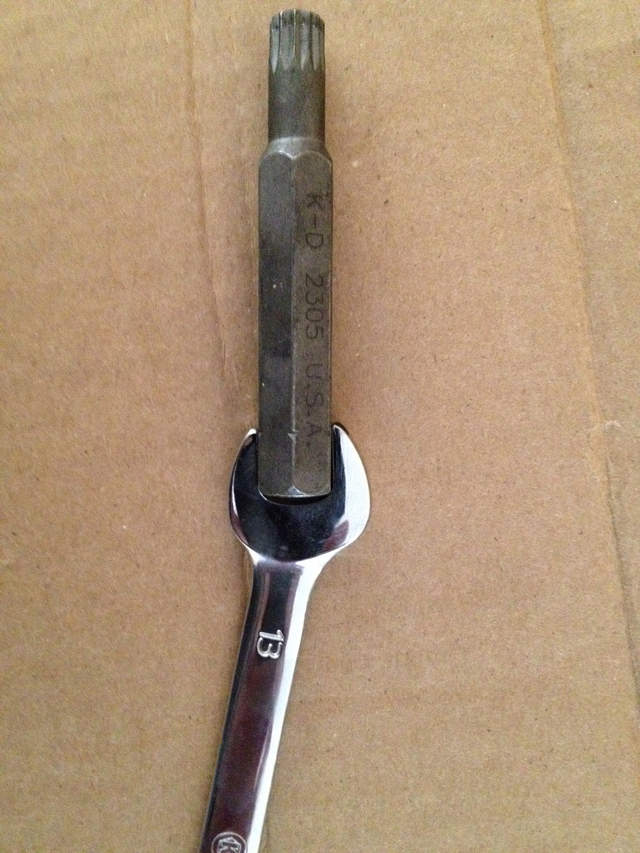

Mine happens to be a 13mm.
__________________
2000 986 S - "The Black Widow"
Benjamin is offline   Reply With Quote
Old 04-05-2014, 09:47 AM   #15
Registered User

Benjamin's Avatar

Join Date: May 2012
Location: Kalamazoo, MI
Posts: 149
Garage
Yep, that worked. It was torqued quite a bit, or maybe it just seemed that way because I was using a wrench instead of an 18 inch breaker bar. The trans and clutch are now off and I'm about to research methods of locking the flywheel for bolt removal. I also found that I only have one guide sleeve, so I need to see how many are missing and make another parts order.

Thanks for the help, everyone!
__________________
2000 986 S - "The Black Widow"
Benjamin is offline   Reply With Quote
Old 04-05-2014, 11:04 AM   #16
Registered User

woodsman's Avatar

Join Date: Feb 2013
Location: Land of naught
Posts: 1,302
Quote:
Originally Posted by Jager View Post
That particular bolt does not have to be too tight. I have read where some members replaced with a regular bolt… Just a thought.
ah now and spoil the fun for the next guy?
__________________
Death is certain, life is not.
woodsman is offline   Reply With Quote
Old 04-05-2014, 02:50 PM   #17
Registered User

jsceash's Avatar

Join Date: Aug 2009
Posts: 1,403
Garage
Quote:
Originally Posted by Benjamin View Post
Mine happens to be a 13mm.
I have this same one. I cut mine off with a die Grinder right below the D in K-D
__________________
2003 Black 986. modified for Advanced level HPDE and open track days.
* 3.6L LN block, 06 heads, Carrillo H rods, IDP with 987 intake, Oil mods, LN IMS. * Spec II Clutch, 3.2L S Spec P-P FW. * D2 shocks, GT3 arms & and links, Spacers front and rear * Weight reduced, No carpet, AC deleted, Remote PS pump, PS pump deleted. Recaro Pole position seats, Brey crouse ext. 5 point harness, NHP sport exhaust
jsceash is offline   Reply With Quote
Old 04-05-2014, 05:09 PM   #18
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage
Quote:
Originally Posted by Benjamin View Post
Yep, that worked. It was torqued quite a bit, or maybe it just seemed that way because I was using a wrench instead of an 18 inch breaker bar. The trans and clutch are now off and I'm about to research methods of locking the flywheel for bolt removal. I also found that I only have one guide sleeve, so I need to see how many are missing and make another parts order.

Thanks for the help, everyone!
Locking the flywheel? Get yourself a 6" piece of steel bar and drill a small hole at one end (large enough to go over one of the pins on the flywheel) and another hole at the other end (large enough to insert one of the transmission bolts through it). Use one of the transmission bolts to anchor the bar (make sure it is threaded well into the motor) and slide the other end of the bar over one of the pins on the flywheel.
__________________
Jäger

300K Mile Club
Jager is offline   Reply With Quote
Old 04-05-2014, 06:05 PM   #19
Registered User

Benjamin's Avatar

Join Date: May 2012
Location: Kalamazoo, MI
Posts: 149
Garage
Thanks, I did that except I used .125 aluminum because that's what I had. I also used one of the clutch housing screws because it seemed like it could slip off the pins. It worked great, but boy it took a lot of muscle to get the flywheel bolts off.

Now I'm trying to decipher the LN instructions as to which cam plug to remove. Also whether to just loosen or remove the tensioners.
__________________
2000 986 S - "The Black Widow"
Benjamin is offline   Reply With Quote
Old 04-06-2014, 07:31 AM   #20
Registered User

Jager's Avatar

Join Date: Jul 2010
Location: California
Posts: 1,809
Garage
Front, passenger side:



I removed the tensioners.
