oil cloud when running hard

Wondering if I get a better response here...

I thought was the AOS, so I replaced it.

Possible bad new AOS?


The car smokes on start up and clears after running about 5 mins.

under hard accel as soon as it hit 5800 RPM it will belch out a thick cloud of smoke that will cause people behind me to pull over.

Under a couple of the test drives the computer will throw a code for bank one O2 making me think it is a issue with oil scavenging out of one of the heads?

Help!
healthservices is offline   Reply With Quote
Old 08-20-2012, 09:03 AM   #2
Ex Esso kid

Join Date: Dec 2005
Location: NY
Posts: 1,605
Shot in the dark, 986 is not the easiest car to get an accurate oil measure on, I don't think I ever got that dipstick out with a reading on it and the digital can't tell you if it's a hair overfull. I know this doesn't account for the o2 sensor but it's free to check.
Ghostrider 310 is offline   Reply With Quote
Old 08-20-2012, 11:47 AM   #3
Registered User

jb92563's Avatar

Join Date: Apr 2012
Location: Riverside, CA
Posts: 1,664
Sounds like you have a James Bond feature for evading pursuers.
Isn't that a feature rather than a problem


Are those white clouds or bluish clouds of smoke?

On a typical car that blows bluish smoke when you stomp on the gas, it is the burning of excess oil in the cylinders.

The excess oil got there because:

1) Cylinder rings are damaged (blow by) or seized in their groves (Rings not sealing or scraping oil from cylinders).

2) Engine ingesting excessive amounts of oil from the AOS.

3) ?????

White Clouds = coolant getting into cylinders
Could indicate a blown head gasket or something worse (Cracked cylinder wall)

Check the coolant reservoir for oil, and check the engine oil for coolant.


Since you have already been mucking about with the AOS I would start there and make sure all the hoses are good and connections secure.

After that I would pull all the plugs and see if any are oily and black instead of a tan brown.

If you find an oily one then Fiber optic the cylinder to see if you can spot any cracks in the cylinders or head.

Beyond that its probably specialist/mechanic work.
__________________
"It broke because it wants to be Upgraded "
2012 Porsche Performance Driving School - SanDiego region
2001 Boxster S, Top Speed muffler, (Fred's) Mini Morimotto Projectors, Tarret UDP,
Short Shifter, Touch Screen Dual Din Radio, 03 4 Bow glass Top (DD & Auto-X since May 17,2012)
jb92563 is offline   Reply With Quote
Old 09-02-2012, 08:20 PM   #4
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
https://www.youtube.com/watch?v=M0TSAyRs8AI

I wonder if the person at the light got thru okay?

healthservices is offline   Reply With Quote
Old 09-02-2012, 10:02 PM   #5
Certified Boxster Addict

Join Date: Nov 2010
Location: Los Angeles
Posts: 7,426
Video looks like an AOS problem. Hard to believe that a new one was bad so I'd check all of the connections, tubes, etc.
__________________
1999 996 C2 - sold - bought back - sold for more
1997 Spec Boxster BSR #254
1979 911 SC
POC Licensed DE/TT Instructor
thstone is offline   Reply With Quote
Old 09-08-2012, 10:29 AM   #6
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
after replacing the AOS a second time it looks like I may have found the real problem.

there is a over pressure valve in the system that of all things vents to atmosphere!

If course it is not called that.

Lets see if cleaning it will help. It was all clogged up. This is why you change your oil and often.

healthservices is offline   Reply With Quote
Old 09-09-2012, 08:08 AM   #7
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
Well this does not look good. I took off the AOS and started the car. There seems to be more oil moving around than there should be. Am I wrong? Bad pump in the head?

https://www.youtube.com/watch?v=oQHvBhHhdQw&feature=youtube_gdata_player



Yes the camera was covered in oil at the end of the recording.

I'm going to plug this port up so the AOS will be sucking from the driver's side to see what happens.

Remember this is not under load, not as high rpm, and and not under acceleration.

Blocked suction port?

Last edited by healthservices; 09-09-2012 at 08:24 AM.
healthservices is offline   Reply With Quote
Old 09-09-2012, 12:29 PM   #8
Registered User

BYprodriver's Avatar

Join Date: Oct 2008
Location: O.C. CA
Posts: 3,188
Garage
Wow nice camera work. That is alot of oil really close to the AOS. What was the top rpm?? The oil scavenge pumps are pretty much off or on. They are direct drive from the exhaust cam gear driven by chain from the IMS, so if the engine is running the head scavenge pump is working.
BYprodriver is offline   Reply With Quote
Old 09-10-2012, 07:45 AM   #9
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
About 4 k peak in this video. Under acceleration I guess it would be worst as the oil would pool at the back of the head.


I have no history on this car other than the owner replaced things as they broke. maybe a blocked suction port? I'll try to remove the pump today to inspect.

The underside is a mess
healthservices is offline   Reply With Quote
Old 09-10-2012, 01:54 PM   #10
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
Well I cleaned the underside of 10 years of crap. Every time I touched the car my hands we're caKed with black crud. Hopefully this will make it a little easier to work on.

Too bad the driveway is now covered with this stuff

Sent from my SAMSUNG-SGH-I717 using Tapatalk 2
healthservices is offline   Reply With Quote
Old 09-19-2012, 04:30 PM   #11
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
Oh my god what did I just get myself into?

Sent from my SAMSUNG-SGH-I717 using Tapatalk 2
Attached Images

healthservices is offline   Reply With Quote
Old 09-19-2012, 06:21 PM   #12
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
well i took apart the pump and it looks normal... pump pick up?
healthservices is offline   Reply With Quote
Old 09-19-2012, 07:27 PM   #13
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014



Look at this, should the oil level be even with the bottom of the oil pump opening?

could pump pickup at the bottom of the valve cover plugged or is this normal?
healthservices is offline   Reply With Quote
Old 09-20-2012, 07:55 AM   #14
Registered User

jb92563's Avatar

Join Date: Apr 2012
Location: Riverside, CA
Posts: 1,664
Smoke looks bluish so its probably excess oil going through the engine.

Have you checked the plugs?

If one cylinder is darker then it might be a ring or valve problem.

If all are equally colored then its probably some excess oil getting into the induction system somehow.

Overfilled oil could also be suspect especially if you did any oil change or top ups right before it started.
__________________
"It broke because it wants to be Upgraded "
2012 Porsche Performance Driving School - SanDiego region
2001 Boxster S, Top Speed muffler, (Fred's) Mini Morimotto Projectors, Tarret UDP,
Short Shifter, Touch Screen Dual Din Radio, 03 4 Bow glass Top (DD & Auto-X since May 17,2012)
jb92563 is offline   Reply With Quote
Old 09-20-2012, 08:28 AM   #15
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
Quote:
Originally Posted by jb92563 View Post
Smoke looks bluish so its probably excess oil going through the engine.
Thanks Ray but I need some out of the box thinking on this one. Yes it is oil



Quote:
Originally Posted by jb92563 View Post
Have you checked the plugs?
Yes they are all oil fouled



Quote:
Originally Posted by jb92563 View Post
If one cylinder is darker then it might be a ring or valve problem.
nope


Quote:
Originally Posted by jb92563 View Post
If all are equally colored then its probably some excess oil getting into the induction system somehow.
coming in thru the AOS

Quote:
Originally Posted by jb92563 View Post
Overfilled oil could also be suspect especially if you did any oil change or top ups right before it started.
Acts just like that but the oil is not over filled.




healthservices is offline   Reply With Quote
Old 09-20-2012, 09:19 AM   #16
Registered User

Join Date: Jan 2010
Location: Redmond, Wa
Posts: 369
I really hope you find what's wrong.
I have a similar problem, 6 month after changing AOS it started leaking, just a touch, a couple of drops every other way.. and it only leaks when I bring it to redline.

Good luck and keep us informed!

Sasha
sasha055 is offline   Reply With Quote
Old 09-20-2012, 10:46 AM   #17
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014

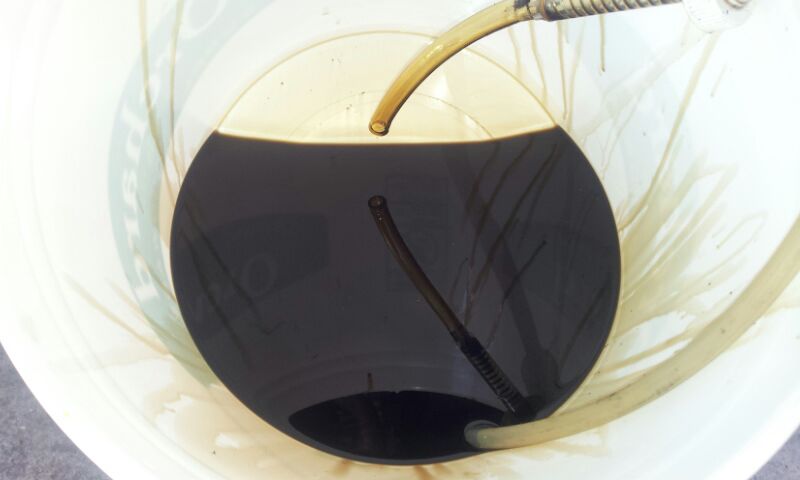

Look at how much oil I pulled from the head, looks more than two quarts.

Sent from my SAMSUNG-SGH-I717 using Tapatalk 2
Attached Images

healthservices is offline   Reply With Quote
Old 09-20-2012, 11:06 AM   #18
Registered User

Join Date: Sep 2008
Location: Florida
Posts: 2,032
Not trying to pile on and not going to help with your current problem, but in the picture showing the axle, it looks like your inner CV boot may be is torn. Is it just the picture (hopefully)?
dghii is online now   Reply With Quote
Old 09-20-2012, 11:21 AM   #19
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
There was a thought that one of the cam plugs was loose or had fallen off.

Sent from my SAMSUNG-SGH-I717 using Tapatalk 2
Attached Images


Last edited by healthservices; 09-20-2012 at 11:36 AM.
healthservices is offline   Reply With Quote
Old 09-20-2012, 11:25 AM   #20
Registered Boxster abuser

healthservices's Avatar

Join Date: Oct 2011
Location: socal
Posts: 1,014
This is the rear one

Sent from my SAMSUNG-SGH-I717 using Tapatalk 2
Attached Images

healthservices is offline   Reply With Quote
