LN Engineering IMS Retrofit. First one, Many to go.

[Series9]

Then verify the cam is in the correct position. I checked it with the cam lock, but couldn't hold it there and take the picture at the same time. You can sort of see the slot in the cam is aligned with the seam in the cam housing.

Anyway, it checked.

[jdiba]

Series9 how many miles were on the car when you did the work, curious....

John

[Series9]

Originally Posted by jdiba

Series9 how many miles were on the car when you did the work, curious....

John

79,xxx


That's weird. I wanted to post just "79,xxx", but it wouldn't let me.

Must be at least 10 characters.

[Series9]

OK. Flywheel bolts came today.

Interesting. The old ones were Torx T50 and the new ones are Torx T55.

No matter.

Here's my non-factory flywheel lock:

[GTA_G20]

pictures/comments of the old IMS bearing condition/state?

[Series9]

Originally Posted by GTA_G20

pictures/comments of the old IMS bearing condition/state?

Were already posted, but I'll say again: Generally good, but the IMS was filled with oil.

[Series9]

The new clutch didn't come with a centering tool. Since this is my first 986 clutch, I didn't have one.

Fortunately the pilot bearing is the same size as a 901 tranny.

Just the right amount of 3M blue tape and we're in business:

[Series9]

And here it is inserted.......

[Series9]

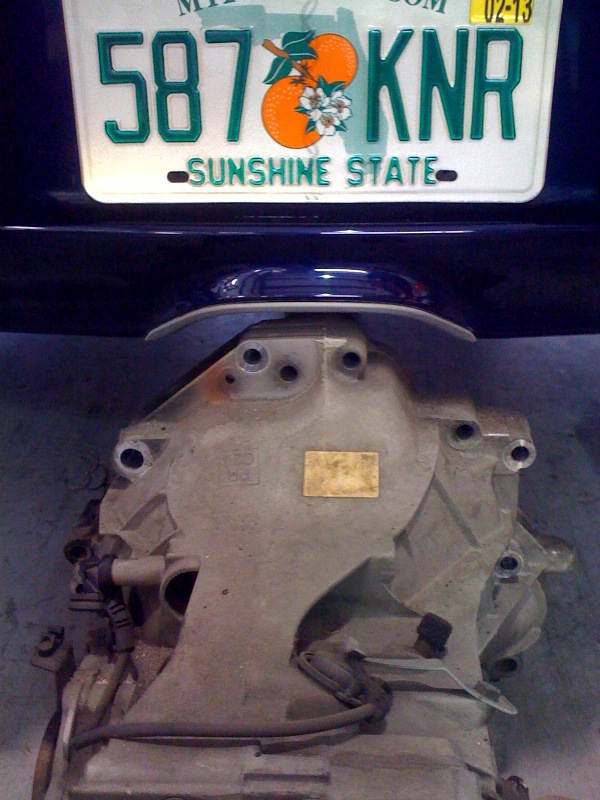

Do you think the centered muffler tips were for this?

And look, I didn't cover the license plate for the picture. I think that's a silly practice. Your license plate spends its entire life in public. Why hide it for internet pictures?


Anyway:

[Series9]

The rest of the assembly was basically the reverse of the disassembly.

Some observations:

The removal of the early muffler is a pain with that contraption of a factory bracket.

Hands-down, the hardest part of the reassembly was the single bolt that held the clutch slave cylinder. I had the car on an overhead lift and cussed for 45 minutes trying to overcome the preload on that thing in order to put a single bolt in place.

The five 16mm (16mm head) bell housing bolts were FRIGGEN' TIGHT. I had to use a 3' breaker bar on two of them to get them out. How did I get a breaker bar on those bolts? 2.5' of combined 1/2" and 3/8" entensions and a 3/8" universal joint set up so I could stand where the muffler resides and use the breaker bar from there.


Special tools:

I didn't have to buy anything, but I did modify tools I had.

1/4" drive 13mm socket got cut down to become a shallow socket to get at the bolts on the muffler bracket.

The triple-square bolt on the bell housing required that I cut down the appropriate TS bit and use an 11mm box-in wrench on it to remove the bolt.

The chain tensioner on the top of the engine required me to cut a 32mm box-in wrench so I could swing it in the confines of the engine bay.

You saw my 901:986 clutch centering tool mod. I just need to source the correct tool.

I made a flywheel retainer that was pictured earlier.



There you go. It's done. The customer (my wife) is happy to have the car back and doesn't understand all the fuss. It was running fine.........

[one914racer]

dan (03 base) and i (97 base) just finished doing the ims upgrade ,started on friday evening and finished sunday 2pm, dan's car has 64xxx miles and my car has 73xxx miles,bearing where fine on both cars,muffler was easy to get out on my 97 car and a pain in the a$$ on the 03 ,i also had to remove the intake tub form the airfilter to throttle body on the 97 and not on the 03
