Identifying RoW M030 and related questions

So, I have a few questions regarding identifying RoW M030 suspension and also some questions regarding the spring compensation plate thickness nand Bilstein dampers.

I picked a used RoW M030 from an early 986 2.5 kit for cheap.

Part number on the rear roll bar is correct for RoW M030. Good start.

1. The paint codes on the springs are:
Front: red yellow
Rear: red red.

From what I can tell that is correct - can anyone confirm?

2. The spring compensation plate paint codes.
Front: Green
Rear: White (I think)

From what I can tell, green means 6.5mm, white means 3mm.

So, do the spring compensation plates effect ride height? Can you use thinner plates to lower the car a little?

3. Finally, one of the rear shocks appeasr to be newer than the rest.
The Bilstein part number is clear: VNE-B332. I've searched the number and from what I can tell it's coming up as a standard Bilsten B4 shock, not an M030 spec shock.

Is that correct? My guess is that the shock failed or was damaged and was replaced with the wrong part.
__________________
Manual '00 3.2 S Arctic Silver

Last edited by pothole; 01-22-2013 at 08:46 AM.
pothole is offline   Reply With Quote
Old 01-22-2013, 09:45 AM   #2
Registered User

DFW02S's Avatar

Join Date: Nov 2010
Location: DFW
Posts: 380
Pelican's catalogue is a good resource.
DFW02S is offline   Reply With Quote
Old 01-22-2013, 12:36 PM   #3
Registered User

Join Date: May 2010
Location: UK
Posts: 874
Yeah, have had a look there already. Doesn't quite cover it.
__________________
Manual '00 3.2 S Arctic Silver
pothole is offline   Reply With Quote
Old 01-22-2013, 01:48 PM   #4
Registered User

Steve Tinker's Avatar

Join Date: Dec 2008
Location: Queensland, Australia
Posts: 1,522
Potty...
I've just removed my ROW shocks and springs from my 2001 Boxster S - they are original factory fittings, but because its a S model, they will be slightly different to yours:

FRONT
Shock: part # 986 343 041 20, pink paint dot.
Spring: blue / yellow paint dots with green paint dot @ top of spring.

REAR
Shock: part # 986 333 051 20, pink paint dot.
Spring: pink / yellow paint dots with white paint dot @ top of spring.
Hope this helps.....
__________________
2001 Boxster S (triple black). Sleeping easier with LN Engineering/Flat 6 IMS upgrade, low temp thermostat & underspeed pulley.
2001 MV Agusta F4.
Steve Tinker is offline   Reply With Quote
Old 01-22-2013, 08:03 PM   #5
Registered User

DFW02S's Avatar

Join Date: Nov 2010
Location: DFW
Posts: 380
Here's a site with drawings.
DFW02S is offline   Reply With Quote
Old 01-23-2013, 06:40 AM   #6
Registered User

Join Date: May 2010
Location: UK
Posts: 874
Quote:
Originally Posted by DFW02S View Post

Yes, unfortunately info there is not comprehensive. The colour codes for the springs I have aren't listed there...
__________________
Manual '00 3.2 S Arctic Silver
pothole is offline   Reply With Quote
Old 01-23-2013, 09:31 AM   #7
Registered User

Spyderman's Avatar

Join Date: Apr 2011
Location: Rockville, MD
Posts: 43
Garage
pothole,

I ordered and installed the RoW M030 suspension component kit from Sunset Porsche/Audi in Portland, OR on my 2001 Boxster 'S'.


RoW M030 Package included the following components:
  • Front Sway Bar – 996.343.701.23 ’30 04’, White dot on bar end
  • Rear Sway Bar – 986.333.701.21 ’24 11’, White dot on bar end
  • Front Struts – 986.343.041.34 ‘Silver’ paint dot on strut body
  • Rear Struts – 986.333.051.30 ‘Silver’ paint dot on strut body
  • Front Springs – 986.343.531.15 504 ‘Red/Yellow’ paint marks on bottom, ‘Orange’ paint mark at top
  • Rear Springs – 986.333.531.30 504 ‘Red/Silver’ paint marks on bottom, ‘White’ paint mark at top
Not sure if this helps, but more data points for your consideration. Good luck!
Spyderman is offline   Reply With Quote
Old 01-23-2013, 01:02 PM   #8
Registered User

DFW02S's Avatar

Join Date: Nov 2010
Location: DFW
Posts: 380
Here's a pic of the ROW M030 spring set I have for my '02S.


DFW02S is offline   Reply With Quote
Old 01-23-2013, 02:07 PM   #9
Registered User

Join Date: May 2010
Location: UK
Posts: 874
Big thanks to all who contributed some info.

Am fairly sure the kit is all M030 bar the one newer damper which is probably.

Now just have to decide what to do about that!
__________________
Manual '00 3.2 S Arctic Silver
pothole is offline   Reply With Quote
Old 02-04-2013, 03:23 PM   #10
Registered User

zapna's Avatar

Join Date: Mar 2012
Location: Chapel Hill, NC
Posts: 23
Garage
I just purchased the ROW M030 set from Suncoast and here is a picture of the set:

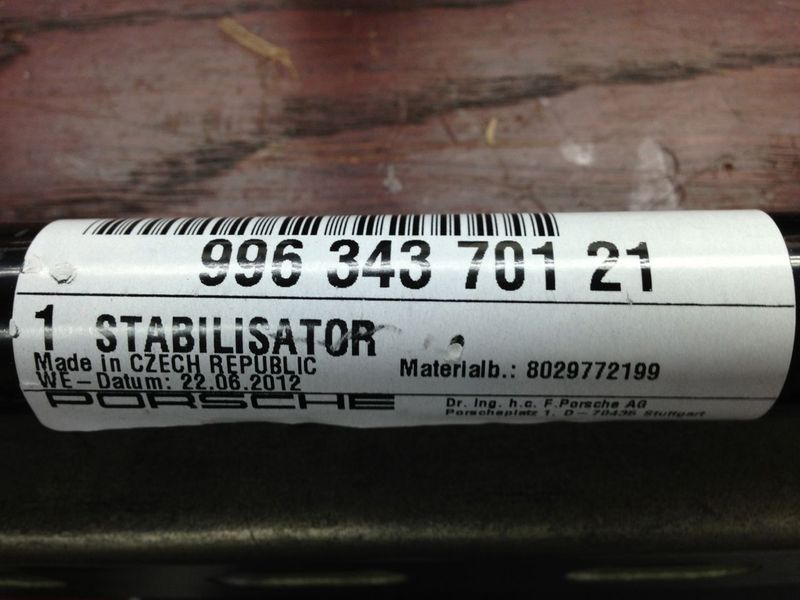

Here are shots of the labels that I took off of the spring and strut packaging:

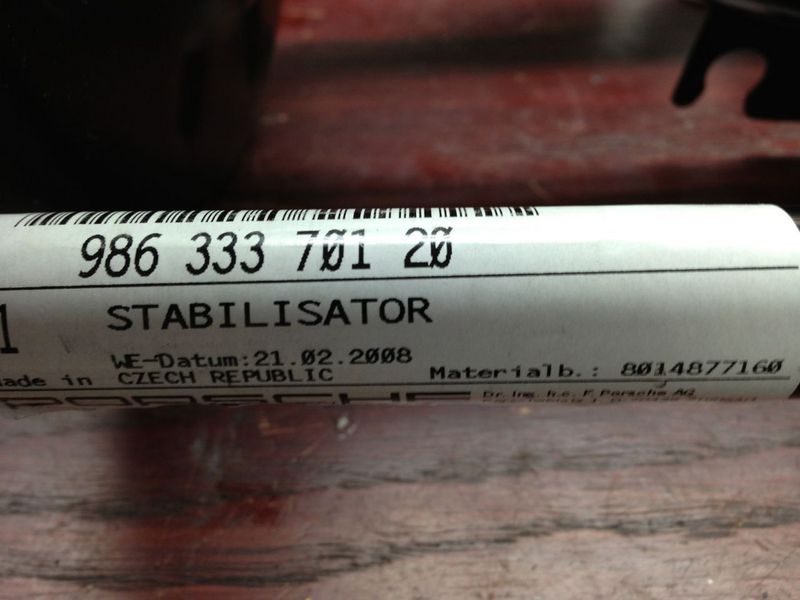

And the sway bar labels:
