Requesting help for my power tilt seat

Hey all.

I purchased my first boxster about 2 months ago, and have spent a lot of time going through it. One thing I have known from the beginning is that the power seat tilt on the passenger side does not work. Today i pulled the seat (holy carpet stains batman) to take a look. Need some help with whats going on. My car has manual slide, piston elevation, and power tilt with no seat heaters. It is a 2001 S.

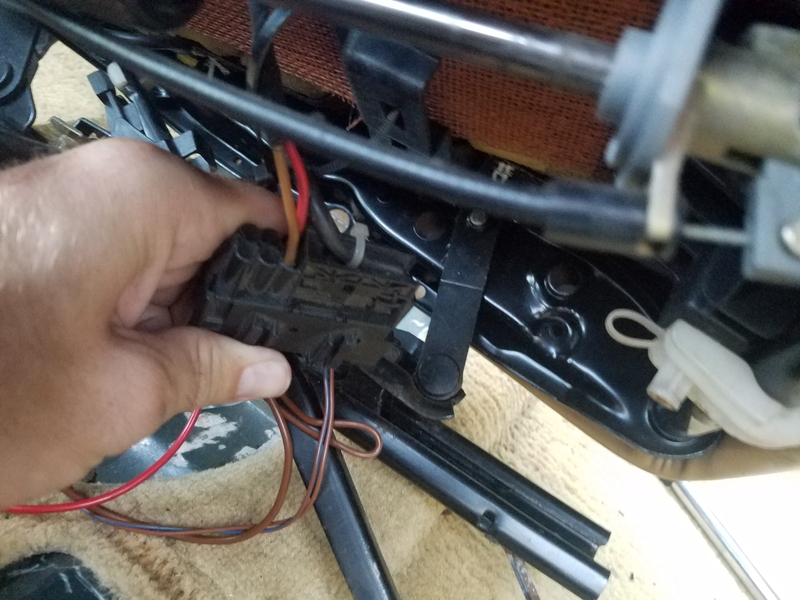

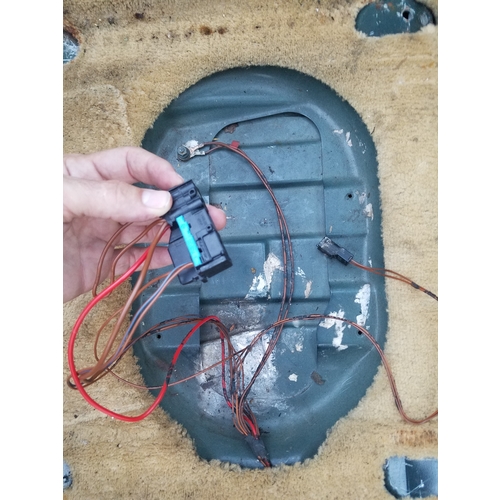

When I pulled the seat i noticed this lone female plug on the right was completely unattached to anything
Name:  20160723_202838.jpg
Views: 383
Size:  193.8 KB

Name:  20160723_202449.jpg
Views: 347
Size:  334.2 KB

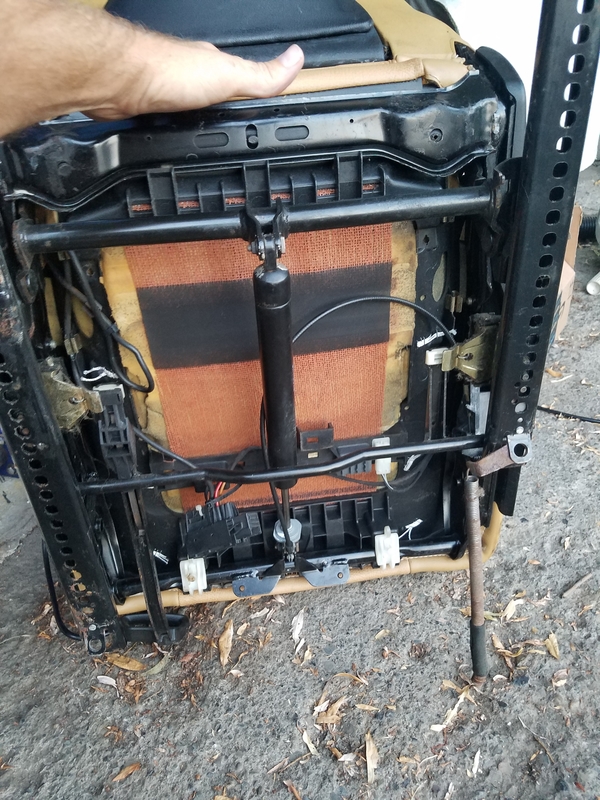

here's the bottom of the seat, should there be a motor visibile? I've seen other with a visible 12v motyors, but could have been power sliding
Name:  20160723_203023.jpg
Views: 344
Size:  444.8 KB

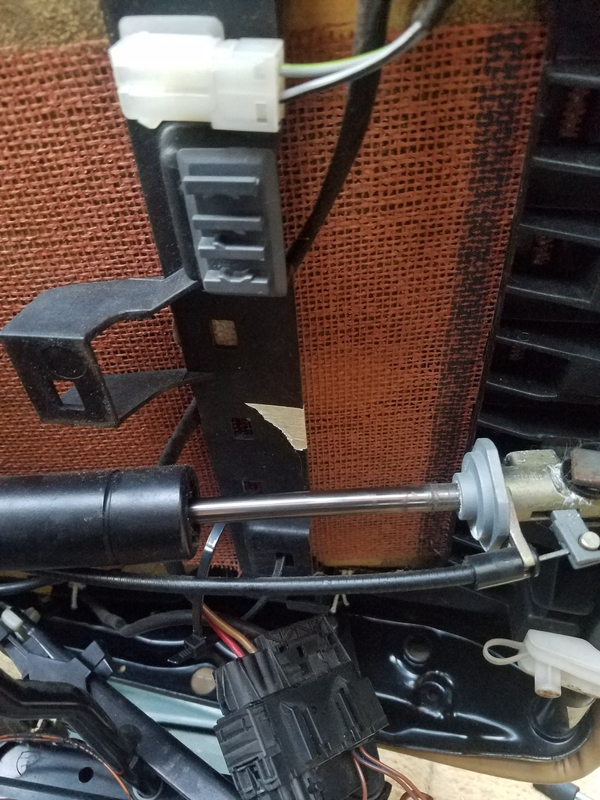

Under the seat there is also white female connector that had nothing in it, heated seat?

Name:  20160723_202312.jpg
Views: 380
Size:  285.4 KB

Name:  20160723_202306.jpg
Views: 319
Size:  329.0 KB

Sorry thins is confusing, the photo posting formatting is archaic and awful

orangeman is offline   Reply With Quote
Old 07-23-2016, 06:08 PM   #2
Registered User

Join Date: May 2016
Location: 13215
Posts: 37

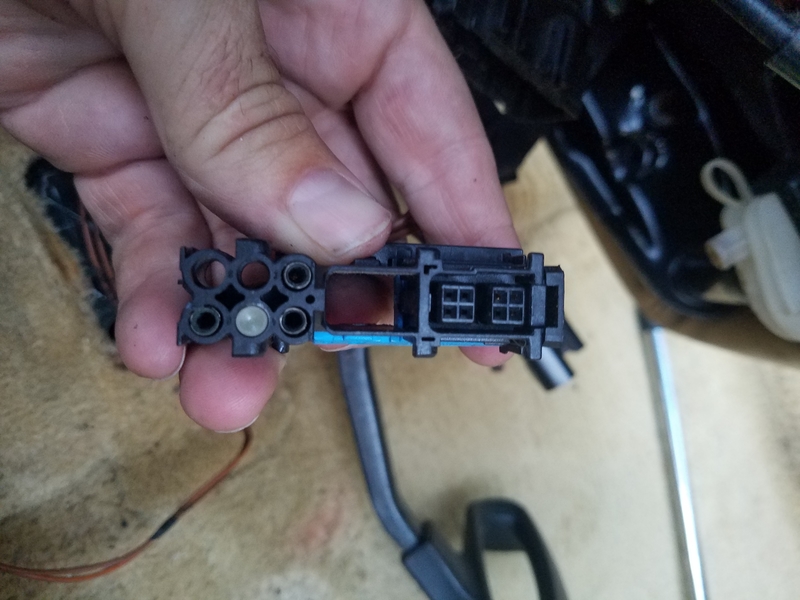

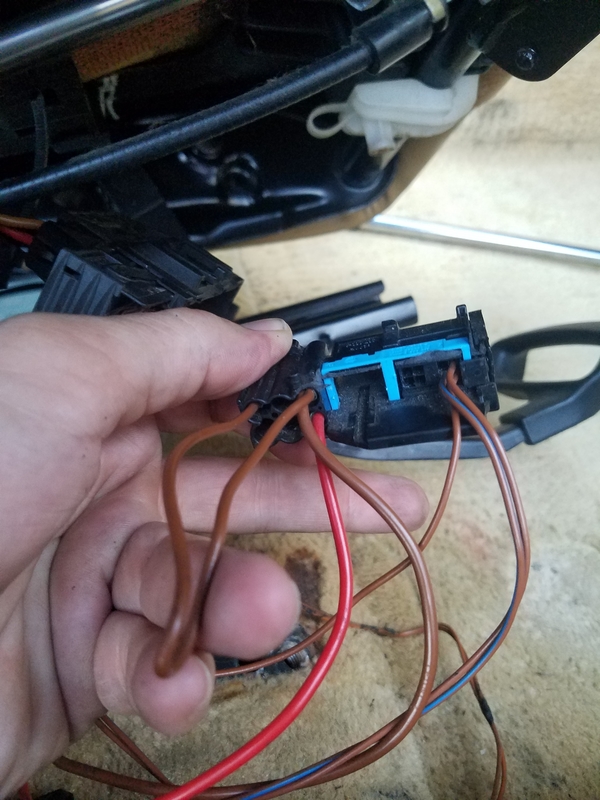

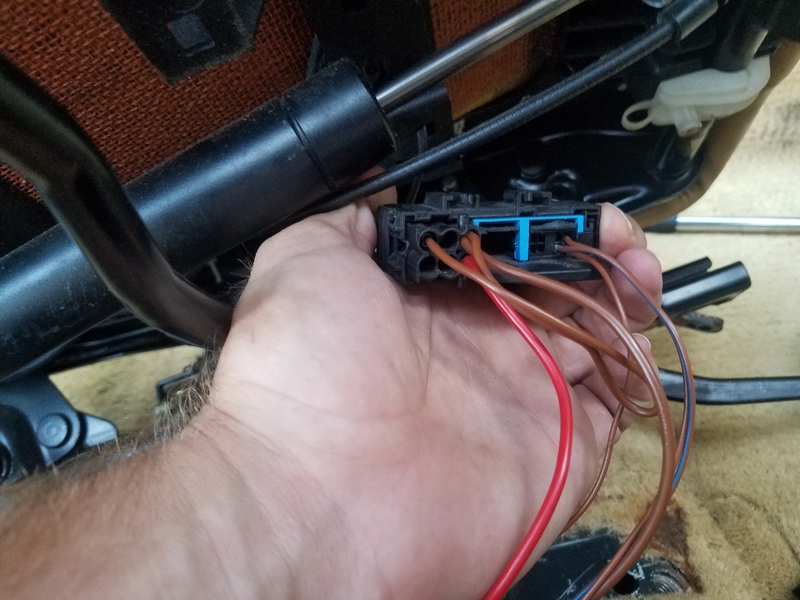

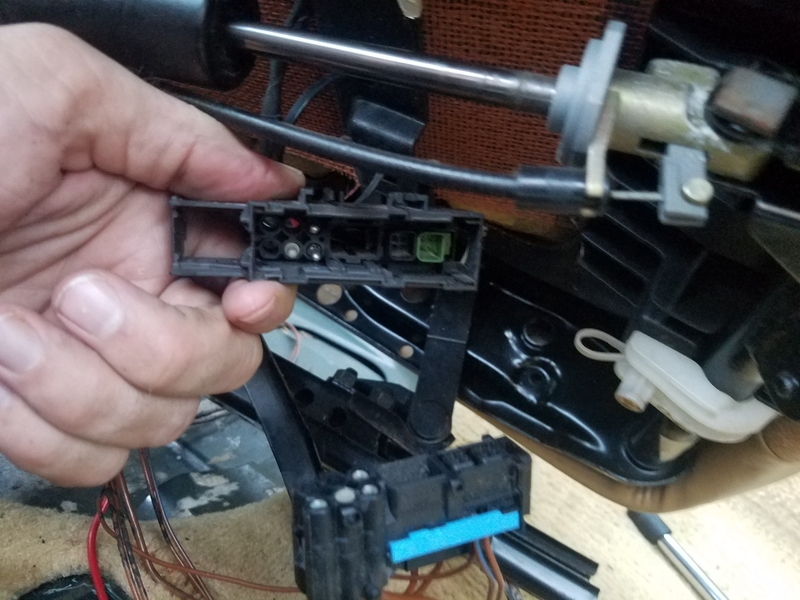

Name:  20160723_202152.jpg
Views: 257
Size:  395.0 KB

Name:  20160723_202050.jpg
Views: 352
Size:  337.2 KB

Name:  20160723_202027.jpg
Views: 370
Size:  333.8 KB

Name:  20160723_202018.jpg
Views: 332
Size:  330.0 KB
orangeman is offline   Reply With Quote
Old 07-23-2016, 06:10 PM   #3
Registered User

Join Date: May 2016
Location: 13215
Posts: 37
My next step was going to be to try to supply the seat with 12 volts somehow and see if the motors work, also to mutimeter the flow into the seat connector for voltage.

Am I missing anything else?
orangeman is offline   Reply With Quote
Old 07-23-2016, 06:25 PM   #4
Registered User

911monty's Avatar

Join Date: Oct 2014
Location: California Central Coast
Posts: 1,274
Garage
Well call it just for the experience. The tilt function failing is fairly common. Thankfully it is normally an easy fix. What usually happens is the contacts in the recline switch corrode/burn from arcing when making contact. What you can do first is clean the switch contacts with electric contact cleaner. The tilt adjust lever is a snap on piece. You can pry it off with something thin, and it will pop off. You will then see a small white pin, this is the actuator for the switch. Take the contact cleaner and spray into the switch to clean the contacts behind. Hopefully this will fix it. The loose plug is airbag disable for a child car seat. Let us know if this works for you. Have fun rasslin that seat.

edit: Make sure the white switch fits into the center receptacle on the lever when you pop it back on or you will break it or the switch will only function in one direction.

edit 2: The search button can save a lot of unnecessary labor! and expense such as if you turned on the ignition with the seat out you will now have an airbag light which will have to be switched off by a Porsche specific tool.

Last edited by 911monty; 07-23-2016 at 06:35 PM.
911monty is offline   Reply With Quote
Old 07-23-2016, 06:29 PM   #5
Registered User

Steve Tinker's Avatar

Join Date: Dec 2008
Location: Queensland, Australia
Posts: 1,522
If monty's explanation doesn't work out, why don't you pull out the drivers seat (which I assume has a working tilt function) and compare both seat electrical connections? Its probably easier to do that than second guess what some previous owner has done or not done to the passenger seat wiring.
__________________
2001 Boxster S (triple black). Sleeping easier with LN Engineering/Flat 6 IMS upgrade, low temp thermostat & underspeed pulley.
2001 MV Agusta F4.
Steve Tinker is offline   Reply With Quote
Old 07-23-2016, 06:39 PM   #6
Registered User

911monty's Avatar

Join Date: Oct 2014
Location: California Central Coast
Posts: 1,274
Garage
Quote:
Originally Posted by Steve Tinker View Post
If monty's explanation doesn't work out, why don't you pull out the drivers seat (which I assume has a working tilt function) and compare both seat electrical connections? Its probably easier to do that than second guess what some previous owner has done or not done to the passenger seat wiring.
I just rewired a driver seat plug and his is correct. The left side with coding pin is power to the recline. Center is for optional equipment. The small blank black plug is a spacer, and the green plug is for the seat belt.
911monty is offline   Reply With Quote
Old 07-23-2016, 06:58 PM   #7
Registered User

911monty's Avatar

Join Date: Oct 2014
Location: California Central Coast
Posts: 1,274
Garage
Images are blurry but worth 1000 words. This is driver side. driver seat belt receptacle has blue plug.




Back of plug.

Last edited by 911monty; 07-23-2016 at 07:04 PM.
911monty is offline   Reply With Quote
Old 07-23-2016, 07:09 PM   #8
Registered User

Join Date: May 2016
Location: 13215
Posts: 37
Quote:
Originally Posted by Steve Tinker View Post
why don't you pull out the drivers seat (which I assume has a working tilt function) and compare both seat electrical connections? Its probably easier to do that than second guess what some previous owner has done or not done to the passenger seat wiring.
lol... dammit

Thanks, will try this, looks like my connections are corret, probably just dirty ewitch
orangeman is offline   Reply With Quote
Old 07-23-2016, 07:35 PM   #9
Registered User

911monty's Avatar

Join Date: Oct 2014
Location: California Central Coast
Posts: 1,274
Garage
Orangeman Don't know but if seat is still out you can test the motor by supplying 12 volts to the 2 pins by the coding pin. Supply 12v+ to one and 12v- to the other. Then switch polarity to reverse. It is important to not run motors in one direction too far as the track operates on some infinity loop. If you go too far either direction the Seat back release will not work.
911monty is offline   Reply With Quote
Old 07-24-2016, 10:34 AM   #10
Registered User

Join Date: May 2016
Location: 13215
Posts: 37
OK, can someone tell me what this top white connector does?

Passenger side (non-functioning)

Name:  20160723_202152.jpg
Views: 303
Size:  395.0 KB

Nothing plugs into it on my passenger seat, but on my driver's seat, it has something plugged into it that runs back to the back of the seat, right where i would imagine an an electric tilt motor would go...

Driver's side (functioning)

Name:  20160724_132602 (1).jpg
Views: 301
Size:  306.0 KB

All other connections look the same
orangeman is offline   Reply With Quote
Old 07-24-2016, 10:47 AM   #11
Custom User Title Here

particlewave's Avatar

Join Date: Mar 2012
Location: WA
Posts: 5,984
Garage
Maybe this will help...

http://986forum.com/forums/general-discussions/56530-986-parts-katalog-usa.html
particlewave is offline   Reply With Quote
Old 07-24-2016, 10:57 AM   #12
Registered User

KevinH1990's Avatar

Join Date: Feb 2006
Location: Virginia
Posts: 1,368
The white connector is from the control switch on the side of the seat that controls the operation of the backrest.

Here's link to information I compiled while I worked on some seat upgrades. Upgrading Two-Way Power Seats - Rennlist Discussion Forums

I have a project that I'm doing for work right now, so I cannot spare much time. I'll be finished with the project by tomorrow night. If you are still having a problem then let me know.
__________________
2000 Arctic Silver/Black, Hard Top, On Board Computer
PNP Rear Speakers, HAES 6-channel amp, Avic Z140BH,
Painted Bumperettes, 2004 (OEM) Top and Frame
Homelink transmitter integrated in dash with Targa switch
Carrera Gauge Cluster with silver gauge faces, heated seats, litronics, painted console
KevinH1990 is offline   Reply With Quote
Old 07-24-2016, 11:18 AM   #13
Registered User

Join Date: May 2016
Location: 13215
Posts: 37
Thanks Kevin.

Well, I guess we have our answer. I don't know why there isn't a lead to plug into that connector, but I guess I'll have to take the seat apart to find out.

Also, haha, I just realized I could have just unplugged the other side to see what it does. Live and learn
orangeman is offline   Reply With Quote
Old 07-26-2016, 12:11 AM   #14
Registered User

Join Date: Jul 2016
Location: Minnesnowta
Posts: 90
The rear seat motor is inside the back of the seat. It's vertical and small. The plug coming from it is white.
FauxDiablo is offline   Reply With Quote
Old 07-26-2016, 03:44 AM   #15
Registered User

KevinH1990's Avatar

Join Date: Feb 2006
Location: Virginia
Posts: 1,368
I'll post a picture of a seat motor tonight.
__________________
2000 Arctic Silver/Black, Hard Top, On Board Computer
PNP Rear Speakers, HAES 6-channel amp, Avic Z140BH,
Painted Bumperettes, 2004 (OEM) Top and Frame
Homelink transmitter integrated in dash with Targa switch
Carrera Gauge Cluster with silver gauge faces, heated seats, litronics, painted console
KevinH1990 is offline   Reply With Quote
Old 07-26-2016, 03:50 AM   #16
Registered User

mikesz's Avatar

Join Date: Feb 2013
Location: Cranston RI
Posts: 859
Garage
I had similar problem with my car. Wound up taking both seats out and replacing the motors in the seat backs and switches. 996 seat motors work in our cars. Mine is a 99.

__________________
99 Porsche Boxster
mikesz is offline   Reply With Quote
