Anyone?

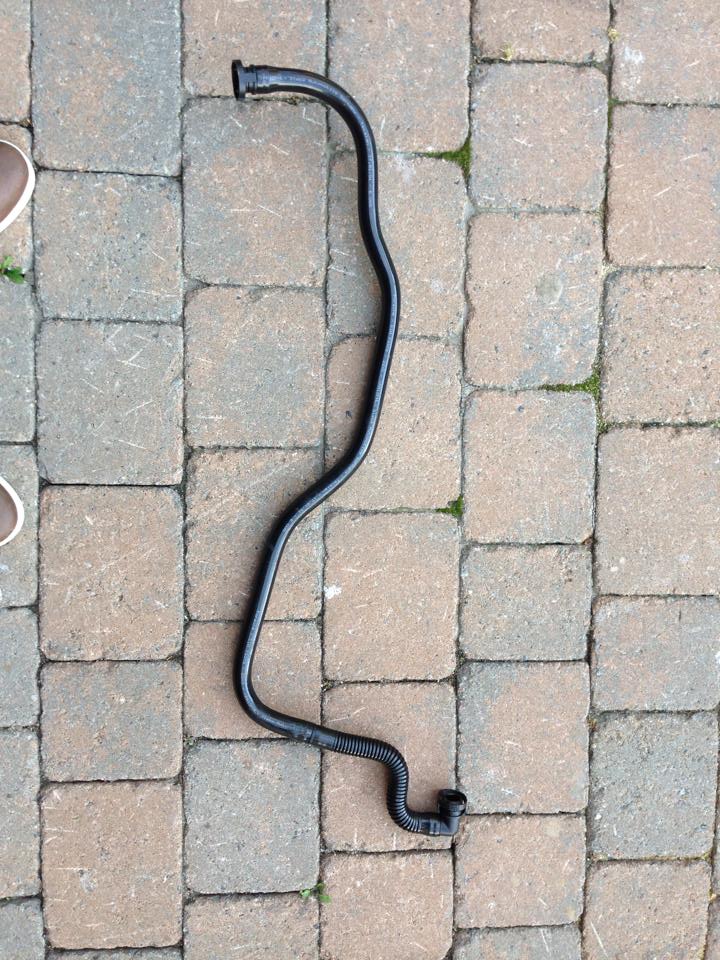

Does any one have diagrams or pictures of what plugs into and out of the AOS?

Also could anyone tell me exactly where this tube goes?

Thanks a lot ladies and gents.




RoadsideStig is offline   Reply With Quote
Old 10-10-2013, 03:33 PM   #2
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,926
the pipe runs from the front, driver side, of the engine across to the bottom of the aos on the other side of the engine. it weaves through the driver side intake manifold in the process and is a general pain in the arse to work with and around.

the aos vents both sides of the engine; this pipe accesses one side and the aos bolts over the access on the other. the aos outputs to a pipe that vents to the intake plenum after the throttle body.
The Radium King is offline   Reply With Quote
Old 10-10-2013, 03:39 PM   #3
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,926
Crankcase Bleeding
The Radium King is offline   Reply With Quote
Old 10-10-2013, 03:45 PM   #4
Registered User

The Radium King's Avatar

Join Date: Apr 2010
Location: Canada
Posts: 2,926
you can see the other end in this image (the plastic flex pipe above the ac compressor):

http://image.europeancarweb.com/f/projectcars/10511615+w799+h499+cr1+ar0/epcp_0808_03_z%2Bporsche_boxster_engine%2Bside_vie w.jpg
The Radium King is offline   Reply With Quote
Old 10-11-2013, 05:20 AM   #5
pjq
Registered User

Join Date: Dec 2010
Location: Eastern canada
Posts: 262

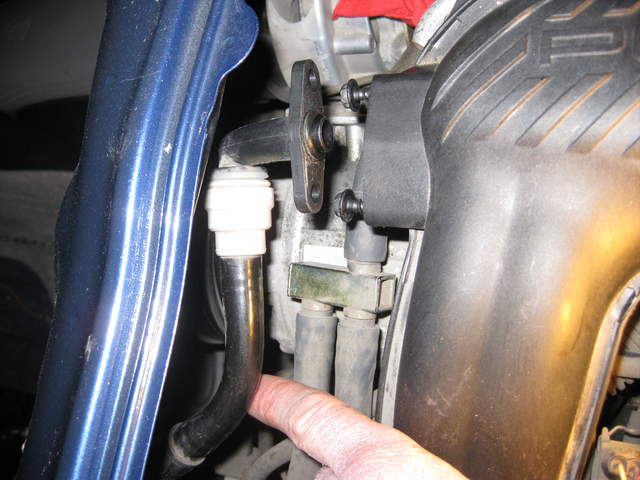

Stig, what year is your Boxster? Mine is a 04 S this is my AOS and piping to it.
That pipe you show reminds me of something on the rear fire wall behind the drivers seat? I'll see if I have that view. Did you remove your engine?

pjq is offline   Reply With Quote
Old 10-11-2013, 05:48 AM   #6
pjq
Registered User

Join Date: Dec 2010
Location: Eastern canada
Posts: 262
Is that possibly your brake booster vacum line that attaches at the front of the left (drivers side) intake manifold?
In my pic I unscrewed it at the flange instead of using the proper disconnect coupling, PITA.

pjq is offline   Reply With Quote
Old 10-11-2013, 11:51 AM   #7
Registered User

Join Date: Dec 2009
Location: Toronto, Canada
Posts: 190
The Radium King is correct. It is the lower hose for the AOS. You can see it in post 5 at the bottom right of the AOS
brian325is is offline   Reply With Quote
Old 10-11-2013, 01:17 PM   #8
pjq
Registered User

Join Date: Dec 2010
Location: Eastern canada
Posts: 262
On my car the AOS feed from the opposite head is a complete ribbed flexible tube, attaching at the bottom side of the AOS, earlier models may be different.

pjq is offline   Reply With Quote
Old 10-11-2013, 04:40 PM   #9
Registered User

Join Date: Dec 2009
Location: Toronto, Canada
Posts: 190
If you check out the part numbers in post 3, there are 4 different part numbers for this pipe depending on the year of vehicle
