Have a good lunch.

http://986forum.com/forums/uploads01...1344981255.jpg

Move seats forword.

Looking really good. Did your flywheel pass the twist test or is it shot? I know its pricey but a good time to replace it now.

Going to be anxious to see how your bearing looks when you get it out. Take your time and triple check you have everything locked down, and for what its worth, loosen all three of your cam chain tensioners. It really does make a big deal.

Waiting to see your next installment!

http://986forum.com/forums/uploads01...1344981384.jpg

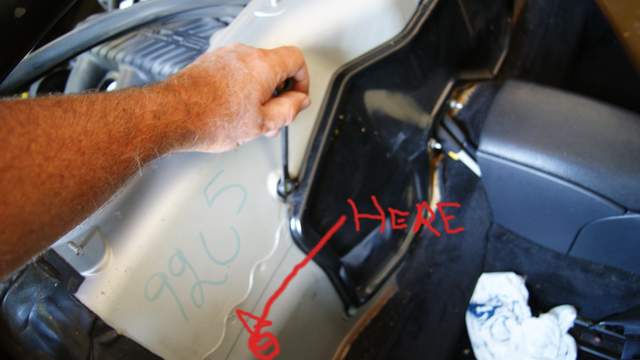

Remove front engine access.

Its shot checking prices now.

http://986forum.com/forums/uploads01...1344982154.jpg

Cleaned up for the day and have gone car shopping. :dance:

http://986forum.com/forums/uploads01...1345061772.jpg

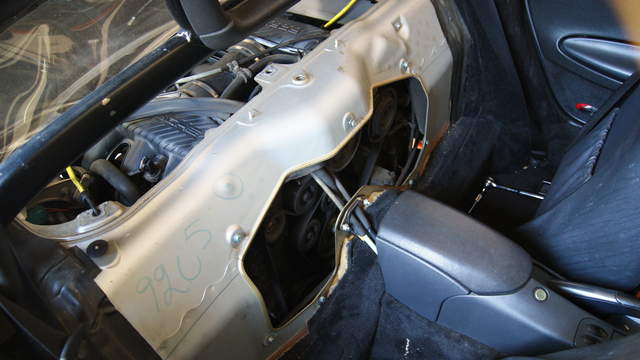

Access to front of engine.

http://986forum.com/forums/uploads01...1345061946.jpg

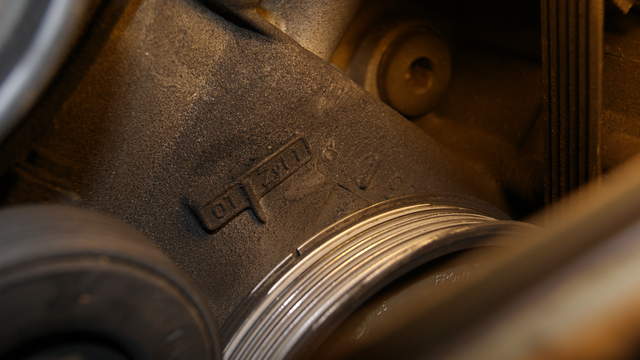

Rotate motor clockwise until tdc lines up on the main pulley.

http://986forum.com/forums/uploads01...1345062167.jpg

http://986forum.com/forums/uploads01...1345062480.jpg

Split apart pulley lock so that it will clear the power top motor shroud and insert into teardrop shaped hole on pulley.


http://986forum.com/forums/uploads01...1345062682.jpg


Reattach red handle.

]http://986forum.com/forums/uploads01/here1345063788.jpg


On bank one (the passenger side on USA cars) pulls the green plug on flywheel end of engine.


http://986forum.com/forums/uploads01...1345063068.jpg

http://986forum.com/forums/uploads01...1345063975.jpg

If notch is pointing away from motor, according to my manual you are NOT at TDC.

http://986forum.com/forums/uploads01...1345064456.jpg

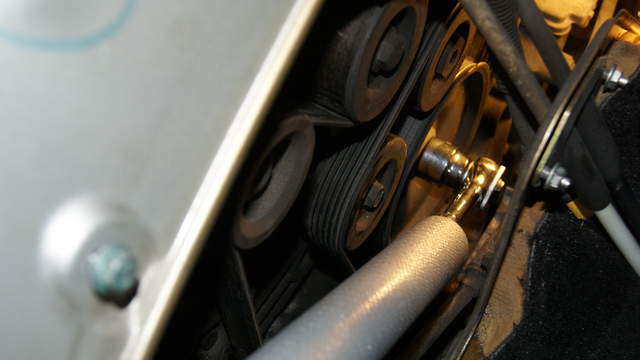

Must undo pulley lock and rotate engine clockwise 360 deg.

http://986forum.com/forums/uploads01...1345064605.jpg

http://986forum.com/forums/uploads01...1345064710.jpg

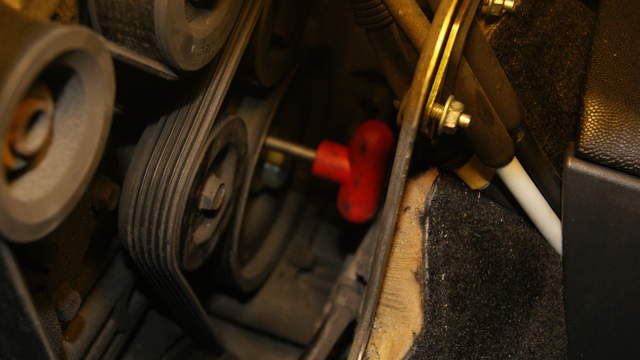

Put tool back into the teardrop hole.

http://986forum.com/forums/uploads01...1345064932.jpg

Now the notch on the cam is pointing inward.

http://986forum.com/forums/uploads01...1345065681.jpg

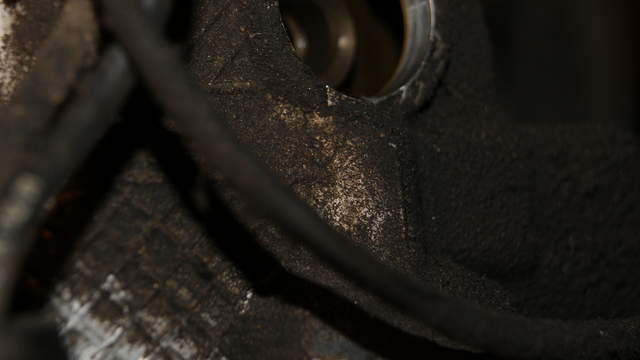

Notch is pointing inward on bank one, you are at top dead center,

http://986forum.com/forums/uploads01...1345065866.jpg

http://986forum.com/forums/uploads01...1345065956.jpg

On the 5 chain engine you only have to pull the bottom green plugs

http://986forum.com/forums/uploads01...1345066092.jpg

http://986forum.com/forums/uploads01...1345066282.jpg

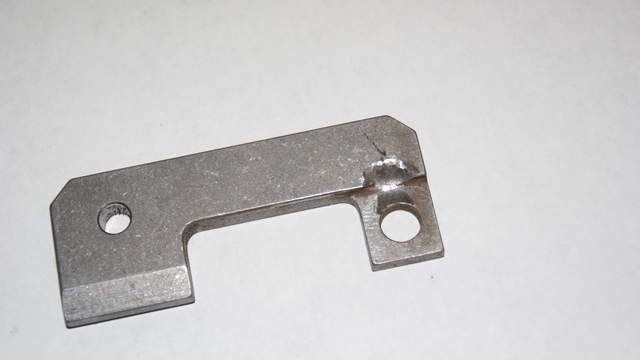

On 5 chain motor use the sort cam lock, mine I had to notch with dremel to clear engine flange.

http://986forum.com/forums/uploads01...1345066501.jpg

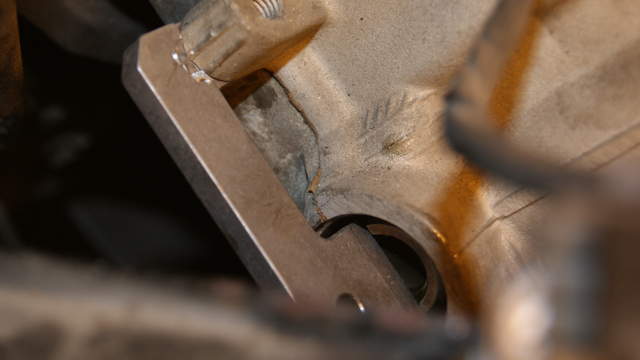

Lock onto cam.

I am going to order one more cam lock for bank one.

http://986forum.com/forums/uploads01...1345066755.jpg

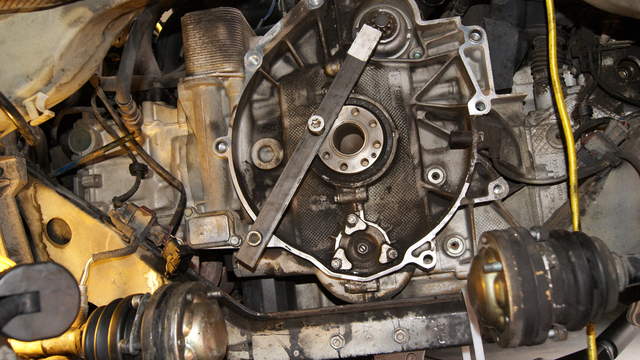

Cut 12" flat stock, drill two holes, lock down flywheel.

http://986forum.com/forums/uploads01...1345066890.jpg

Is it necessary to lock the crank at the rear of the engine if you've already pinned the crank at the front? Just wondering.

It is cheap insurance that nothing moves. I did it on mine and nothing moved.

http://986forum.com/forums/uploads01...1347566710.jpg

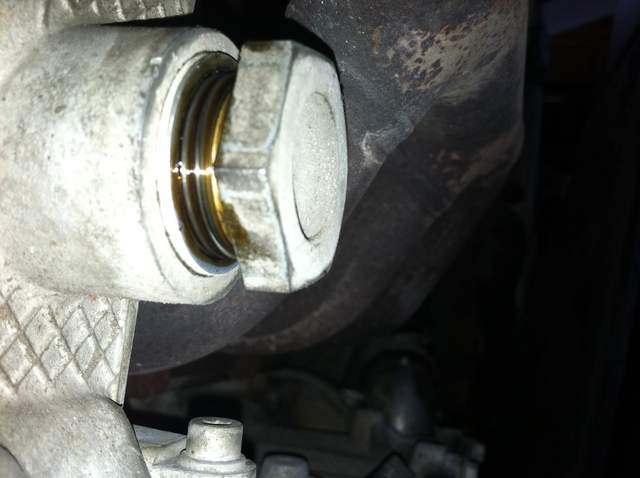

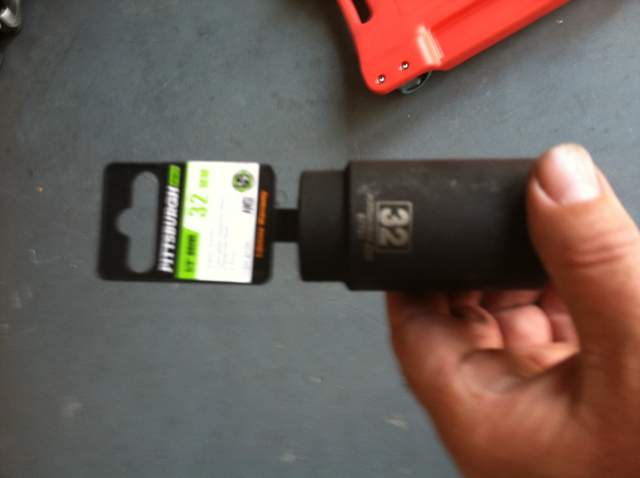

Take 32 mm socket and remove the two front chain tensioner.

http://986forum.com/forums/uploads01...1347567074.jpg

This part is were some confusion comes in. I have developt a hybrid of Pelicans Parts and LN engineering instructions.

http://986forum.com/forums/uploads01...1347567434.jpg

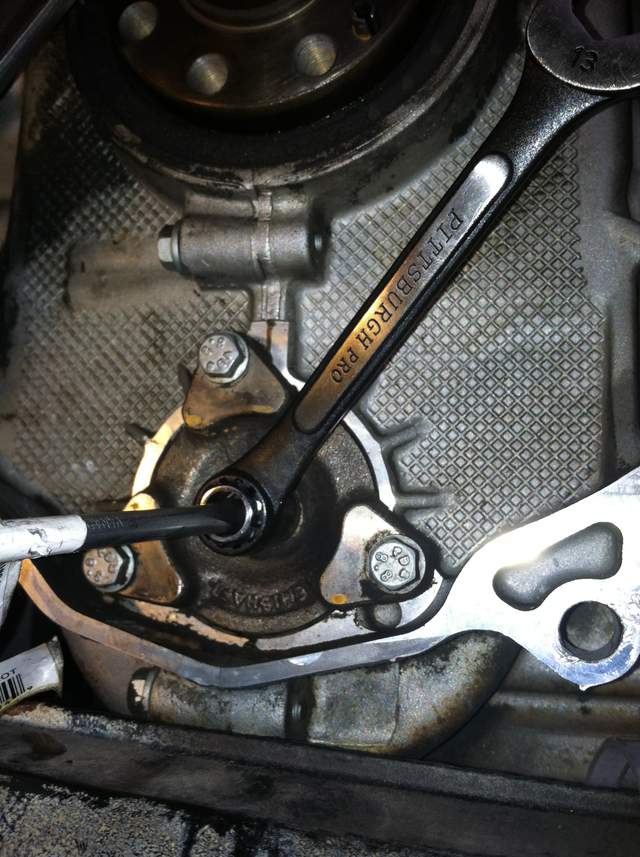

Remove nut on bearing shaft.

http://986forum.com/forums/uploads01...1347567645.jpg

Remove flange bolts.

http://986forum.com/forums/uploads01...1347567789.jpg


Twist flange so you can get behind it with a pry bar.

http://986forum.com/forums/uploads01...1347568001.jpg

Pull out, have catch pan for the extra oil.

http://986forum.com/forums/uploads01...1347568114.jpg

Do not use the set screws that come with Pelican Kit. Follow the LN instructions and keep everything at top dead center. The ims may shift off center, but that is ok.

http://986forum.com/forums/uploads01...1347568595.jpg

Attach puller, on dual row bearings no c clip to undo.

http://986forum.com/forums/uploads01...1347568758.jpg


http://986forum.com/forums/uploads01...1347568817.jpg

http://986forum.com/forums/uploads01...1347568920.jpg

Old bearing is in good shape for 130,000 miles. Some galling on the outer race but not out of round.

http://986forum.com/forums/uploads01...1347569169.jpg

Freeze bearing with driver overnight.

http://986forum.com/forums/uploads01...1347569302.jpg

Drive bearing in with rubber hammer.

http://986forum.com/forums/uploads01...1347569423.jpg

On duel row put in Spacer and clip.

http://986forum.com/forums/uploads01...1347569590.jpg

Clean flange and install inner spacer and o ring with some sealant.

http://986forum.com/forums/uploads01...1347569760.jpg

Use the bolts that come in the pelican kit to drive the cover on. This is were some trouble can come in. You have to wiggle with pry bars the flange cover to line the three bolt holes up. Be careful not to cross tread the screw holes.

Was your bearing filled with oil? If so, it was in the beginning of failure and you caught a problem.

Going to take the gasket off and check, the bearing has been leaking oil so I believe it was full.

http://986forum.com/forums/uploads01...1347575563.jpg

Once flange is in remove the driver bolts one at a time and install new Porsche bolts. Torque at 8 foot pounds.

http://986forum.com/forums/uploads01...1347575827.jpg

Install center nut with O ring and short spacer with some sealant and removable loctite. With the new Pelican center shaft it torque to 24 foot pounds.

http://986forum.com/forums/uploads01...1347576332.jpg

:cheers:

http://986forum.com/forums/uploads01...1354052868.jpg

Started to replace the IMS bearing on July 22, finished it two week ago. On the way to get my state inspection the check engine light comes on (of course). Replaced an O2 sensor on Sunday and it passed inspection today. Had the car washed, now I'm back on the road.

I feel now that I can install the ims bearing, start to finish, in two full days of work. :cheers:

Don't forget the RMS


No mention of RMS replacement, though I assume you did it. Just a note, for anyone doing the job. RMS is about $10 (?) and takes 10 minutes to replace while you're in there.
Great writeup, thanks!

Pelican part IMS bearing kit is holding at 500 mile, I drive my car hard and there is no cam variation or oil leaks.

Thank you Wayne for your kit,

Kashmir
